Brokerband
UPC:
766907026535
UNSPSC:
44111511
MFG:
LDM163-182

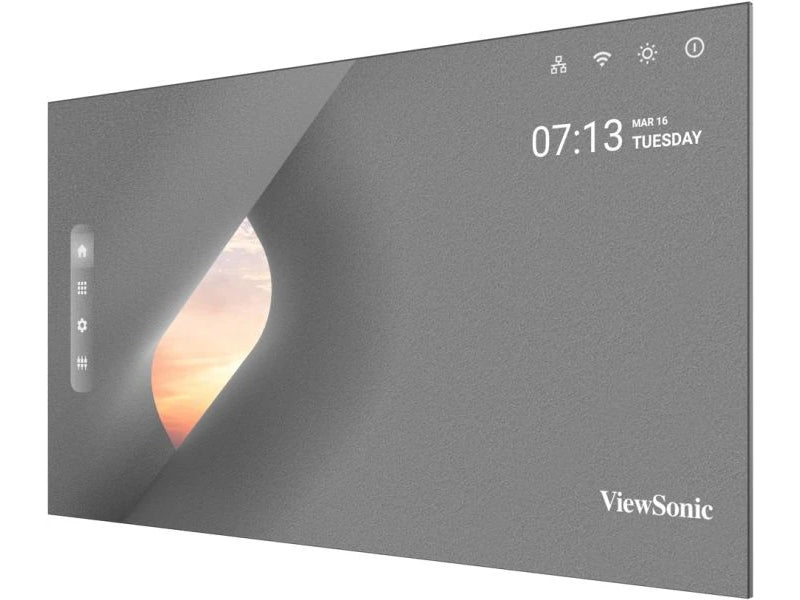

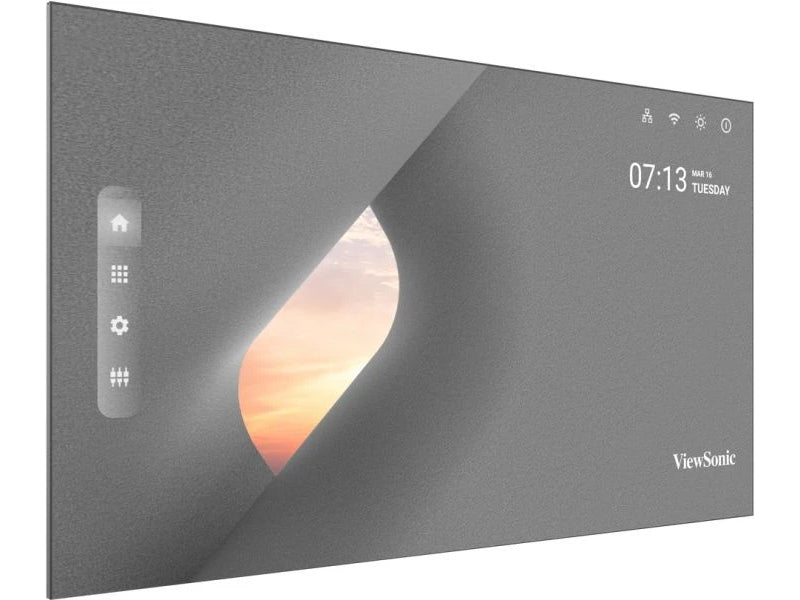

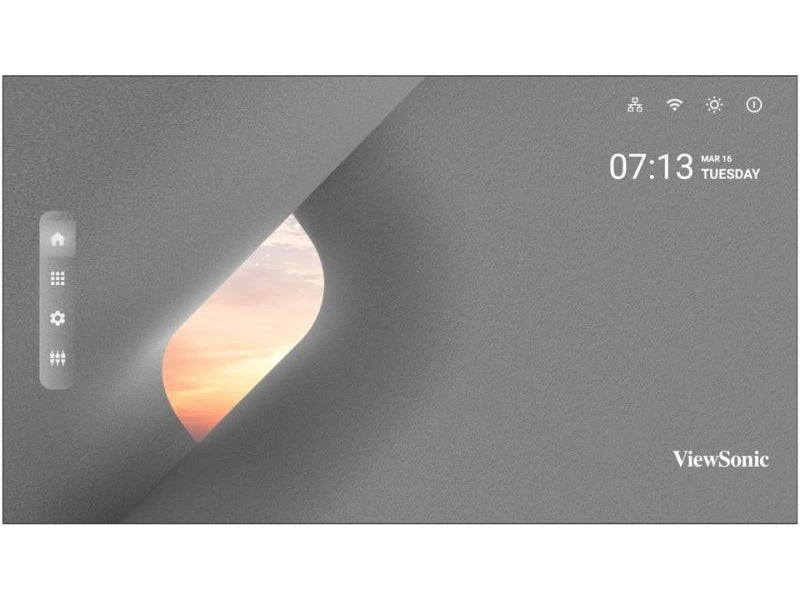

VIEWSONIC 163IN ALL-IN-ONE DIRECT VIEW LED DISPLAY, 1920X1080 RESOLUTION.
39 in stock, ready to ship
LDM163-182 - LED Display - Flat - 1920 x 1080 - 163Inch - 1.875Mm - 6500:1 - 600 nits (100 levels adjustable) - 170/170 - 16:9 - HDMI,RJ-45 - Display Area (mm): 3600 (H) 2025 (V) - LED Package Type: SMD 3 in 1 (GOB) - Bonding Wire: Copper - Orientation: Landscape
Product Specifications
| Primary Information | |
|---|---|
| Model | LDM163-182 |
| Display Type | LED Display |
| Display Format | FHD |
| Display Technology | Direct View LED |
| Flat / Curved | Flat |
| Max Resolution | 1920 x 1080 |
| Display Diagonal Size | 163 Inch |
| Dot Pitch / Pixel Pitch | 1.875 Mm |
| Image Contrast Ratio | 6500:1 |
| Brightness | 600 nits (100 levels adjustable) |
| Viewing Angle | 170/170 |
| Image Aspect Ratio | 16:9 |
| Network Connectivity | Wi-Fi |
| Audio Output | Audio out |
| Speakers | 2 x 30W |
| Interfaces | HDMI x 4 (HDMI 2.0/HDCP 2.2)(internal x3, external x1), USB Type A x 3 (USB3.0 x1, USB2.0 x2), RJ45 Input (Internet) x 3 (internet x2, control x1), IR in (3.5mm) x 1, Wi-Fi Input x 2.4G/5G Hz, USB Type C x 1 (data only), HDMI out x 1 (HDMI 1.4/HDCP 1.4), (internal x1), Audio out (3.5mm) x 2, S/PDIF x 1, USB Type A (Power) x Shared with USB A input, (USB 3.0 5V/0.9A x1, USB 2.0 5V/0.5A x1, USB 2.0 5V/2A x1), USB Type C (Power) x Shared with USB Type C input (5V/1A x1) |
| Video Interfaces | HDMI |
| HDMI Ports Qty | 5 |
| Power Consumption Operational | 919 Watt |
| Power / Voltage Required | 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz (vary by country) |
| Width | 142.2 Inch |
| Depth | 1.2 Inch |
| Height | 85.47 Inch |
| Weight | 227 Kg |
| Features | 163" seamless large screen with high brightness and powerful speakers; All-in-One integration for effortless installation; Anti-collision, dustproof, and moisture-proof with GOB surface treatment; Detachable system control box for a minimalist appearance and easy access; Premium aesthetics with an ultra-slim and bezel-free design; Capable of PIP/PBP display, wireless casting, and LAN control |
| Min Operating Temperature | 0 degree Celsius |
| Max Operating Temperature | 40 degrees Celsius |
| Display | |
| Brightness | 600 nits (100 levels adjustable) |
| Display Diagonal Size | 163 Inch |
| Display Type | LED Display |
| Dot Pitch / Pixel Pitch | 1.875 Mm |
| Flat / Curved | Flat |
| Image Aspect Ratio | 16:9 |
| Power | |
| Power / Voltage Required | 100-120V/30A ~ 50/60Hz or 220-240V/15A ~ 50Hz (vary by country) |
| Power Consumption Operational | 919 Watt |
| Special Feature | |
| COO | CHINA |
| UNSPSC Code | |
| UNSPSC Code | 44111511 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | Dartmouth,NS | 0 | No Stock |
| 2 | Guelph,ON | 0 | No Stock |
| 3 | Calgary,AB | 0 | No Stock |
| 4 | MFG Drop Shipped | 39 | In Stock |
| 5 | Mississauga,ON | 0 | No Stock |
| 6 | Richmond,BC | 0 | No Stock |
