Warranty:
Three year customer replaceable unit and onsite limited warranty with 9x5 next business day (NBD).
Lenovo
UPC:
9999999999999
MFG:
7D7A1005NA

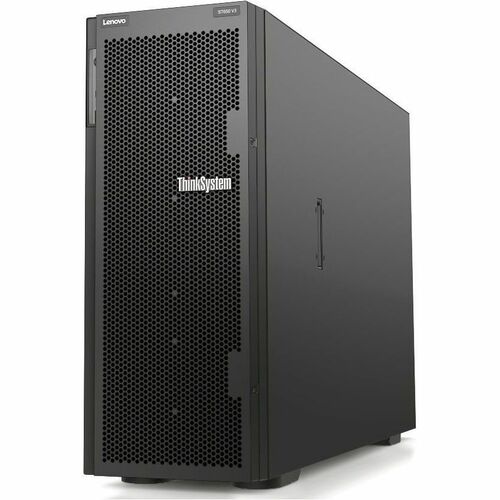

TS ST650 V3 INTEL XEON SILVER 4416+ 20C 2GHZ 165W 32GB 2RX8 NC/NR
1 in stock, ready to ship
TS ST650 V3 INTEL XEON SILVER 4416+ 20C 2GHZ 165W 32GB 2RX8 NC/NR
Product Specifications
| Display & Graphics | |
|---|---|
| Graphics Memory Capacity | 16 MB |
| Graphics Memory Capacity | 16 MB |
| Network & Communication | |
| Ethernet Technology | 10 Gigabit Ethernet |
| Ethernet Technology | 10 Gigabit Ethernet |
| Chipset | |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Chipset Manufacturer | Intel |
| Chipset Model | C741 |
| Controllers | |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| Controller Type | 12Gb/s SAS |
| RAID Supported | Yes |
| Controller Model | 9350-8i |
| Physical Characteristics | |
| Weight (Approximate) | 86.20 lb (39100 g) |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.19" (462 mm) |
| Width | 6.89" (175 mm) |
| Depth | 28.90" (734 mm) |
| Weight (Approximate) | 86.20 lb (39100 g) |
| Form Factor | Tower |
| Rack Height | 4U |
| Height | 18.19" (462 mm) |
| Width | 6.89" (175 mm) |
| Depth | 28.90" (734 mm) |
| I/O Expansions | |
| "Number of External 5.25"" Bays" | 2 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Number of Media Drive Bays | 2 |
| Total Number of Expansion Slots | 9 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to nine PCIe slots, five of which are PCIe 5.0. |
| "Number of External 5.25"" Bays" | 2 |
| "Number of Internal 2.5"" Bays" | 8 |
| Number of Total Expansion Bays | 10 |
| Number of Media Drive Bays | 2 |
| Total Number of Expansion Slots | 9 |
| Hot Swappable Bays | Yes |
| Number of SFF Bays | 8 |
| PCI Express Details | Up to nine PCIe slots, five of which are PCIe 5.0. |

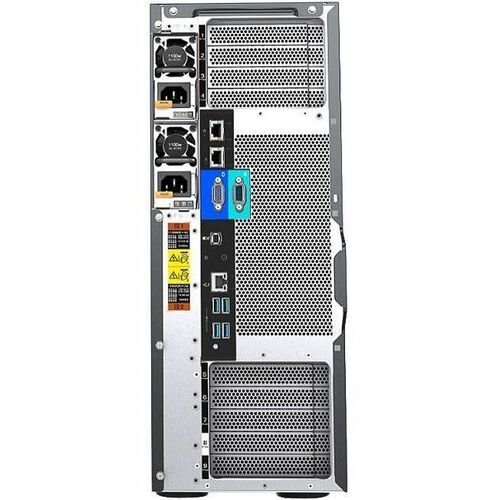

| Interfaces/Ports | |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC Platinum |
| VGA | Yes |
| Number of Network (RJ-45) Ports | 2 |
| Network (RJ-45) | Yes |
| Remote Management | Yes |
| Total Number of USB Ports | 8 |
| Number of USB 2.0 Ports | 1 |
| Number of VGA Ports | 1 |
| Remote Management Controller | XCC Platinum |
| Memory | |
| Error Checking | ECC |
| Maximum Memory Supported | 4 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 32 |
| Error Checking | ECC |
| Maximum Memory Supported | 4 TB |
| Signal Processing | Registered (Buffered) |
| Standard Memory | 32 GB |
| Memory Technology | TruDDR5 |
| Number of Occupied Memory Slots | 1 |
| Memory Clock Speed | 4.80 GHz |
| Total Number of Memory Slots | 32 |
| Operating System | |
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Operating System Supported | Red Hat Enterprise Linux 8.6 |
| Power Description | |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Input Voltage | 230 V AC |
| Power Source | Power Supply |
| Plug/Connector Type | C13 |
| Number of Power Supplies Supported | 2 |
| Number of Power Supplies Installed | 1 |
| Hot Swappable Power Supply | Yes |
| Maximum Power Supply Wattage | 750 W |
| Processor | |
| Cache | 37.50 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4416+ |
| Processor Core | Icosa-core (20 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| Cache | 37.50 MB |
| Processor Speed | 2 GHz |
| Processor Type | Xeon Silver |
| Processor Model | 4416+ |
| Processor Core | Icosa-core (20 Core) |
| Number of Processors Supported | 2 |
| Number of Processors Installed | 1 |
| Processor Generation | 4th Gen |
| General Information | |
| Product Type | Server |
| Manufacturer Part Number | 7D7A1005NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D7A1005NA |
| Product Name | ThinkSystem ST650 V3 7D7A1005NA Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V3 |
| Brand Name | Lenovo |
| Product Type | Server |
| Manufacturer Part Number | 7D7A1005NA |
| Manufacturer Website Address | http://www.lenovo.com |
| Manufacturer | Lenovo Group Limited |
| Product Model | 7D7A1005NA |
| Product Name | ThinkSystem ST650 V3 7D7A1005NA Server |
| Product Line | ThinkSystem |
| Product Series | ST650 V3 |
| Brand Name | Lenovo |
| Miscellaneous | |
| Package Contents | ThinkSystem ST650 V3 7D7A1005NA Server Power Cord |
| Security Features | Power-on password Administrator's password Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Package Contents | ThinkSystem ST650 V3 7D7A1005NA Server Power Cord |
| Security Features | Power-on password Administrator's password Root of Trust module supporting TPM 2.0 and Platform Firmware Resiliency (PFR). |
| Environmentally Friendly | Yes |
| Environmental Certification | GREENGUARD |
| Energy Star | Yes |
| Energy Efficiency Certification | China Energy Conservation Program (CECP) |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | Vancouver | 0 | No Stock |
| 2 | Toronto | 1 | In Stock |
