TRIPP LITE PDU 3-PHS 208V 14.4KW 36C13 6C19 3L6-30R
Out of stock

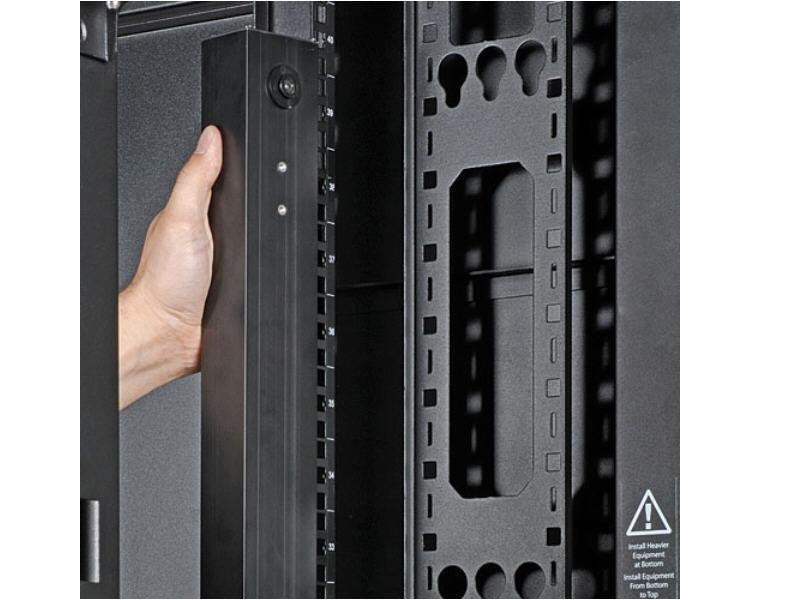

Eaton Tripp Lite Series PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM - Vertical rackmount - power distribution unit (rack-mountable) - AC 208 V - 14.4 kW - 3-phase - input: Hubbell CS8365C - output connectors: 45 - 0U
Product Specifications
| Primary Information | |
|---|---|
| Product Description | Eaton Tripp Lite Series PDU 3-Phase Metered 208V 14.4kW 36 C13; 6 C19; 3 L6-30R 0URM - vertical rackmount - power distribution unit - 14.4 kW |
| Device Type | Power distribution unit - rack-mountable |
| Rack Size | 0U |
| Weight | 14.55 lbs |
| Input Wiring | 3-phase |
| Input Voltage | AC 208 V |
| Output Voltage | AC 208 V |
| Power Capacity | 14.4 kW |
| Input Connectors | 1 x Hubbell CS8365C |

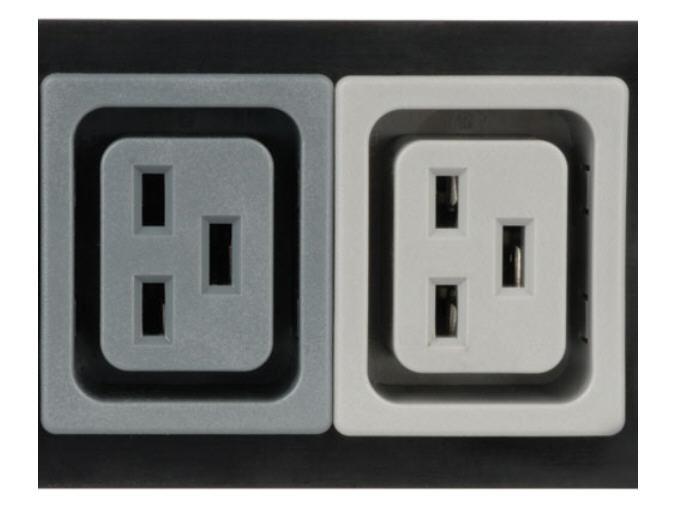

| Output connectors | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 3 x power NEMA L6-30 |
| Included Accessories | Cable retention brackets |
| Dimensions (WxDxH) | 2.6 in x 2.2 in x 70 in |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | Power distribution unit - rack-mountable |
| Height (Rack Units) | 0U |
| Power Device | |
| Input Voltage | AC 208 V |
| Frequency Provided | 60 Hz |
| Input Wiring | 3-phase |
| Input Connectors | 1 x Hubbell CS8365C |
| Power Output Connectors Details | 36 x power IEC 60320 C13 ¦ 6 x power IEC 60320 C19 ¦ 3 x power NEMA L6-30 |
| Output Voltage | AC 208 V 60 Hz |
| Power Capacity | 14.4 kW |
| Circuit Protection | Circuit breaker |
| Miscellaneous | |
| Included Accessories | Cable retention brackets |
| Cables Included | Power cable 6 ft |
| Rack Mounting Kit | Included |

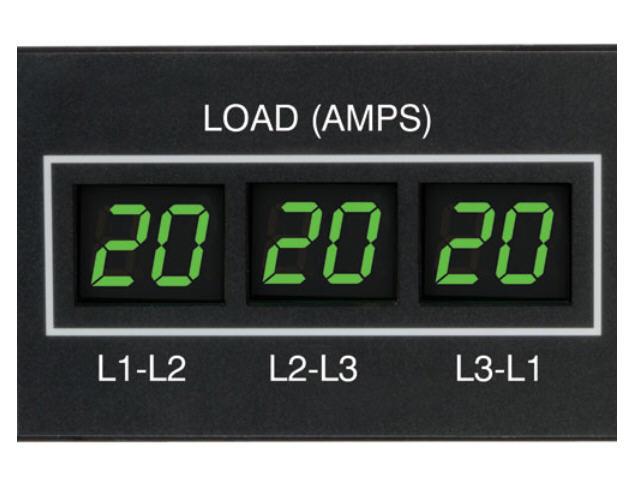

| Features | Current meter, overload protection, vertical orientation |
| Compliant Standards | NOM, RoHS, UL 60950-1 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Humidity Range Operating | 0 - 95% (non-condensing) |
| Dimensions & Weight | |
| Width | 2.6 in |
| Depth | 2.2 in |
| Height | 70 in |
| Weight | 14.55 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 9.5 in |
| Shipping Depth | 5.3 in |
| Shipping Height | 76.8 in |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 39121017 |
