THINKSTATION
UPC:
196380031779
UNSPSC:
43211515
MFG:
30E000MEUS
THINKSTATION P620 AMD RYZEN PRO 5945WX 4.10GHZ 6MB WIN11 PRO 64 32.0GB 1X1TB SSD M.2 2280 PCIE GEN4 TLC OPAL NVIDIA T1000 8GB 3YR PREMIER NBD
Out of stock

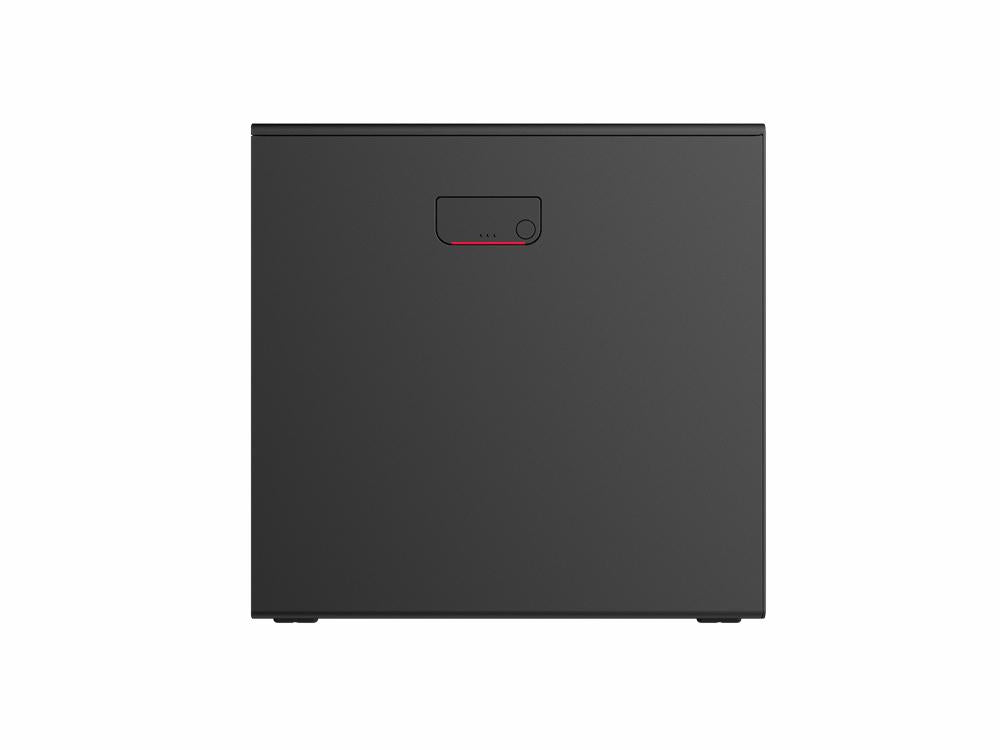

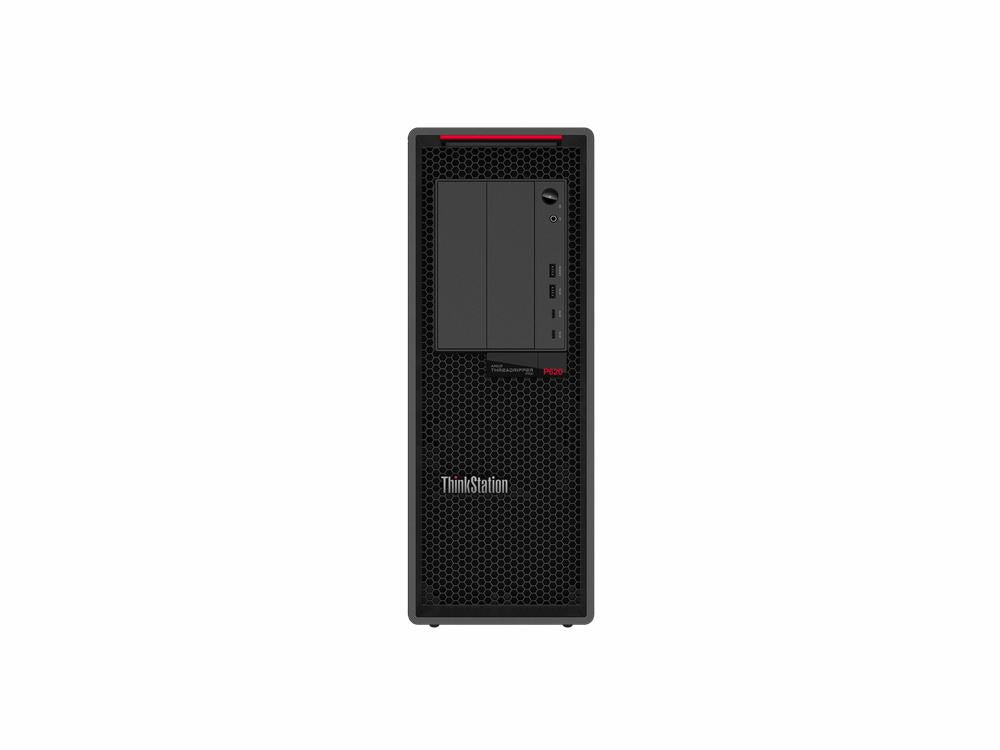

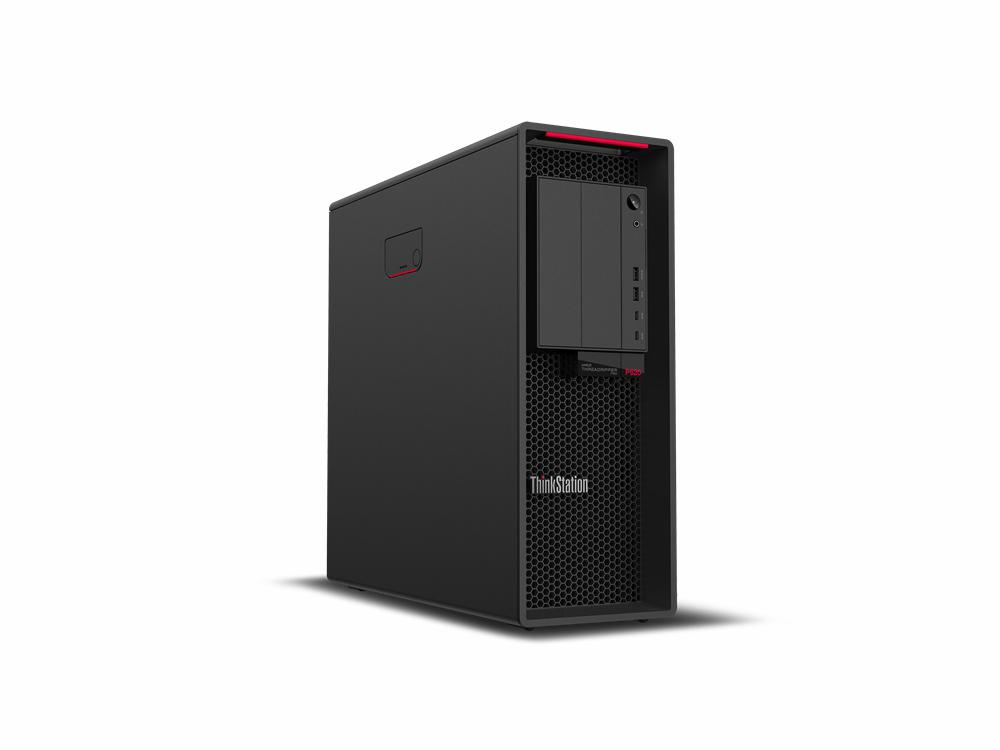

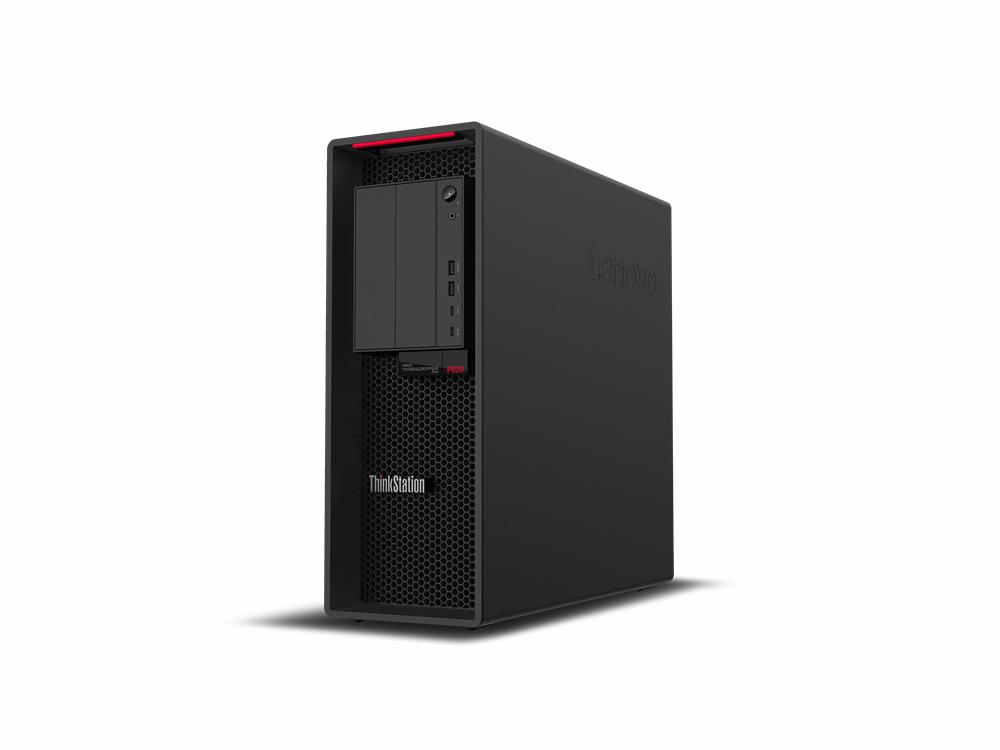

ThinkStation P620 - AMD Ryzen - PRO 5945WX (4.10GHz - 6MB) - Windows 11 Pro 64 - 32.0GB - 1x1TB SSD M.2 2280 PCIe Gen4 TLC Opal - NVIDIA - T1000 8GB - 3 Year Premier NBD
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | Lenovo ThinkStation P620(AMD) |
| Cabinet Form Factor | Tower |
| Platform Technology | AMD PRO |
| Processor / Type | Ryzen Threadripper Pro |
| Processor / Manufacturer | AMD |
| Processor / Clock Speed | 4.1 GHz |
| Max Turbo Frequency | 4.5 GHz |
| Processor / Number | 5945WX |
| Multi-Core Technology | 12-Core |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | L3 Cache |
| Cache Memory Installed Size | 64 MB |
| Processor / Socket Type | Socket SP3 |
| Mainboard / Chipset Type | AMD WRX80 Chipset |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM Form Factor | RDIMM |
| RAM / Memory Speed | 3200 MHz |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 1 TB |
| Hard Drive / Interface Type | PCIe NVMe M.2 |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Network Controller | Marvell AQtion AQN-107, 1x 10GbE RJ-45 |
| Data Link Protocol | Gigabit Ethernet |
| Graphics Controller | NVIDIA T1000 |
| Video Memory / Installed Size | 8 GB |
| GPU Installed Qty | 1 |
| Audio Output | High Definition (HD) Audio, Realtek ALC4050H codec |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse |
| Operating System | Microsoft Windows 11 Pro |
| Front I/O Ports | 1x USB 3.2 Gen 2 1x USB 3.2 Gen 2 (Always On and fast charge) 2x USB-C 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB 2.0 4x USB 3.2 Gen 2 1x Ethernet (10GbE RJ-45) 2x PS/2 ports (keyboard / mouse) 1x line-in (3.5mm) 1x line-out (3.5mm) 1x microphone (3.5mm) |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, Access Panel Lock Kit with Common Key, Kensington Security Slot, 3 x 7 mm, Lock Kit with Common Key |
| Expansion Bays | 2x 3.5" disk bay (standard) 3x 3.5" disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay |
| Expansion Bays Total (Free) | 2x 3.5" disk bay (standard) 3x 3.5" disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay 1x flex bay, supports one of the following: Front Access Storage Enclosure 5.25" Slim ODD and HDD cage |
| Expansion Slots Total (Free) | Two PCIe 4.0 x8; Four PCIe 4.0 x16 |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified, Access Panel Lock Kit with Common Key, Kensington Security Slot, 3 x 7 mm, Lock Kit with Common Key |
| COO | MEXICO |
| Green Product Information | |
| EPEAT Level | Silver |
| Energy Star Compliant | Y |
| Processor | |
| Processor / Type | Ryzen Threadripper Pro |
| Processor / Manufacturer | AMD |
| Processor / Clock Speed | 4.1 GHz |
| Processor / Number | 5945WX |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | L3 Cache |
| Cache Memory Installed Size | 64 MB |
| Multi-Core Technology | 12-Core |
| Processor / Socket Type | Socket SP3 |
| Memory | |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 1 TB |
| Storage | |
| Hard Drive / Interface Type | PCIe NVMe M.2 |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Software | |
| Service & Support Type | 3-year, Onsite |
| Networking | |
| Network Controller | Marvell AQtion AQN-107, 1x 10GbE RJ-45 |
| Data Link Protocol | Gigabit Ethernet |
| Expansion | |
| Front I/O Ports | 1x USB 3.2 Gen 2 1x USB 3.2 Gen 2 (Always On and fast charge) 2x USB-C 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB 2.0 4x USB 3.2 Gen 2 1x Ethernet (10GbE RJ-45) 2x PS/2 ports (keyboard / mouse) 1x line-in (3.5mm) 1x line-out (3.5mm) 1x microphone (3.5mm) |
| Expansion Bays | 2x 3.5" disk bay (standard) 3x 3.5" disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay |
| Expansion Bays Total (Free) | 2x 3.5" disk bay (standard) 3x 3.5" disk bay (optional): 2 bays come with 3rd disk or Storage Bay Upgrade Kit 1 bay via flex bay 1x flex bay, supports one of the following: Front Access Storage Enclosure 5.25" Slim ODD and HDD cage |
| Expansion Slots Total (Free) | Two PCIe 4.0 x8; Four PCIe 4.0 x16 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
