StarTech
UPC:
065030855624
UNSPSC:
43201500
MFG:
SAT32MSAT257

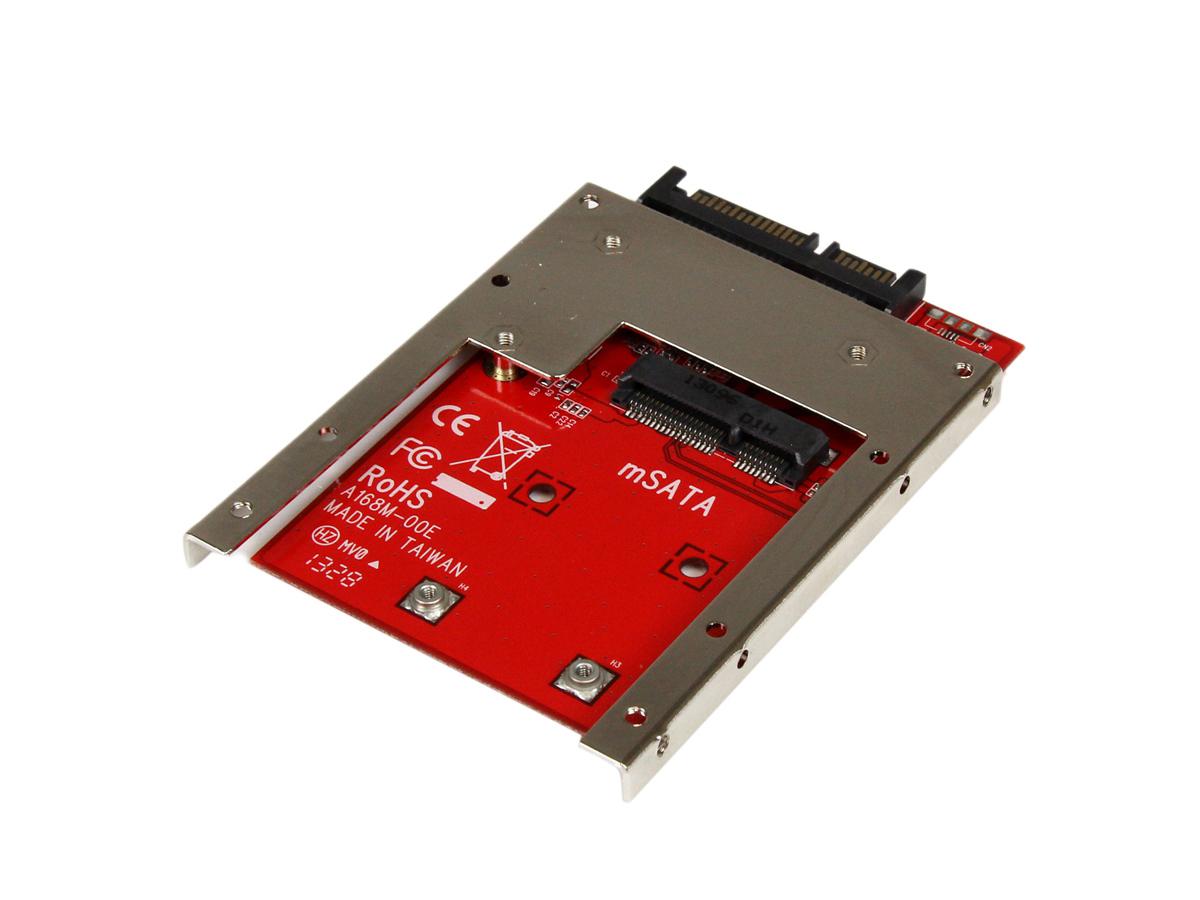

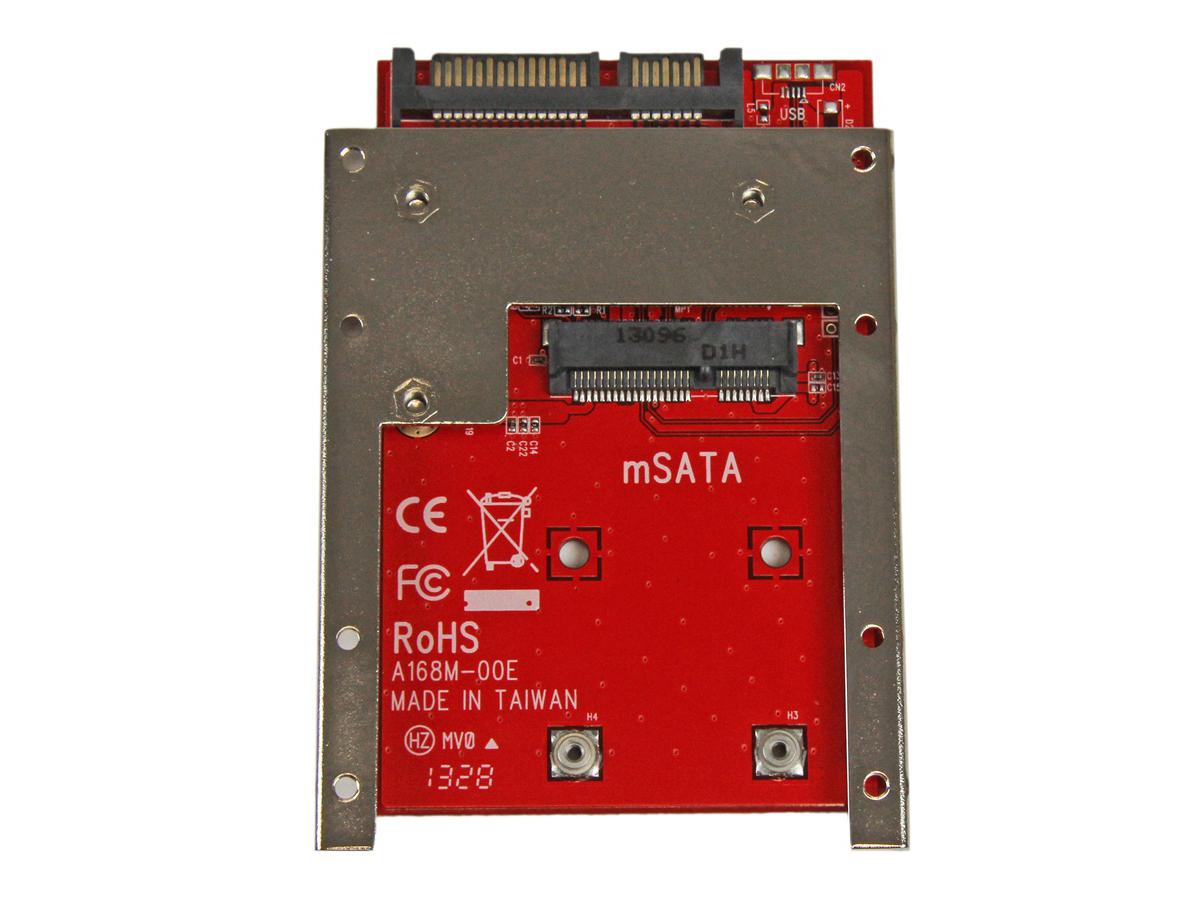

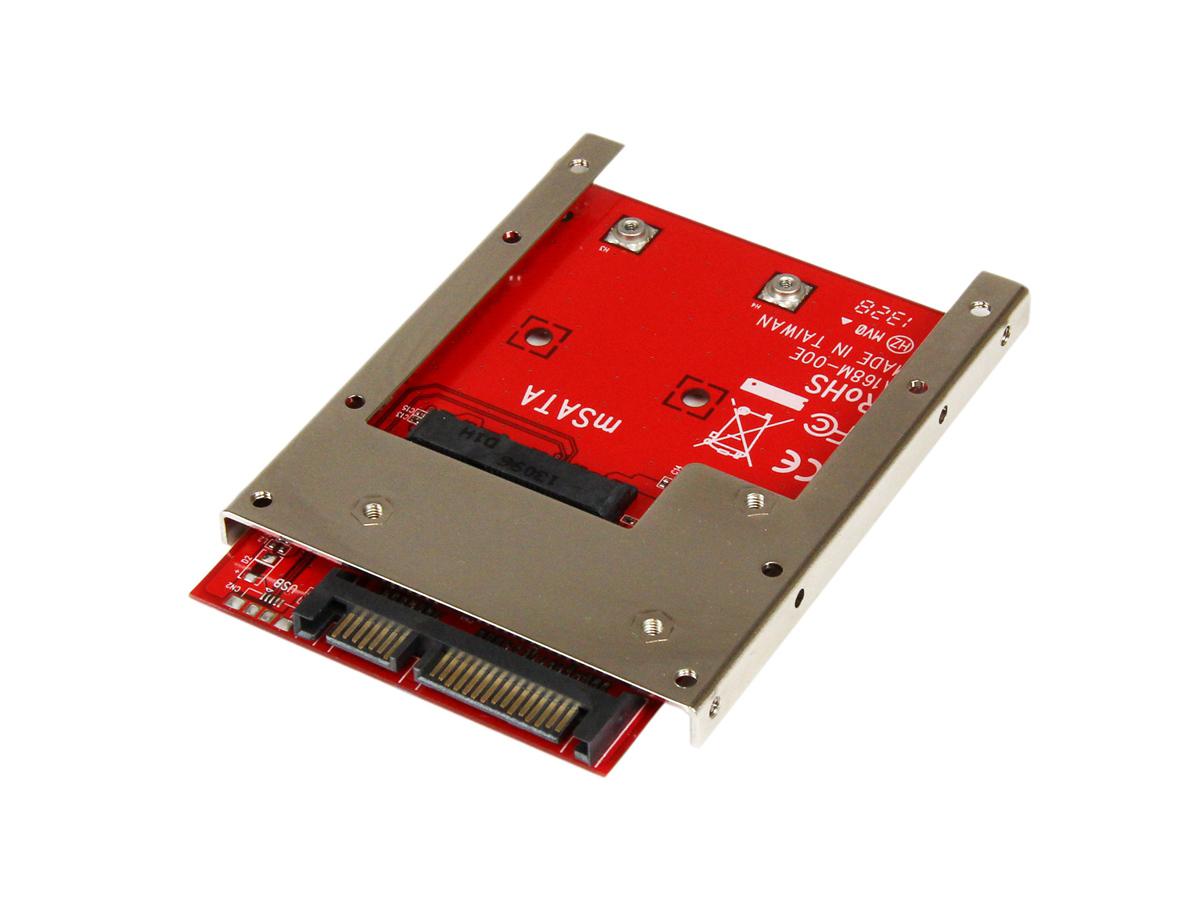

MSATA SSD TO 2.5 SATA ADAPTER CONVERTER
194 in stock, ready to ship
StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height (SAT32MSAT257) - Storage controller - 1 Channel - SATA 6Gb/s - SATA 6Gb/s - for P/N: BRACKET125PT, BRACKET125PTP, SATERASER4, SDOCK1EU3P2, SDOCK4U313, USB31C2SAT3
Product Specifications
| Primary Information | |
|---|---|
| Product Description | StarTech.com mSATA SSD to 2.5in SATA Adapter Converter - mSATA to SATA Adapter for 2.5in bay with Open Frame Bracket and 7mm Drive Height (SAT32MSAT257) - storage controller - SATA 6Gb/s - SATA 6Gb/s |
| Device Type | Storage controller - internal |
| Bus Type | SATA 6Gb/s |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 1 |
| Dimensions (WxDxH) | 2.8 in x 3.9 in x 0.3 in |
| Weight | 3.53 oz |
| Manufacturer Warranty | 2-year warranty |
| Designed For | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB |
| General | |
| Device Type | Storage controller - internal |
| Host Bus | SATA 6Gb/s |
| Storage Controller | |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 6 Gbit/s |
| Supported Devices | Hard drive, solid state drive |
| Channel Qty | 1 |
| Expansion / Connectivity | |
| Interfaces | 1 x SATA 6Gb/s - SATA power |
| Connections | 1 - 52 pin mini-SATA |
| Miscellaneous | |
| Mounting Kit | Included |
| Compliant Standards | FCC, RoHS |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Dimensions & Weight | |
| Width | 2.8 in |
| Depth | 3.9 in |
| Height | 0.3 in |
| Weight | 3.53 oz |
| Environmental Parameters | |
| Min Operating Temperature | -40 °F |
| Max Operating Temperature | 185 °F |
| Compatibility Information | |
| Designed For | P/N: BRACKET125PT, BRACKET125PTP, BRACKET225PT, BRACKET425F, SATDOCK5U3ER, SATERASER4, SDOCK1EU3P, SDOCK1EU3P2, SDOCK4U313, SDOCKU313, SDOCKU313E, USB312SAT3, USB31C2SAT3, USB31CSAT3CB |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 43201500 |
