Lenovo
UPC:
UNSPSC:
43201830
MFG:
4XB7A91777

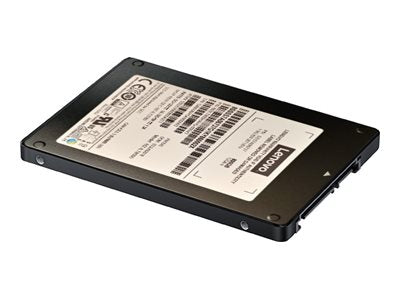

LENOVO THINKSYSTEM 2.5INC U.2 PM9A3 15.36TB READ INTENSIVE NVME PCIE 4.0 X4 HS SSD
Out of stock
Samsung PM9A3 - SSD - Read Intensive - encrypted - 15.36 TB - hot-swap - 2.5" - U.2 PCIe 4.0 x4 (NVMe) - TCG Opal Encryption, Self-Encrypting Drive (SED)
Product Specifications
| Primary Information | |
|---|---|
| Product Description | Samsung PM9A3 - SSD - Read Intensive - 15.36 TB - U.2 PCIe 4.0 x4 (NVMe) |
| Type | Solid state drive - hot-swap |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Drive Class | Read Intensive |
| Features | Advanced ECC Engine, End-to-end data protection, 32-layer V-NAND technology, advanced power loss protection architecture, S.M.A.R.T. |
| Dimensions (WxDxH) | 2.8 in x 3.9 in x 0.3 in |
| Weight | 3.17 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Solid state drive - hot-swap |
| Capacity | 15.36 TB |
| Hardware Encryption | Yes |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 4.0 x4 (NVMe) |
| Features | Advanced ECC Engine, End-to-end data protection, 32-layer V-NAND technology, advanced power loss protection architecture, S.M.A.R.T. |
| Width | 2.8 in |
| Depth | 3.9 in |
| Height | 0.3 in |
| Weight | 3.17 oz |
| Performance | |
| Drive Writes Per Day (DWPD) | 1 |
| SSD Endurance | 28032 TB |
| Drive Class | Read Intensive |
| Internal Data Rate | 5200 MBps (read) / 4000 MBps (write) |
| 4KB Random Read | 850000 IOPS |
| 4KB Random Write | 160000 IOPS |
| Average Latency | 20 μs |
| Reliability | |
| MTBF | 2,000,000 hours |
| Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x U.2 PCIe 4.0 x4 (NVMe) |
| Compatible Bay | 2.5" |
| Power | |
| Power Consumption | 11 Watt (read) ¦ 13.5 Watt (write) |
| Miscellaneous | |
| Compliant Standards | C-UL-US, TUV, CB, BSMI, KC, VCCI, RCM, FCC, IC |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 158 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (non-operating) | 1500 g @ 0.5 ms |
| Vibration Tolerance (non-operating) | 20 gRMS @ 10-2000 Hz |
| Special Feature | |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 43201830 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
