Lenovo
UPC:
UNSPSC:
43201830
MFG:
4XB7A93890

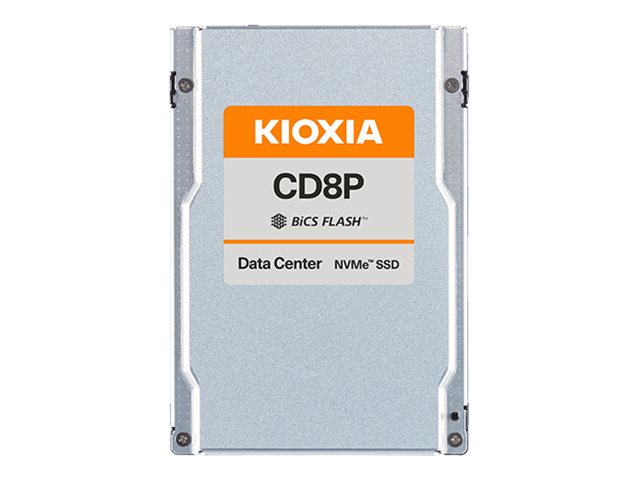

LENOVO THINKSYSTEM 2.5INC U.2 CD8P 6.4TB MIXED USE NVME PCIE 5.0 X4 HS SSD
Out of stock
KIOXIA CD8P - SSD - Mixed Use - encrypted - 6.4 TB - hot-swap - 2.5" - U.2 PCIe 5.0 x4 (NVMe) - TCG Opal Encryption 2.0, Self-Encrypting Drive (SED)
Product Specifications
| Primary Information | |
|---|---|
| Product Description | KIOXIA CD8P - SSD - Mixed Use - 6.4 TB - U.2 PCIe 5.0 x4 (NVMe) |
| Type | Solid state drive - hot-swap |
| Capacity | 6.4 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | BiCS4 |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Drive Class | Mixed Use |
| Features | Triple-level cell (TLC), End-to-end data protection, Power Loss Protection (PLP), S.M.A.R.T. |
| Dimensions (WxDxH) | 2.8 in x 3.9 in x 0.6 in |
| Weight | 4.59 oz |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Solid state drive - hot-swap |
| Capacity | 6.4 TB |
| Hardware Encryption | Yes |
| NAND Flash Memory Type | BiCS4 |
| Form Factor | 2.5" |
| Interface | U.2 PCIe 5.0 x4 (NVMe) |
| Features | Triple-level cell (TLC), End-to-end data protection, Power Loss Protection (PLP), S.M.A.R.T. |
| Width | 2.8 in |
| Depth | 3.9 in |
| Height | 0.6 in |
| Weight | 4.59 oz |
| Performance | |
| Drive Writes Per Day (DWPD) | 3 |
| SSD Endurance | 35040 TB |
| Drive Class | Mixed Use |
| Internal Data Rate | 12000 MBps (read) / 5500 MBps (write) |
| 4KB Random Read | 2000000 IOPS |
| 4KB Random Write | 400000 IOPS |
| Average Latency | 10us |
| Reliability | |
| MTBF | 2,500,000 hours |
| Recoverable Errors | 1 per 10^17 |
| Expansion & Connectivity | |
| Interfaces | 1 x U.2 PCIe 5.0 x4 (NVMe) |
| Compatible Bay | 2.5" |
| Power | |
| Power Consumption | 21 Watt (typical) |
| Miscellaneous | |
| Compliant Standards | UL 62368-1, CSA C22.2 62368-1, EN 62368-1, KS C 9832, FCC Part 15 Subpart B, BSMI CNS 15936, EN 55032, EN 61000, EN 55035, EN55035, AS/NZS CISPR 32, ICES-003, VCCI, IEC 60950-1, IEC 62368-1, RoHS 2 (2011/65/EU) |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - replacement - 1 year |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 163.4 °F |
| Min Storage Temperature | 32.7 °F |
| Max Storage Temperature | 185 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Shock Tolerance (operating) | 1000 g @ 0.5 ms |
| Shock Tolerance (non-operating) | 1000 g @ 0.5 ms |
| Vibration Tolerance (operating) | 2.17 gRMS @ 5-800 Hz |
| Vibration Tolerance (non-operating) | 3.1 gRMS @ 2-500 Hz |
| Special Feature | |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 43201830 |
