Lenovo
UPC:
197530265341
UNSPSC:
43211515
MFG:
30F3006JUS

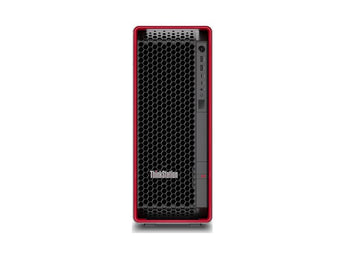

LENOVO THINKSTATION P7 W53433 16G X2 W11PWS
Out of stock
THINKSTATION P7, INTEL XEON W5-3433 (2.00GHZ, 45MB), WINDOWS 11 PRO FOR WORKSTATIONS 64, 32.0GB, 1X1TB SSD M.2 2280 PCIE GEN4 PERFORMANCE TLC OPAL, NVIDIA RTX 4000 ADA 20GB, INTEL AX210 AX, BT 5.1 OR ABOVE, 3YR PREMIER NBD, USB, TRADITIONAL, BLACK-ENGLISH (US)
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | THINKSTATION P7 |
| Cabinet Form Factor | Tower |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2 GHz |
| Max Turbo Frequency | 4.2 GHz |
| Processor / Number | w5-3433 |
| Multi-Core Technology | 16-Core |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 45 MB |
| Processor / Socket Type | FCLGA4677 |
| Mainboard / Chipset Type | Intel W790 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM Form Factor | DIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 1 TB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| RAID Level | None |
| Network Controller | Intel Wi-Fi 6E AX210 |
| Data Link Protocol | Gigabit Ethernet; Wi-Fi, Bluetooth |
| Graphics Controller | NVIDIA RTX 4000 Ada |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 20 GB |
| Input Device Support Type | Mouse; Keyboard |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional for Workstations |
| Interfaces & Connections | 2x RJ-45, GbE + 10GbE, 1x headphone / microphone combo jack (3.5mm), 1x USB-C 3.2 Gen 2x2 (support data transfer), 2x USB 2.0, 3x USB 3.2 Gen 2, 1x Ethernet (10GbE RJ-45), 1x Ethernet (GbE RJ-45), 1x line-in (3.5mm), 1x line-out (3.5mm) |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer), 2x USB 2.0, 3x USB 3.2 Gen 2, 1x Ethernet (10GbE RJ-45), 1x Ethernet (GbE RJ-45), 1x line-in (3.5mm), 1x line-out (3.5mm) |
| Service & Support Type | 3-year |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Expansion Slots Total (Free) | Supports 7 PCIe slots with 4x PCIe 5.0 slots and 3x PCIe 4.0 slots |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1400 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Width | 6.9 Inch |
| Depth | 20 Inch |
| Height | 17.1 Inch |
| Weight | 24.5 Kg |
| Enclosure Color | Black |
| Min Operating Temperature | 10 CELSIUS |
| Max Operating Temperature | 35 CELSIUS |
| Humidity Range Operating | 20% to 80% |
| Processor | |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2 GHz |
| Processor / Number | w5-3433 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 45 MB |
| Multi-Core Technology | 16-Core |
| Processor / Socket Type | FCLGA4677 |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 1 TB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| RAID Level | None |
| Software | |
| Service & Support Type | 3-year |
| Networking | |
| Network Controller | Intel Wi-Fi 6E AX210 |
| Data Link Protocol | Wi-Fi, Bluetooth; Gigabit Ethernet |
| Expansion | |
| Interfaces & Connections | 2x RJ-45, GbE + 10GbE, 1x headphone / microphone combo jack (3.5mm), 1x USB-C 3.2 Gen 2x2 (support data transfer), 2x USB 2.0, 3x USB 3.2 Gen 2, 1x Ethernet (10GbE RJ-45), 1x Ethernet (GbE RJ-45), 1x line-in (3.5mm), 1x line-out (3.5mm) |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer), 2x USB 2.0, 3x USB 3.2 Gen 2, 1x Ethernet (10GbE RJ-45), 1x Ethernet (GbE RJ-45), 1x line-in (3.5mm), 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | Supports 7 PCIe slots with 4x PCIe 5.0 slots and 3x PCIe 4.0 slots |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1400 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.9 Inch |
| Depth | 20 Inch |
| Height | 17.1 Inch |
| Enclosure Color | Black |
| Weight | 24.5 Kg |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
