Lenovo
UPC:
197531639479
UNSPSC:
43211515
MFG:
30GA006BUS

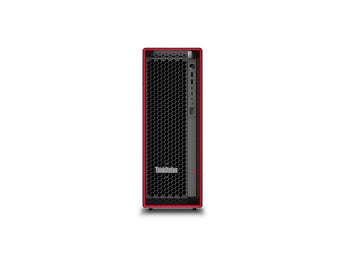

LENOVO THINKSTATION P5 W52455X 16G X1 W11PWS
Out of stock
Thinkstation P5 - Intel - Xeon - W5-2455X - 3.2GHz - 12-Core - 4.6GHz - DDR5 - 16GB - 4800MHz - 512GB - Power Supply - 1000Watt - Intel AX211 Wi-Fi 6E - Wi-Fi, Bluetooth 5.1,Gigabit Ethernet - Keyboard, Mouse - Microsoft Windows 11 Pro - 3-year, Onsite
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | Thinkstation P5 |
| Cabinet Form Factor | Tower |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3.2 GHz |
| Max Turbo Frequency | 4.6 GHz |
| Processor / Number | W5-2455X |
| Multi-Core Technology | 12-Core |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Processor / Socket Type | FCLGA4677 |
| Mainboard / Chipset Type | Intel W790 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM Form Factor | RDIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe 4.0 NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| RAID Level | None |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Audio Output | Headphone / microphone combo jack (3.5mm) |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 2x USB-A (Hi-Speed USB / USB 2.0); 3x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm). |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots. Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU; Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH; Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU; Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH; Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU; Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH. |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Weight | 19 Kg |
| Enclosure Color | Black |
| Processor | |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Number | W5-2455X |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Multi-Core Technology | 12-Core |
| Processor / Socket Type | FCLGA4677 |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 512 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe 4.0 NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| RAID Level | None |
| Software | |
| Service & Support Type | 3-year, Onsite |
| Networking | |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Expansion | |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 2x USB-A (Hi-Speed USB / USB 2.0); 3x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm). |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots. Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU; Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH; Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU; Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH; Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU; Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH. |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Enclosure Color | Black |
| Weight | 19 Kg |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
