Lenovo
UPC:
196804827506
UNSPSC:
43211515
MFG:
30GA0014US

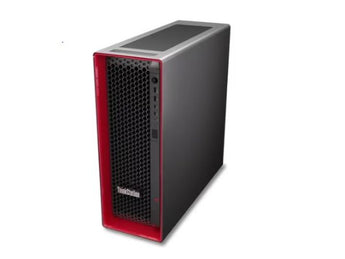

LENOVO ENG THINKSTATION P5 W32425 16G X2 W11PWS
Out of stock
ThinkStation P5 - Intel - Xeon - W3-2425 (3.00GHz - 15MB) - Windows 11 Pro for Workstations 64 - 32.0GB - 1x512GB SSD M.2 2280 PCIe Gen4 Performance TLC Opal - NVIDIA - T1000 8GB - 3 Year Premier NBD - USB - Traditional - Black-English (US)
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | Thinkstation P5 |
| Cabinet Form Factor | Desktop |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3 GHz |
| Max Turbo Frequency | 4.4 GHz |
| Processor / Number | W3-2425 |
| Multi-Core Technology | 6-Core |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 15 MB |
| Processor / Socket Type | FCLGA4677 |
| Mainboard / Chipset Type | Intel W790 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM Form Factor | RDIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| RAID Level | None |
| Network Controller | Intel I219-LM, 1x GbE RJ-45 |
| Data Link Protocol | None |
| Graphics Controller | NVIDIA T1000 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | 8 GB |
| GPU Installed Qty | 1 |
| Audio Output | High Definition (HD) Audio, Realtek ALC897-Q codec |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Interfaces & Connections | Front: Headphone / mic combo, USB-A 3.2 Gen 2 (10Gbps), USB-A 3.2 Gen 2 (10Gbps, with 1 x always-on charging), 2 x USB-C 3.2 Gen 2 (10Gbps), Rear: 2 x USB-A 2.0, 3 x USB-A 3.2 Gen 2 (10Gbps), USB-C 3.2 Gen 2x2 (20Gbps), RJ45 Gigabit Ethernet,, Line in, Line out. |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 2x USB 2.0 3x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x line-in (3.5mm) 1x line-out (3.5mm) |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified,Kensington Security Slot, 3 x 7 mm |
| Expansion Bays | Three internal disk bays plus one front access M.2 bay |
| Expansion Slots Total (Free) | Two PCIe 5.0 x16 One PCIe 4.0 x8 Three PCIe 4.0 x4 |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Width | 6.5 Inch |
| Depth | 17.8 Inch |
| Height | 17.3 Inch |
| Weight | 21 Kg |
| Enclosure Color | Black |
| Min Operating Temperature | 10 Celsius |
| Max Operating Temperature | 35 Celsius |
| Humidity Range Operating | 20% to 80% |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified,Kensington Security Slot, 3 x 7 mm |
| COO | MEXICO |
| Green Product Information | |
| TCO Certified | TCO Certified 9.0 |
| EPEAT Level | Gold |
| Energy Star Compliant | Yes |
| Processor | |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3 GHz |
| Processor / Number | W3-2425 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 15 MB |
| Multi-Core Technology | 6-Core |
| Processor / Socket Type | FCLGA4677 |
| Memory | |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 512 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| RAID Level | None |
| Software | |
| Service & Support Type | 3-year, Onsite |
| Networking | |
| Network Controller | Intel I219-LM, 1x GbE RJ-45 |
| Data Link Protocol | None |
| Expansion | |
| Interfaces & Connections | Front: Headphone / mic combo, USB-A 3.2 Gen 2 (10Gbps), USB-A 3.2 Gen 2 (10Gbps, with 1 x always-on charging), 2 x USB-C 3.2 Gen 2 (10Gbps), Rear: 2 x USB-A 2.0, 3 x USB-A 3.2 Gen 2 (10Gbps), USB-C 3.2 Gen 2x2 (20Gbps), RJ45 Gigabit Ethernet,, Line in, Line out. |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 2x USB 2.0 3x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x line-in (3.5mm) 1x line-out (3.5mm) |
| Expansion Bays | Three internal disk bays plus one front access M.2 bay |
| Expansion Slots Total (Free) | Two PCIe 5.0 x16 One PCIe 4.0 x8 Three PCIe 4.0 x4 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.5 Inch |
| Depth | 17.8 Inch |
| Height | 17.3 Inch |
| Enclosure Color | Black |
| Weight | 21 Kg |
| Interfaces & Connections | Front: Headphone / mic combo, USB-A 3.2 Gen 2 (10Gbps), USB-A 3.2 Gen 2 (10Gbps, with 1 x always-on charging), 2 x USB-C 3.2 Gen 2 (10Gbps), Rear: 2 x USB-A 2.0, 3 x USB-A 3.2 Gen 2 (10Gbps), USB-C 3.2 Gen 2x2 (20Gbps), RJ45 Gigabit Ethernet,, Line in, Line out. |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
