Lenovo
UPC:
197528136967
UNSPSC:
43211508
MFG:
11RJ008HUS

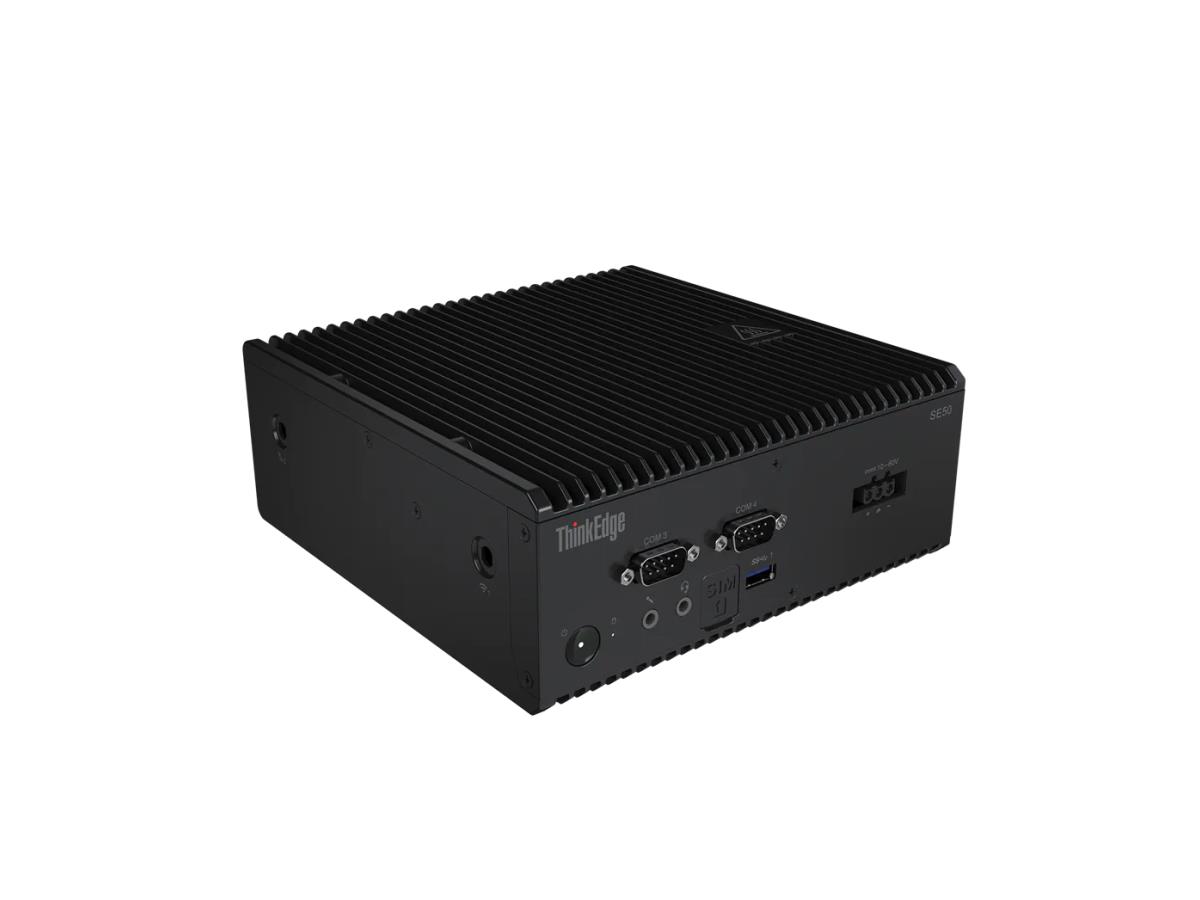

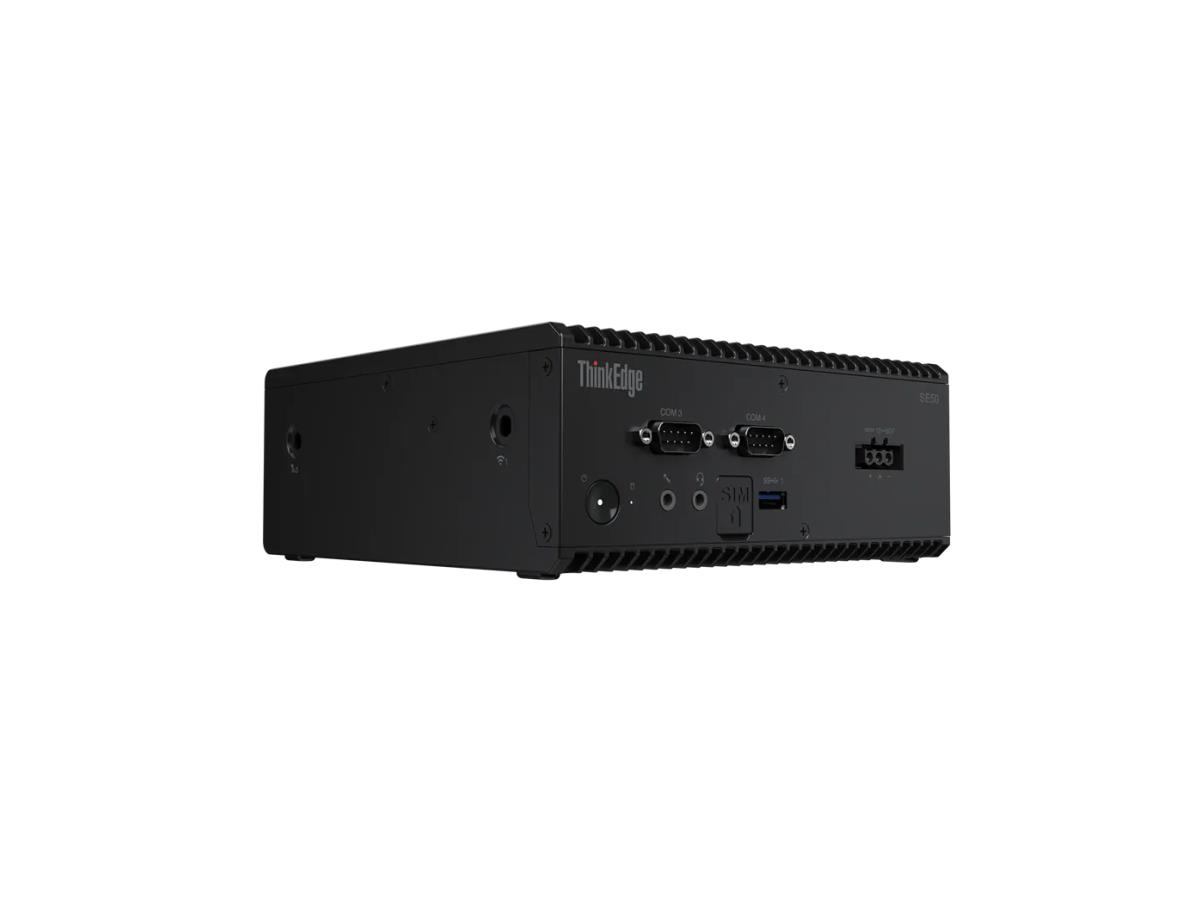

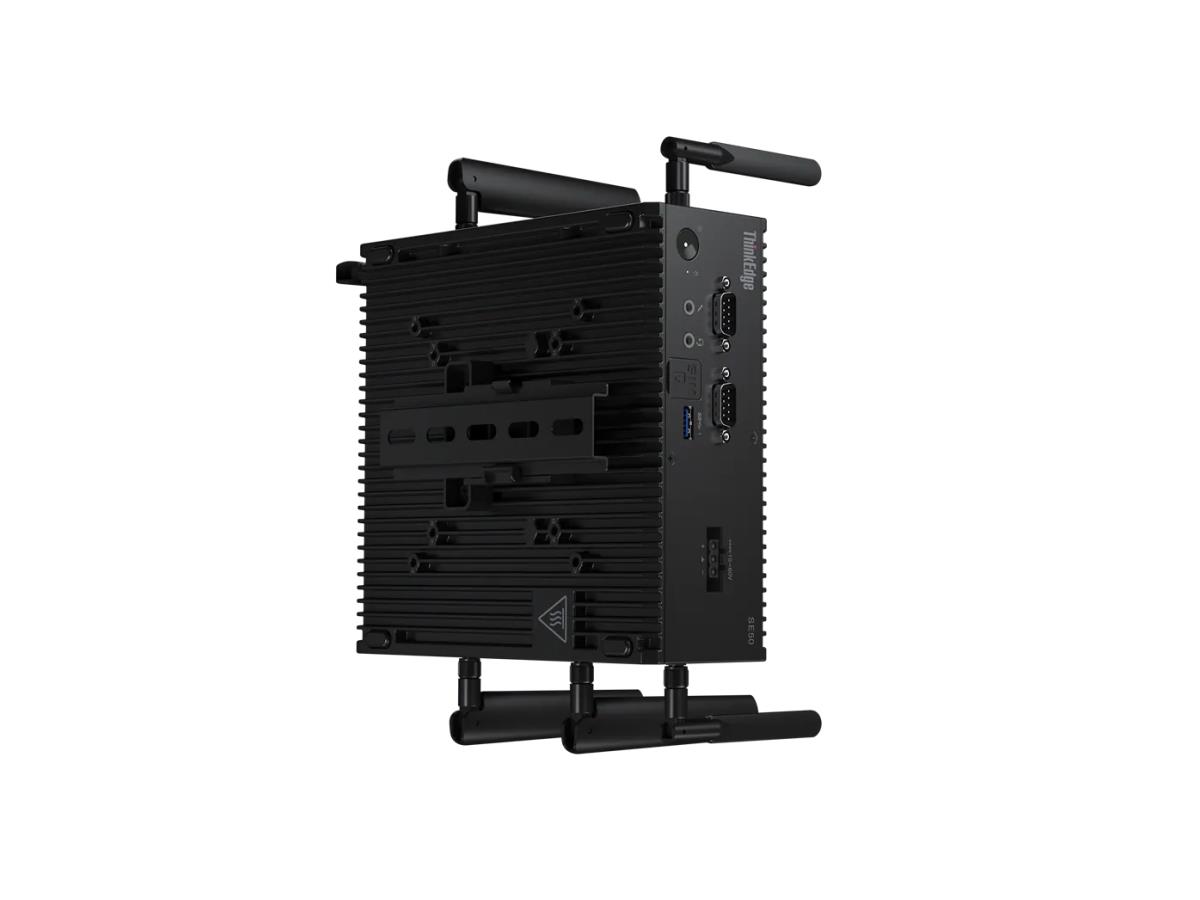

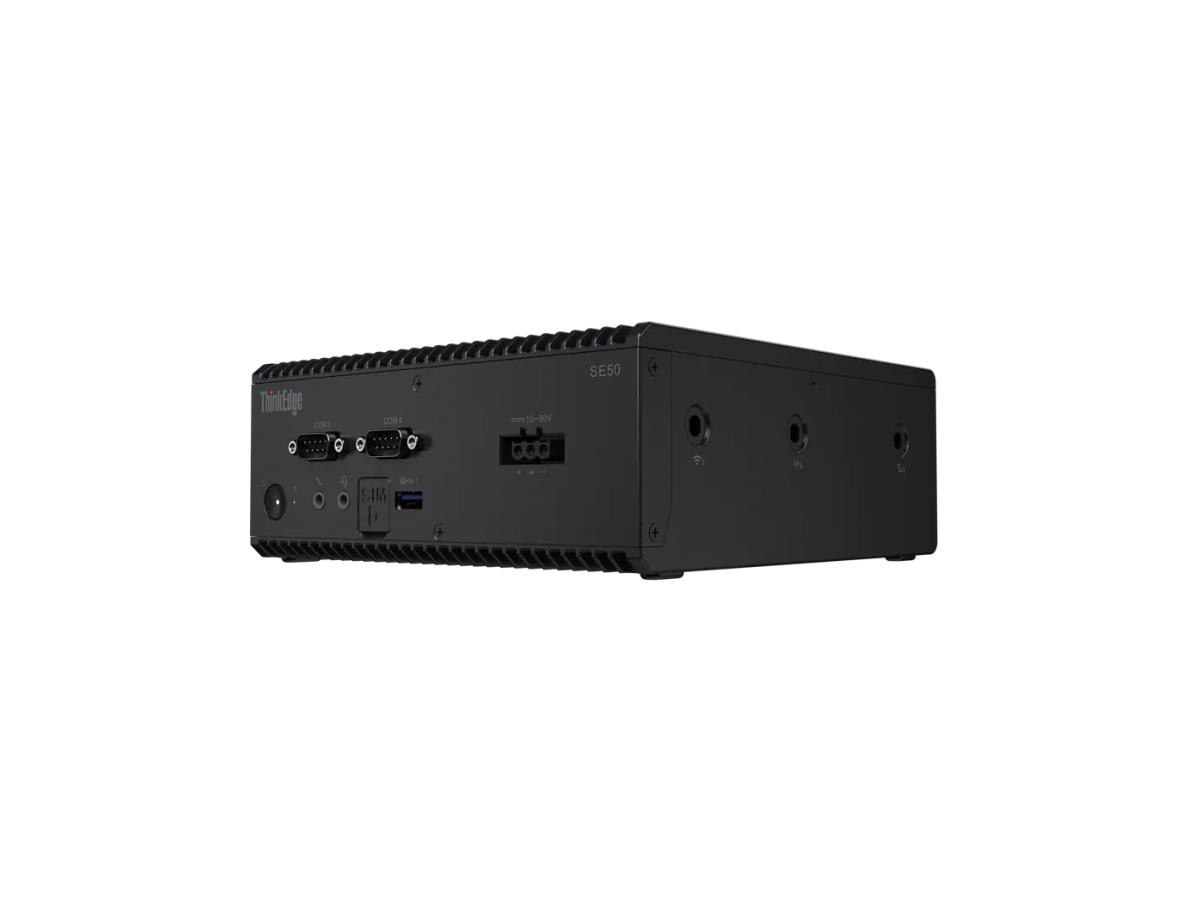

LENOVO DESKTOP TE SE50 I58365UE 16G N W10IOT
Out of stock
ThinkEdge SE50, Intel Core i5-8365UE (1.60GHz, 6MB), W10IOT64 EN, 16.0GB, 1x256GB SSD M.2 2280 PCIe TLC Opal, Intel UHD 620, BT 5.1 or above,Intel9560 2x2ac, 65W, 3 Year On-site
Product Specifications
| General | |
|---|---|
| Processor | Intel,Intel Core i5,Core i5 1.6,1.6GHz Smart Cache,Smart Cache 8365UE,8365UE Cache Memory 6,6MB Max Turbo 4.1,4.1GHz |
| RAM | SODIMM,SODIMM DDR4,DDR4 Total Installed 16,16GB 2400,2400MHz Max Supported 64,64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | ThinkEdge SE50 |
| Processor / Generation | Intel 8th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.6 GHz |
| Cache Memory Installed Size | 6 MB |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 8365UE |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 2400 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Hard Drive / Capacity (2nd) | None MB |
| Data Link Protocol | IEEE 802.11 ac, Bluetooth 5.1 |
| Graphics Controller | Intel UHD Graphics 620 |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 10 IoT Enterprise 64-bit LTSC Thin Client |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Interfaces & Connections | 1x USB 3.2 Gen 1; 1x headphone (3.5mm); 1x headphone / microphone combo jack (3.5mm); 1x power connector; 2x Serial (RS232); 1x USB 3.2 Gen 1; 2x USB 2.0; 1x HDMI; 1x DisplayPort; 2x Ethernet (RJ-45); 2x serial (RS232); 2x Serial (RS422/RS485); 1x DIO (4DIx4DO); 1x CAN BUS |
| Front I/O Ports | 1x USB 3.2 Gen 1; 1x headphone (3.5mm); 1x headphone / microphone combo jack (3.5mm); 1x power connector; 2x Serial (RS232) |
| Rear I/O Ports | 1x USB 3.2 Gen 1; 2x USB 2.0; 1x HDMI; 1x DisplayPort; 2x Ethernet (RJ-45); 2x serial (RS232); 2x Serial (RS422/RS485); 1x DIO (4DIx4DO); 1x CAN BUS |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 2.83 Inch |
| Weight | 6.58 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Features | Integrated 100/1000M, 2x RJ45 |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 2400 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 8th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.6 GHz |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 8365UE |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 6 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None MB |
| Expansion | |
| Interfaces & Connections | 1x USB 3.2 Gen 1; 1x headphone (3.5mm); 1x headphone / microphone combo jack (3.5mm); 1x power connector; 2x Serial (RS232); 1x USB 3.2 Gen 1; 2x USB 2.0; 1x HDMI; 1x DisplayPort; 2x Ethernet (RJ-45); 2x serial (RS232); 2x Serial (RS422/RS485); 1x DIO (4DIx4DO); 1x CAN BUS |
| Front I/O Ports | 1x USB 3.2 Gen 1; 1x headphone (3.5mm); 1x headphone / microphone combo jack (3.5mm); 1x power connector; 2x Serial (RS232) |
| Rear I/O Ports | 1x USB 3.2 Gen 1; 2x USB 2.0; 1x HDMI; 1x DisplayPort; 2x Ethernet (RJ-45); 2x serial (RS232); 2x Serial (RS422/RS485); 1x DIO (4DIx4DO); 1x CAN BUS |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Calliope Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | IEEE 802.11 ac, Bluetooth 5.1 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified |
| COO | MEXICO |
| Video | |
| Graphics Controller | Intel UHD Graphics 620 |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 2.83 Inch |
| Weight | 6.58 lbs. |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
