Lenovo
UPC:
196804515502
UNSPSC:
43211508
MFG:
12NH0008UT
LENOVO DESKTOP TE SE10 X6425RE N 512G W10IOT
Out of stock
ThinkEdge ThinkEdge SE10 - Intel Atom x6425RE (1.90GHz) Windows 10 IoT Enterprise 64 - 32.0GB - 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal - Intel UHD Graphics,BT 5.1 or above,Wi-Fi 6E AX210 - 3 Year On-site
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | ThinkEdge SE10 |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Cache Memory Installed Size | 1.5 MB |
| Processor / Number | X6425RE |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Storage Controller Type | M.2; PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Memory Card Reader | SD card |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.1 |
| Network Controller | Intel Wi-Fi 6E AX210 |
| Platform Technology | XClarity In-Band manageability |
| Graphics Controller | Intel UHD Graphic |
| Max Monitors Supported | 2 |
| Video Output Interface | Display Port, HDMI |
| Keyboard | None |
| Mouse | None |
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC 2021 |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V, for SE10 (0~50C) only |
| Efficiency | 88% |
| Interfaces & Connections | Left Ports: 1x Nano SIM slot; 1x SD card slot |

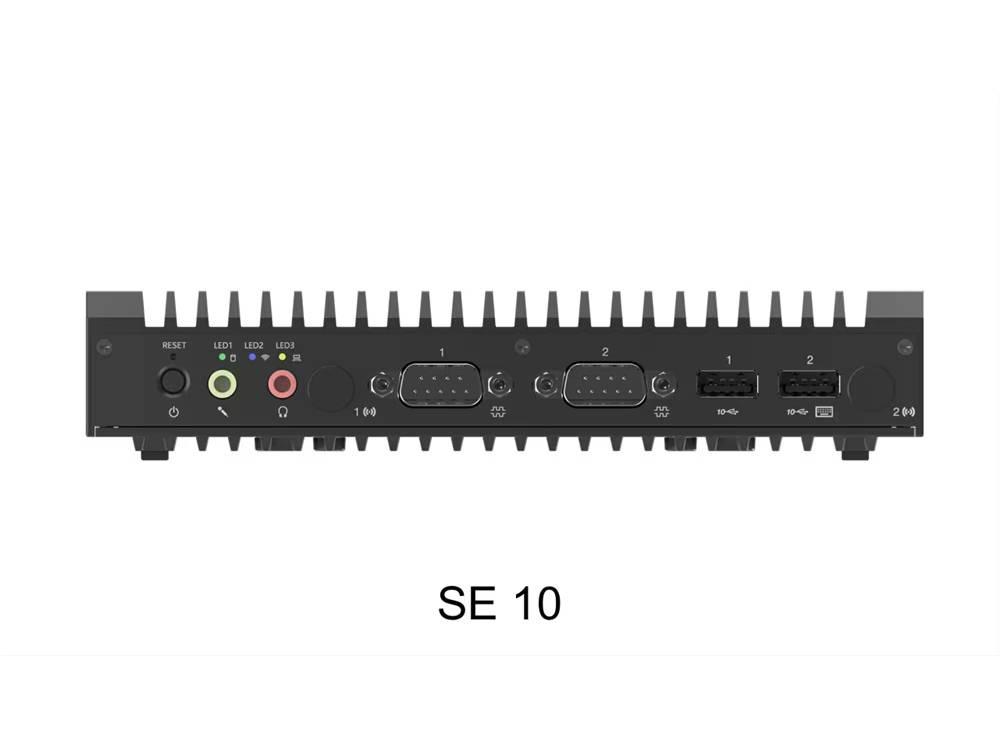

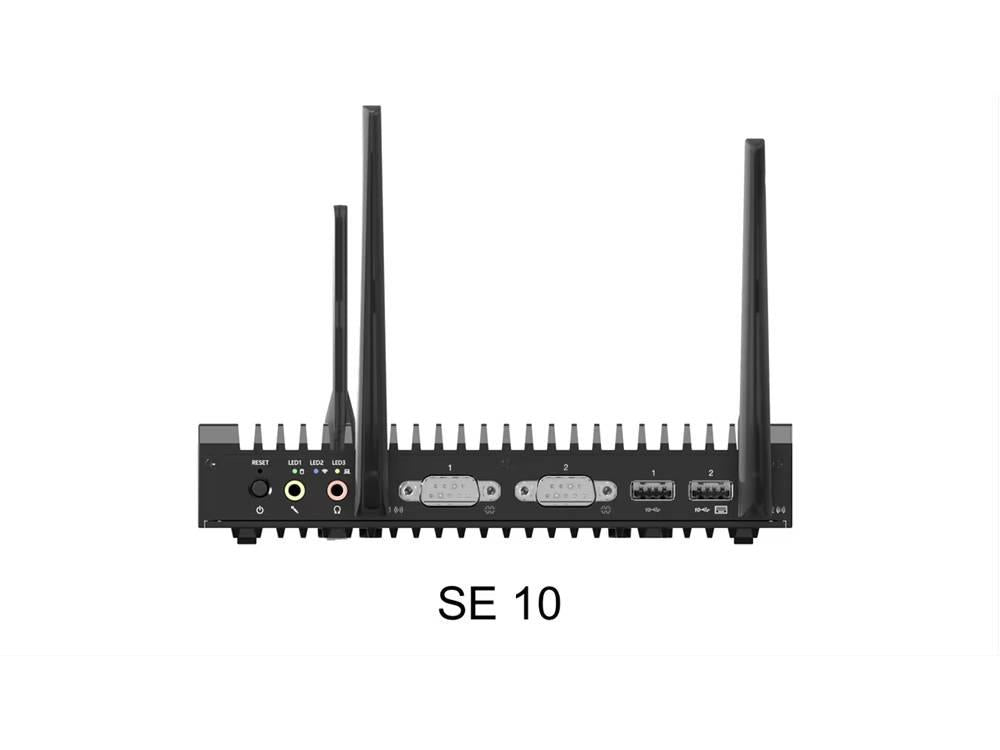

| Front I/O Ports | 2x USB 3.2 Gen 2 1x line-out (3.5mm); 1x microphone (3.5mm); 2x serial (RS232 / RS422 / RS485, BIOS selectable); 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) |

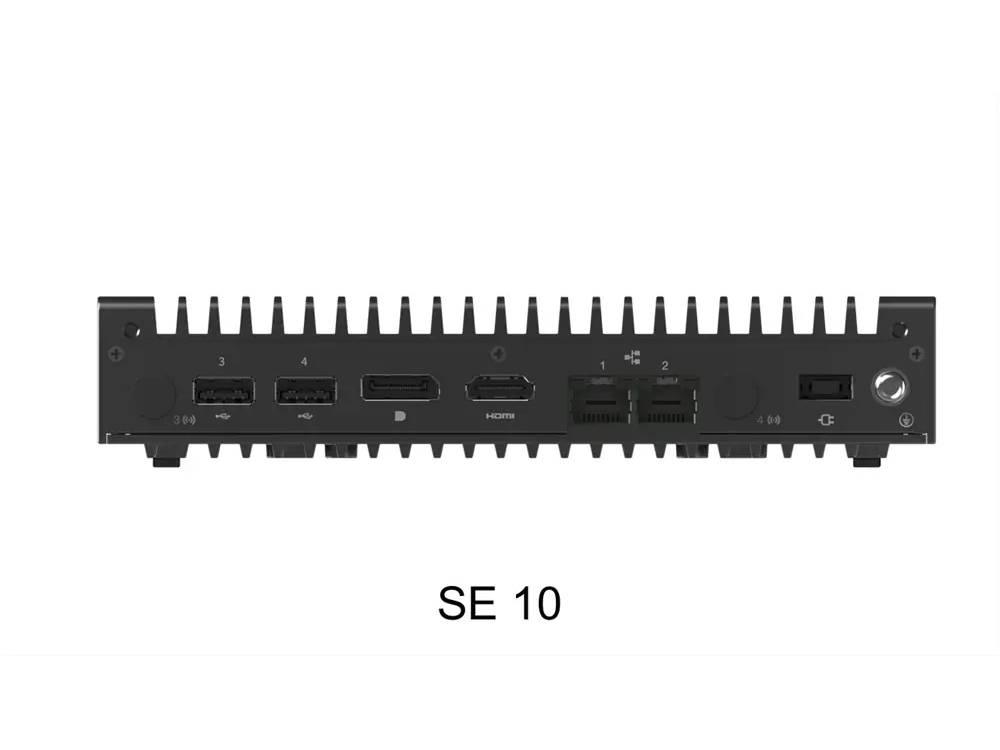

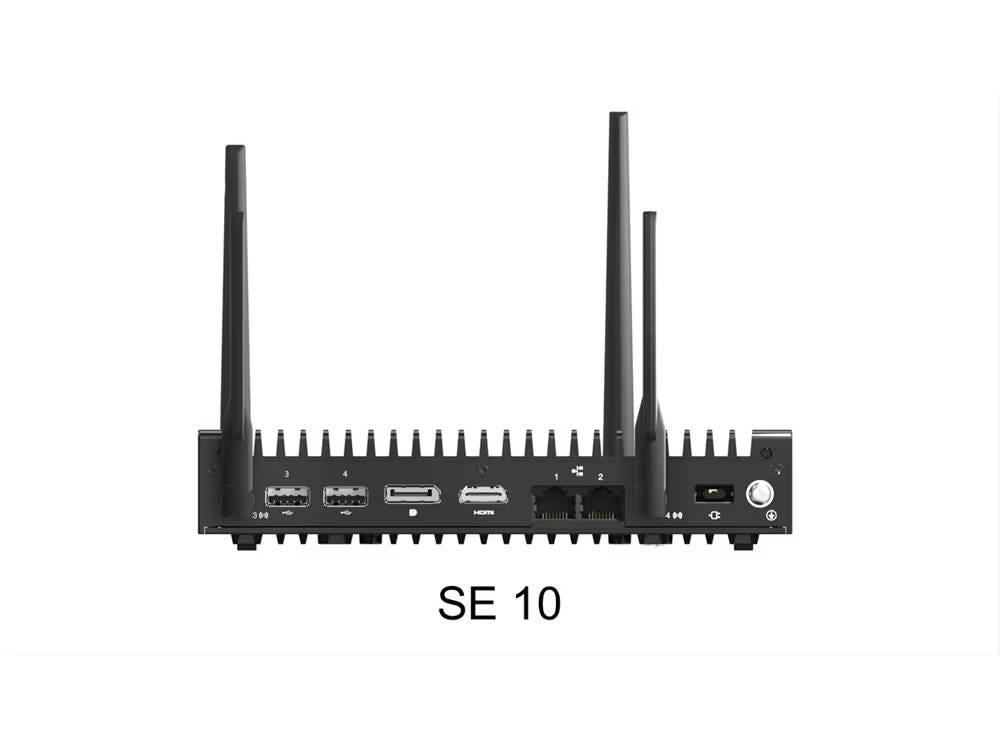

| Rear I/O Ports | 2x USB 2.0; 1x HDMI 1.4b; 1x DisplayPort 1.4; 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only); 1x Slim Tip power connector (SE10 only); 2x 2.5GbE Ethernet (RJ-45); 2x RP-SMA Female, Wi-Fi antenna |
| Expansion Slots Total (Free) | 2(1x Nano SIM slot, 1x SD card slot) |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.36 Inch |
| Weight | 1.5 Kg |
| Enclosure Color | Black (SE10) |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified; NITS SP800-147B compliant; ThinkShield |
| Memory | |
| Cache Memory Type | L2 Cache |
| RAM / Installed Qty | 2 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified; NITS SP800-147B compliant; ThinkShield |
| COO | MEXICO |
| Processor | |
| Processor / Manufacturer | Intel |
| Processor / Type | Atom |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Processor / Number | X6425RE |
| Processor / Installed Qty | 1 |
| Cache Memory Type | L2 Cache |
| Cache Memory Installed Size | 1.5 MB |
| Storage | |
| Hard Drive / Type | SSD |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Storage Controller Type | M.2; PCIe 4.0x4 NVMe |
| Expansion | |
| Interfaces & Connections | Left Ports: 1x Nano SIM slot; 1x SD card slot |
| Expansion Slots Total (Free) | 2(1x Nano SIM slot, 1x SD card slot) |
| Front I/O Ports | 2x USB 3.2 Gen 2 1x line-out (3.5mm); 1x microphone (3.5mm); 2x serial (RS232 / RS422 / RS485, BIOS selectable); 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN) |
| Rear I/O Ports | 2x USB 2.0; 1x HDMI 1.4b; 1x DisplayPort 1.4; 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only); 1x Slim Tip power connector (SE10 only); 2x 2.5GbE Ethernet (RJ-45); 2x RP-SMA Female, Wi-Fi antenna |
| I/O | |
| Keyboard | None |
| Mouse | None |
| Networking | |
| Data Link Protocol | Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.1 |
| Network Controller | Intel Wi-Fi 6E AX210 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240V, for SE10 (0~50C) only |
| Efficiency | 88% |
| Video | |
| Graphics Controller | Intel UHD Graphic |
| Video Output Interface | Display Port, HDMI |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black (SE10) |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.36 Inch |
| Weight | 1.5 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
