Lenovo
UPC:
197528820316
UNSPSC:
43211508
MFG:
12NK000XUT
LENOVO DESKTOP TE SE10 X6425RE N 1T W10IOT
Out of stock
THINKEDGE SE10 INTEL ATOM X6425RE 1.90GHZ WIN 10 IOT ENT 64 16.0GB 1X1TB SSD M.2 2230 PCIE TLC INTEL UHD GRAPH WLS 6E AX210 BT 5.1 OR ABOVE 3 YR ON-SITE
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | THINKEDGE SE10 |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Cache Memory Installed Size | 1.5 MB |
| Processor / Number | X6425RE |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Data Link Protocol | Gigabit Ethernet; Wi-Fi, Bluetooth |
| Graphics Controller | Intel UHD Graphic |
| Keyboard | None |
| Mouse | None |
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC 2021 |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 9-36V |
| Interfaces & Connections | RJ-45, 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable), 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |

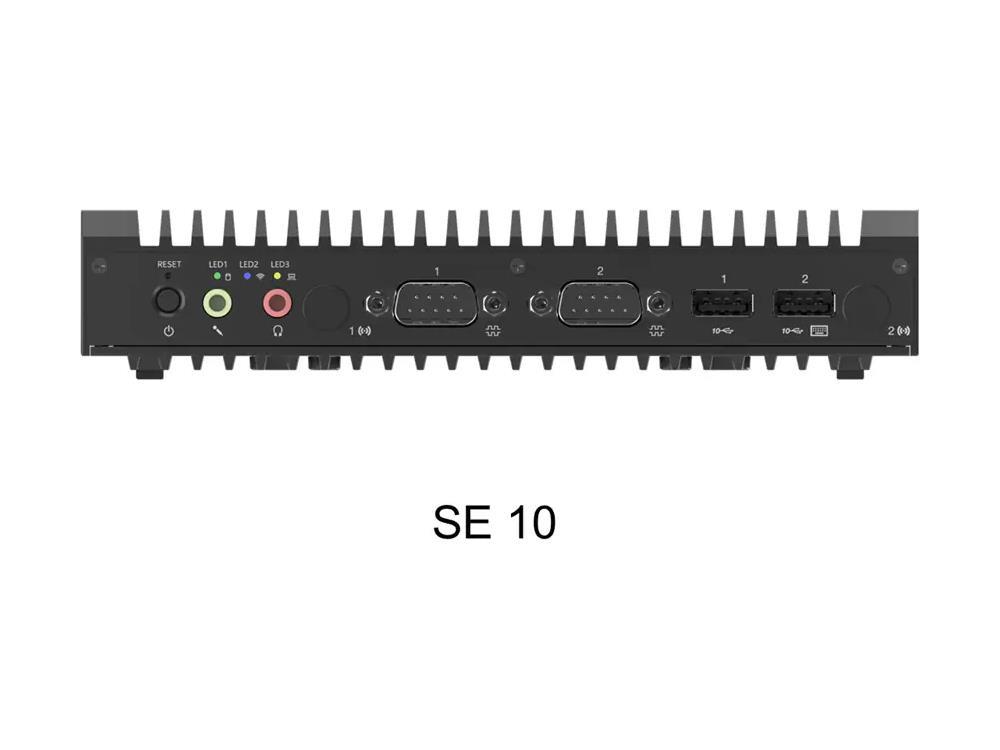

| Front I/O Ports | 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable) |

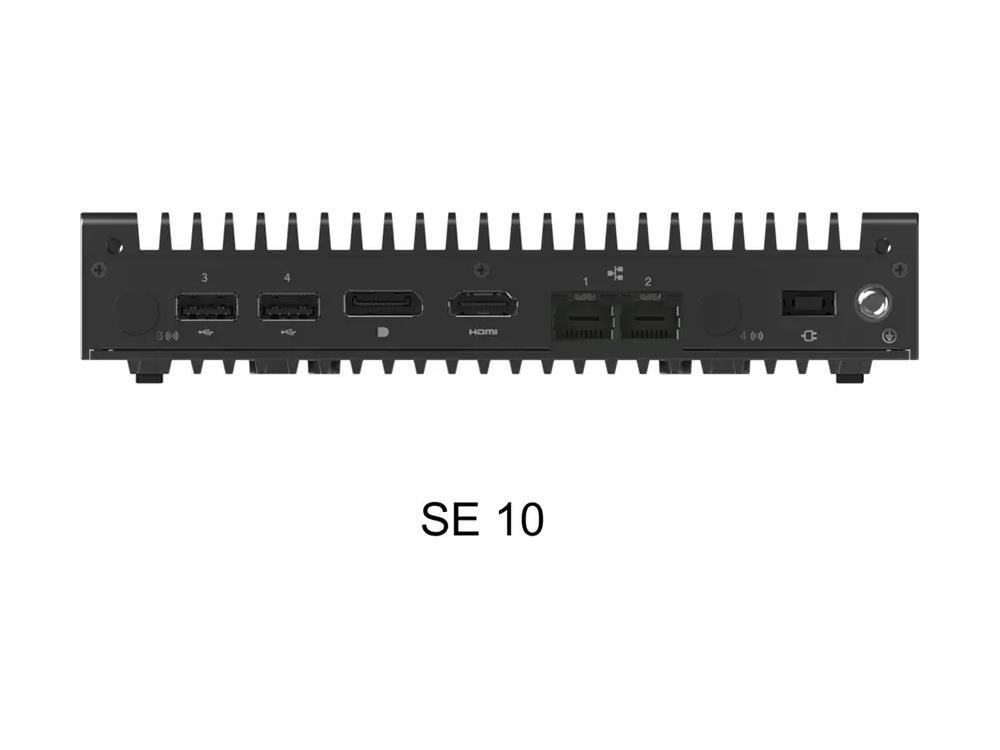

| Rear I/O Ports | 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.45 Inch |
| Weight | 2.6 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Memory | |
| Cache Memory Type | L2 Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified |
| COO | MEXICO |
| Processor | |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.9 GHz |
| Processor / Number | X6425RE |
| Cache Memory Type | L2 Cache |
| Cache Memory Installed Size | 1.5 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Expansion | |
| Interfaces & Connections | RJ-45, 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable), 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| Front I/O Ports | 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable) |
| Rear I/O Ports | 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| I/O | |
| Keyboard | None |
| Mouse | None |
| Networking | |
| Data Link Protocol | Gigabit Ethernet; Wi-Fi, Bluetooth |
| Power | |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 9-36V |
| Video | |
| Graphics Controller | Intel UHD Graphic |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.45 Inch |
| Weight | 2.6 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
