Lenovo
UPC:
197528817019
UNSPSC:
43211508
MFG:
12NK0010UT

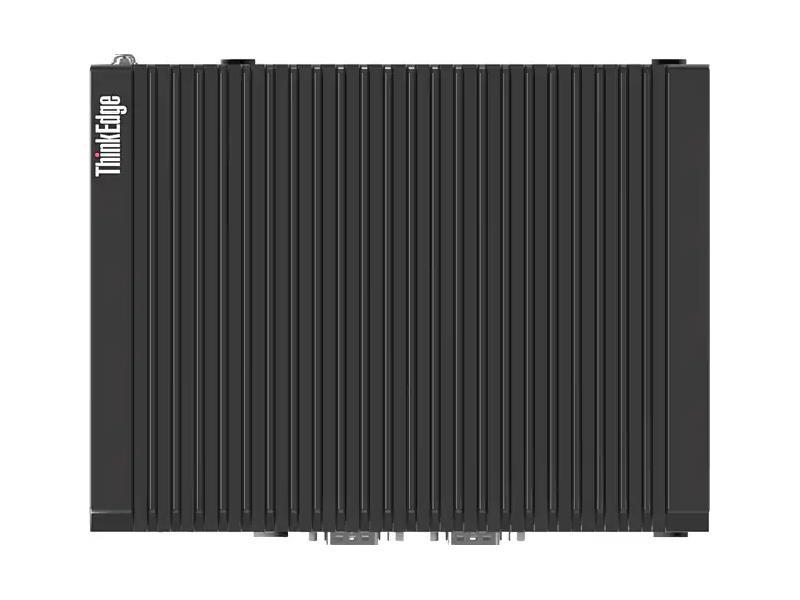

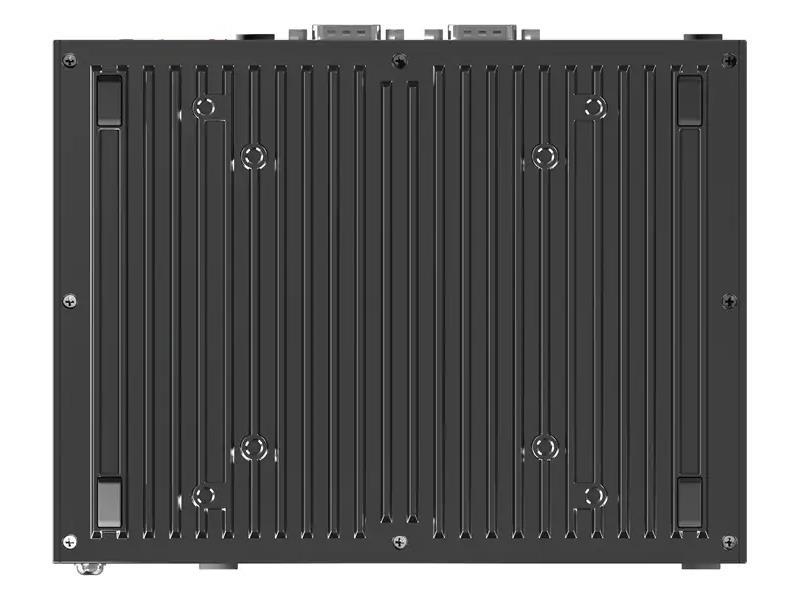

LENOVO DESKTOP TE SE10 X6214RE 64G W10IOT
Out of stock
THINKEDGE SE10 INTEL ATOM X6214RE 1.40GHZ WIN 10 IOT ENT 64 4.0GB 1X64GB EMMC 5.1 INTEL UHD GRAPH BT 5.1 OR ABOVE WLS 6E AX210 3 YR ON-SITE
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | THINKEDGE SE10 |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Dual-Core |
| Processor / Clock Speed | 1.4 GHz |
| Cache Memory Installed Size | 1.5 MB |
| Processor / Number | X6214RE |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 4 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Hard Drive / Type | eMMC |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | None GB |
| Optical Storage Type | None |
| Data Link Protocol | Gigabit Ethernet; Wi-Fi, Bluetooth |
| Graphics Controller | Intel UHD Graphic |
| Keyboard | None |
| Mouse | None |
| Operating System | Microsoft Windows 10 IoT Enterprise 64-bit |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 9-36V |
| Interfaces & Connections | RJ-45, 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable), 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |

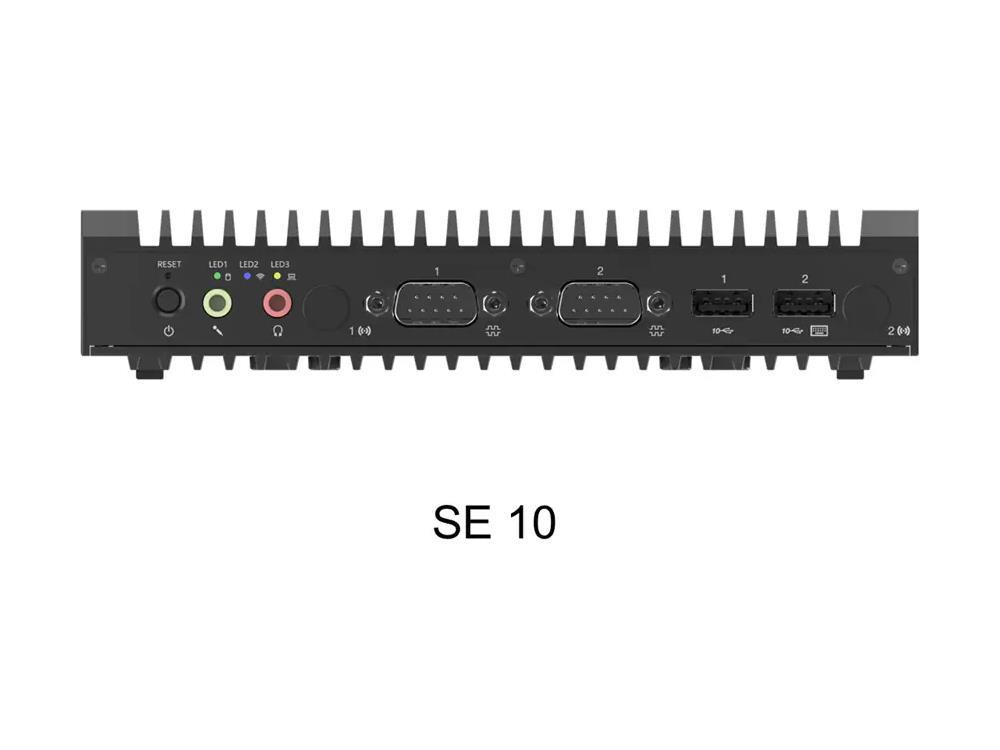

| Front I/O Ports | 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable) |

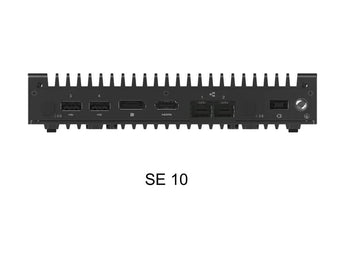

| Rear I/O Ports | 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.45 Inch |
| Weight | 2.6 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Memory | |
| Cache Memory Type | L2 Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 4 GB |
| RAM / Memory Speed | 3200 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 32 GB |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified |
| COO | MEXICO |
| Processor | |
| Processor / Type | Atom |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Dual-Core |
| Processor / Clock Speed | 1.4 GHz |
| Processor / Number | X6214RE |
| Processor / Installed Qty | 1 |
| Cache Memory Type | L2 Cache |
| Cache Memory Installed Size | 1.5 MB |
| Storage | |
| Hard Drive / Type | eMMC |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | None GB |
| Optical Storage Type | None |
| Expansion | |
| Interfaces & Connections | RJ-45, 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable), 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| Front I/O Ports | 2x USB 3.2 Gen 2, 1x line-out (3.5mm), 1x microphone (3.5mm), 3x LED (LED1: storage / LED2: Wireless / LED3: User defined or WWAN), 2x Serial (RS232 / RS422 / RS485, BIOS selectable) |
| Rear I/O Ports | 1x HDMI 1.4b, 1x DisplayPort 1.4, 2x USB 2.0, 2x 2.5GbE Ethernet (RJ-45), 1x Slim Tip power connector (SE10 only), 1x DC-in 3pin Phoenix connector for 9-36V WDC (SE10-I only), 1x 2pin remote power switch (SE10-I only) |
| I/O | |
| Keyboard | None |
| Mouse | None |
| Networking | |
| Data Link Protocol | Wi-Fi, Bluetooth; Gigabit Ethernet |
| Power | |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 9-36V |
| Video | |
| Graphics Controller | Intel UHD Graphic |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.04 Inch |
| Depth | 5.31 Inch |
| Height | 1.45 Inch |
| Weight | 2.6 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
