Lenovo
UPC:
198154604790
UNSPSC:
43211508
MFG:
12W10019US
LENOVO DESKTOP TC NEO ULTRA I514500 32G 1T W11P
Out of stock

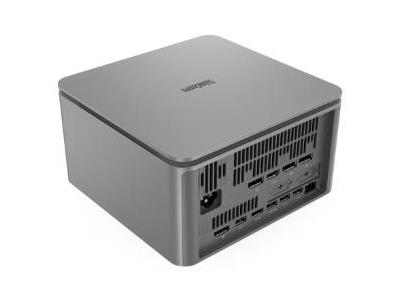

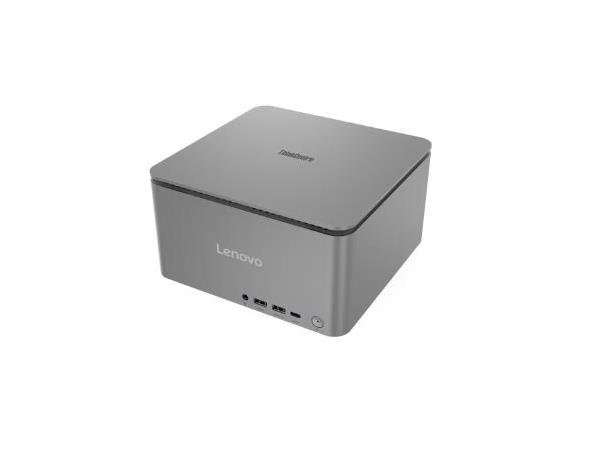

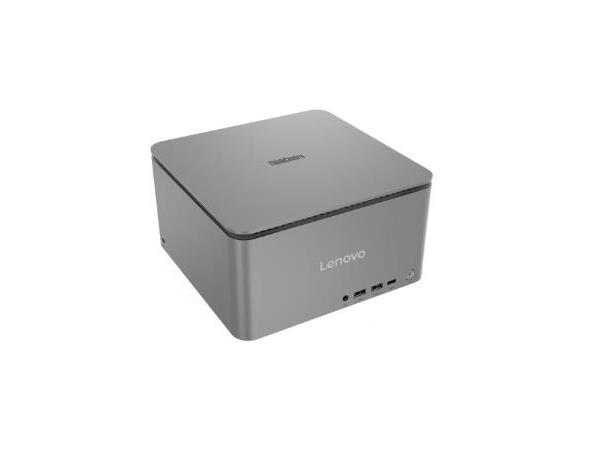

ThinkCentre neo Ultra, Intel Core i5-14500 vPro (E-cores up to 3.70GHz, 24MB), Discrete NPU Card (Kinara Ara-2), Windows 11 Pro 64, 32.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, BT 5.1 or above, IntelAX211vPro, 1 Year On-site, USB, Calliope, Black-English (US)
Product Specifications
| General | |
|---|---|
| Processor | Intel,Intel Core i5,Core i5 2.6,2.6MHz Smart Cache,Smart Cache 14500,14500 Cache Memory 24,24MB Max Turbo 5,5GHz |
| RAM | SODIMM,SODIMM DDR5,DDR5 Total Installed 32,32GB 4800,4800MHz Max Supported 64,64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | ThinkCentre neo Ultra |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 MHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio |
| Memory Card Reader | No card reader |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth; Gigabit Ethernet |
| Platform Technology | Intel vPro Enterprise |
| Graphics Controller | NVIDIA GeForce RTX 4060 |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 8 GB |
| Video Output Interface | Display Port; HDMI |
| GPU Installed Qty | 1 |
| Speakers | Yes |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Calliope Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 350 Watt |
| Efficiency | 92% |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports 5V@2.1A charging; 1x headphone / microphone combo jack (3.5mm) |

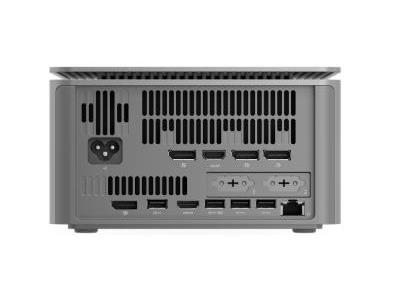

| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 1x HDMI 2.1a FRL; 4x DisplayPort 1.4a; 1x Ethernet (GbE RJ-45) |
| Expansion Slots Total (Free) | Four M.2 slots (one for WLAN, one for AI Card, two for SSD) |
| Width | 7.68 Inch |
| Depth | 7.52 Inch |
| Height | 4.25 Inch |
| Weight | 3.5 Kg |
| Enclosure Color | Luna Grey |
| Service & Support Type | 1-year, Onsite |
| Security Devices | Firmware TPM 2.0 integrated in chipset |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 MHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
| Expansion | |
| Expansion Slots Total (Free) | Four M.2 slots (one for WLAN, one for AI Card, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), one supports 5V@2.1A charging; 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 1x HDMI 2.1a FRL; 4x DisplayPort 1.4a; 1x Ethernet (GbE RJ-45) |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Calliope Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | Wi-Fi, Bluetooth; Gigabit Ethernet |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 350 Watt |
| Efficiency | 92% |
| Special Feature | |
| Security Devices | Firmware TPM 2.0 integrated in chipset |
| COO | MEXICO |
| Video | |
| Graphics Controller | NVIDIA GeForce RTX 4060 |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 8 GB |
| Video Output Interface | Display Port; HDMI |
| GPU Installed Qty | 1 |
| Dimensions&Miscellaneous | |
| Enclosure Color | Luna Grey |
| Width | 7.68 Inch |
| Depth | 7.52 Inch |
| Height | 4.25 Inch |
| Weight | 3.5 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
