Warranty: 3-year, Onsite

Lenovo

UPC: 198154902759
UNSPSC: 43211508
MFG: 12V20011US

LENOVO DESKTOP TC M90T GEN 5 I714700 64G N W11P

$2,913.90 $2,649.00 Save 9% Sold out
Out of stock

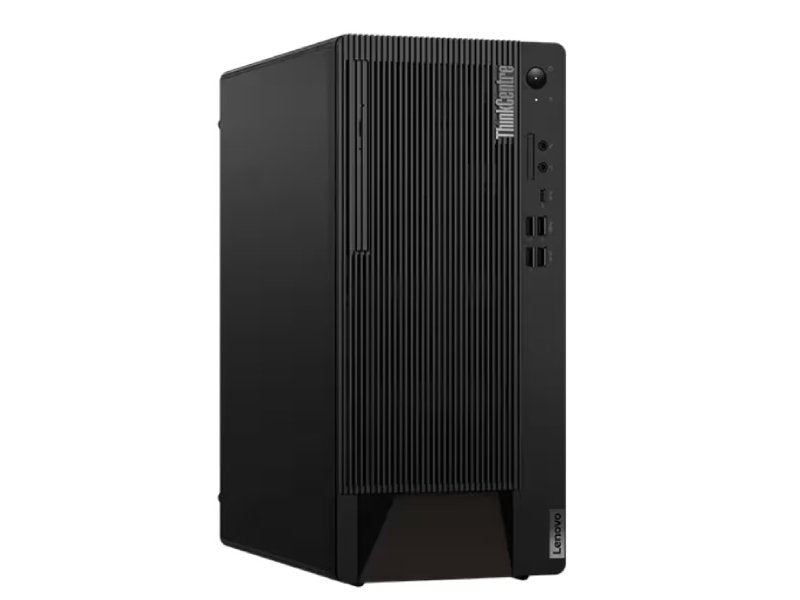

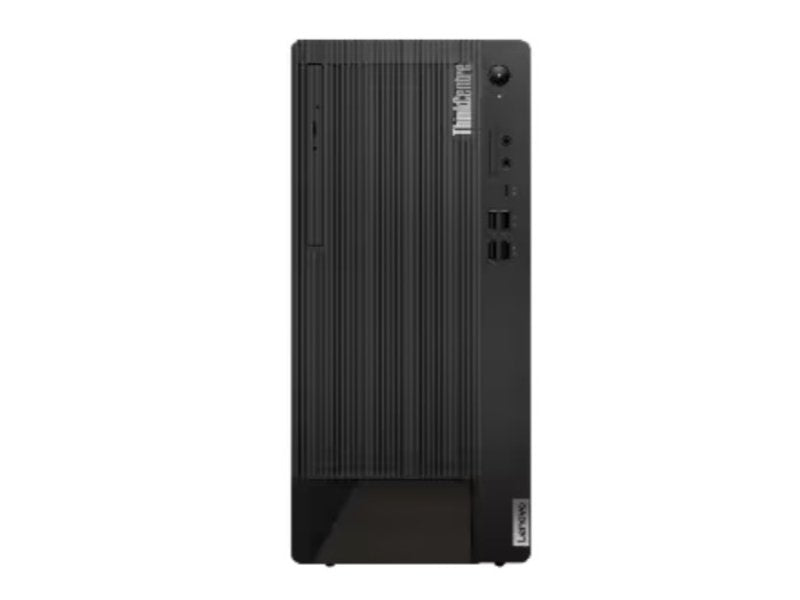

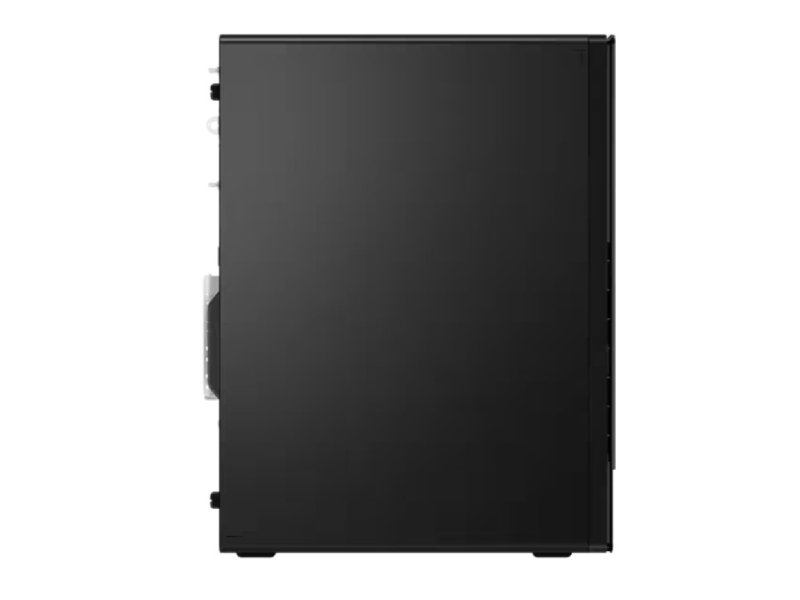

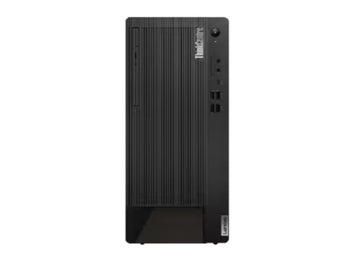

ThinkCentre M90t Gen 5, Intel Core i7-14700 vPro (E-cores up to 4.20GHz, 33MB), W11P64 ENG, 64.0GB, 1x1TB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO,BT 5.1 or above,IntelAX211vPro, 300W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)
Product Specifications
General
Processor Intel,Intel Core i7,Core i7 2.1,2.1GHz Smart Cache,Smart Cache 14700,14700 Cache Memory 33,33MB Max Turbo 5.3,5.3GHz
RAM UDIMM,UDIMM DDR5 UDIMM,DDR5 UDIMM Total Installed 64,64GB 4000,4000MHz Max Supported 128,128GB
Primary Information
System Type Personal Computer
Model ThinkCentre M90t Gen 5
Cabinet Form Factor Desktop
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Cache Memory Installed Size 33 MB
Max Turbo Frequency 5.3 GHz
Processor / Number 14700
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5 UDIMM
RAM / Total Slots Qty 4
RAM / Total Installed Size 64 GB
RAM / Memory Speed 4000 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Storage Controller Type PCIe 4.0 NVMe
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type DVDRW
Audio Output High Definition Audio
Storage Controller / Channel Qty 1
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
RAID Level None
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface HDMI
Speakers 1 x 2W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Efficiency 90%
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)

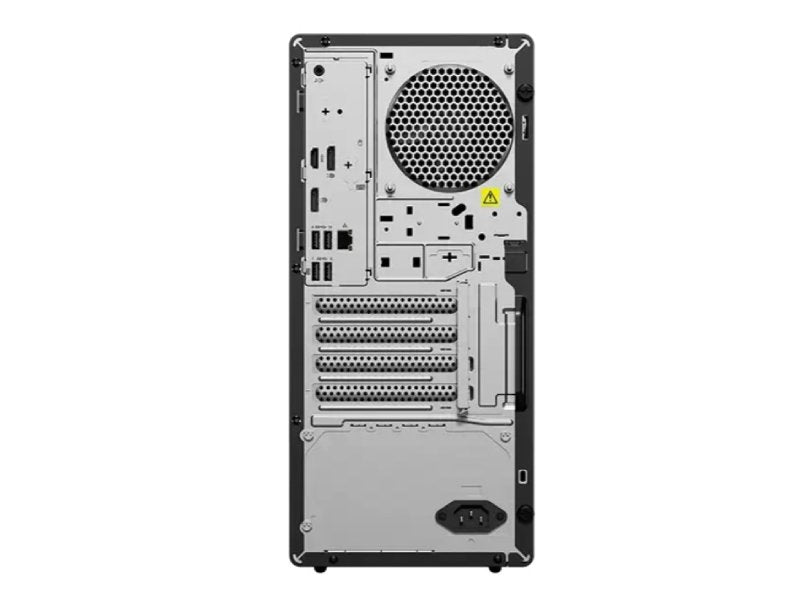

Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Expansion Bays Total (Free) None
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD)
Width 6.7 Inch
Depth 11.7 Inch
Height 14.8 Inch
Weight 14.3 lbs.
Enclosure Color Black
Service & Support Type 3-year, Onsite
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Stand None
Memory
Cache Memory Type Smart Cache
RAM / Total Slots Qty 4
RAM / Technology DDR5 UDIMM
RAM / Total Installed Size 64 GB
RAM / Memory Speed 4000 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i7
Processor / Manufacturer Intel
Multi-Core Technology 20-Core
Processor / Clock Speed 2.1 GHz
Max Turbo Frequency 5.3 GHz
Processor / Number 14700
Processor / Installed Qty 1
Processor / Max Supported Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 33 MB
Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 1 TB
SSD / Installed Qty 1
Optical Storage Type DVDRW
Storage Controller Type PCIe 4.0 NVMe
Hard Drive / Capacity (2nd) None GB
RAID Level None
Expansion
Expansion Bays Total (Free) None
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English
Networking
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Network Controller Intel Wi-Fi 6E
Power
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Efficiency 90%
Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface HDMI
Dimensions&Miscellaneous
Enclosure Color Black
Width 6.7 Inch
Depth 11.7 Inch
Height 14.8 Inch
Weight 14.3 lbs.
UNSPSC Code
UNSPSC Code 43211508
