Lenovo
UPC:
198154902810
UNSPSC:
43211508
MFG:
12V2001ECA
LENOVO DESKTOP TC M90T GEN 5 I714700 32G N W11P
Out of stock

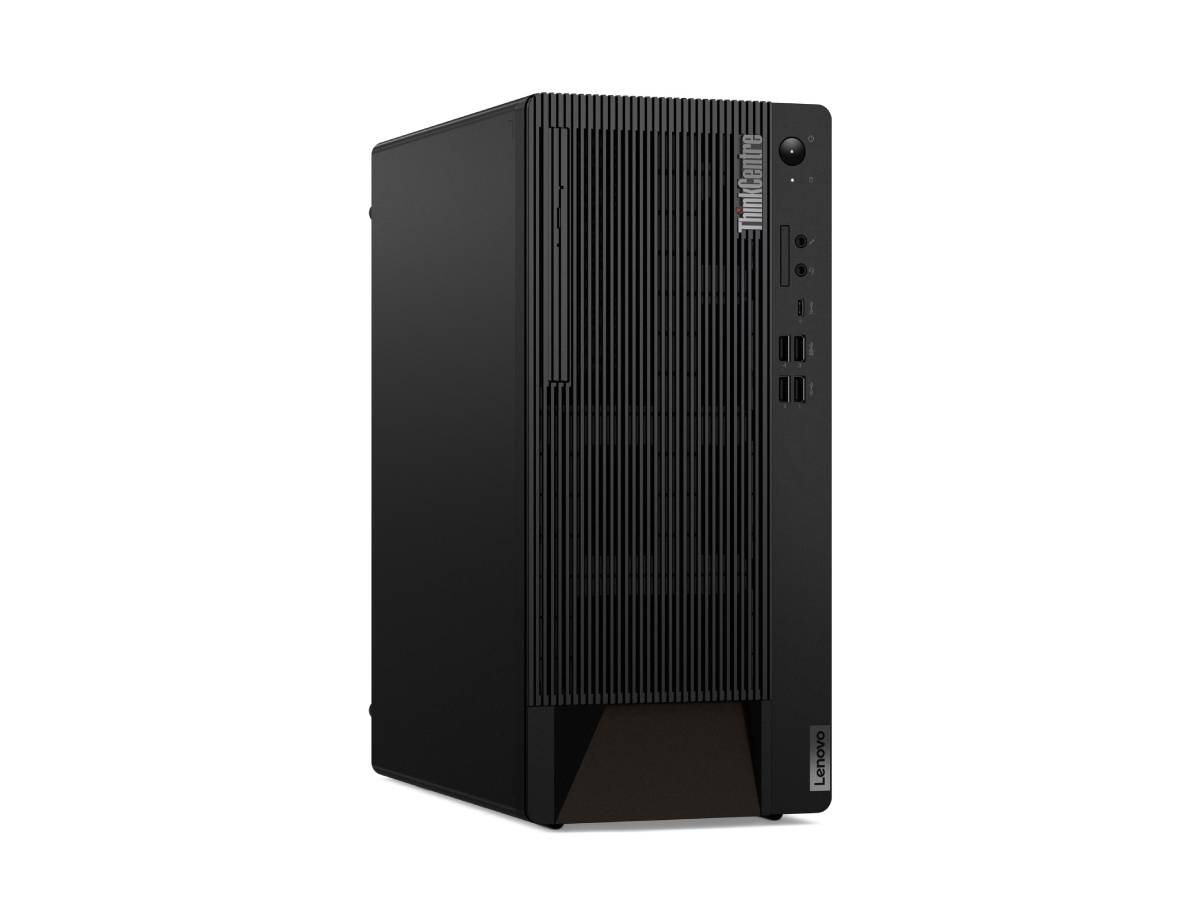

ThinkCentre M90t Gen 5 - Tower - Intel - Core i7 - Processor / Number: 14700 - 20-Core - 5.4GHz - DDR5 - 32GB RAM - 4400MHz - 512GB SSD - DVD+/-RW - AMD Radeon RX 6600 LE - Power Supply - 300Watt - Intel Wi-Fi 6E AX211 - IEEE 802.11 ax, Bluetooth 5.3 - Keyboard, Mouse - Black - Microsoft Windows 11 Professional - 3-year, Onsite
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | ThinkCentre M90t Gen 5 |
| Cabinet Form Factor | Tower |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 2 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC897Q-CG codec |
| Memory Card Reader | None |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Graphics Controller | AMD Radeon RX 6600 LE |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 6 GB |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | French |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Efficiency | 90% |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |

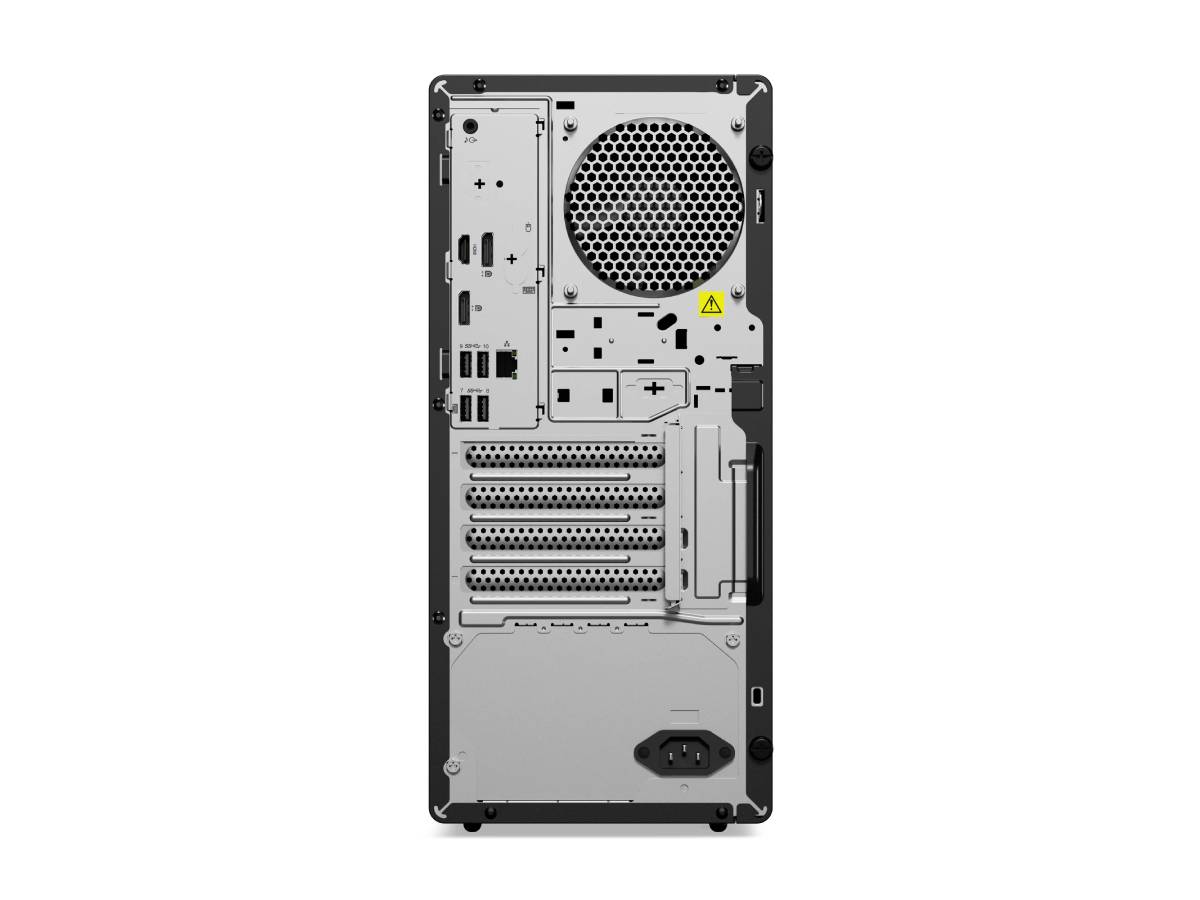

| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD) |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 6.5 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Intel vPro Enterprise |
| Stand | None |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4400 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 128 GB |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| Green Product Information | |
| EPEAT Level | Gold |
| Energy Star Compliant | Yes |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+/-RW |
| Expansion | |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | French |
| Networking | |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 300 Watt |
| Efficiency | 90% |
| Video | |
| Graphics Controller | AMD Radeon RX 6600 LE |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 6 GB |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 6.7 Inch |
| Depth | 11.7 Inch |
| Height | 14.8 Inch |
| Weight | 6.5 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
