Warranty: 3-year, Onsite

Lenovo

UPC: 198153679423
UNSPSC: 43211508
MFG: 12V20008US

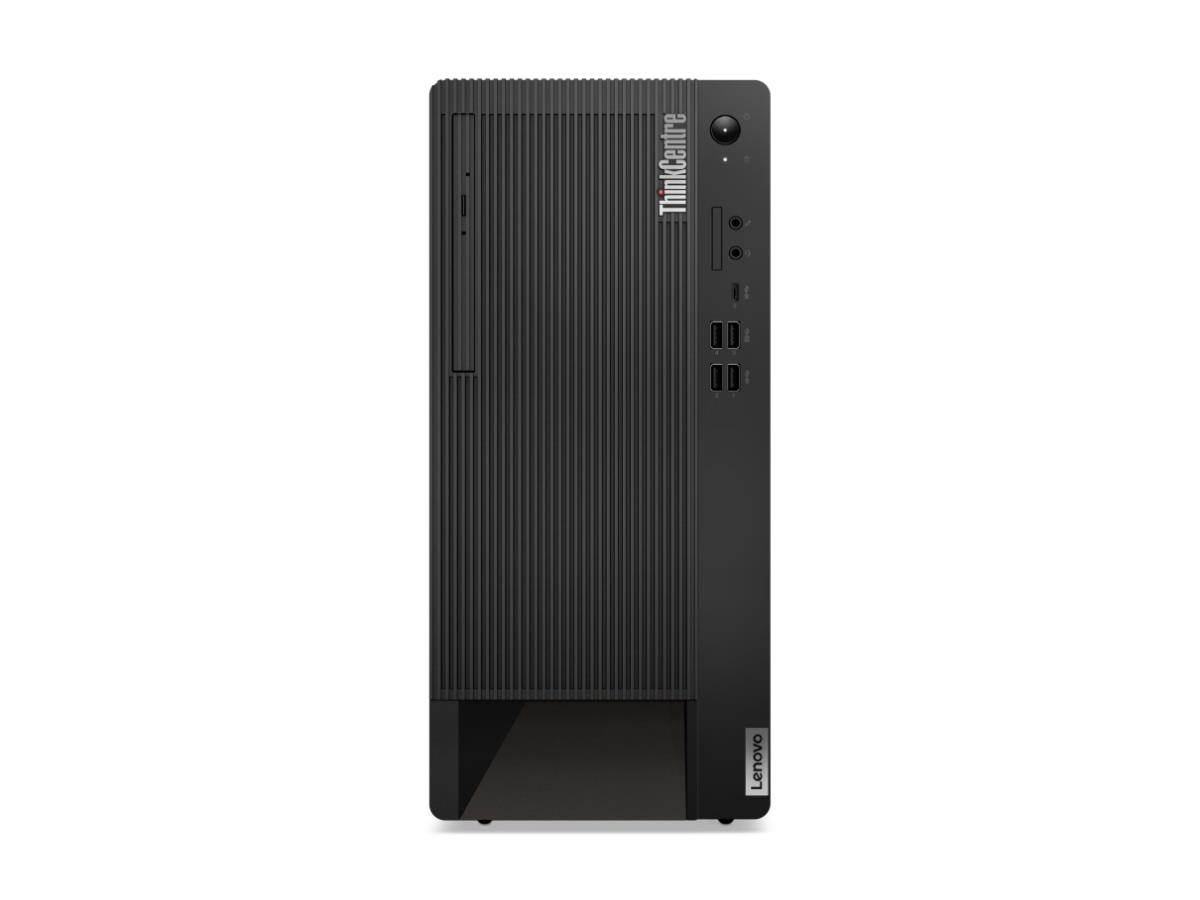

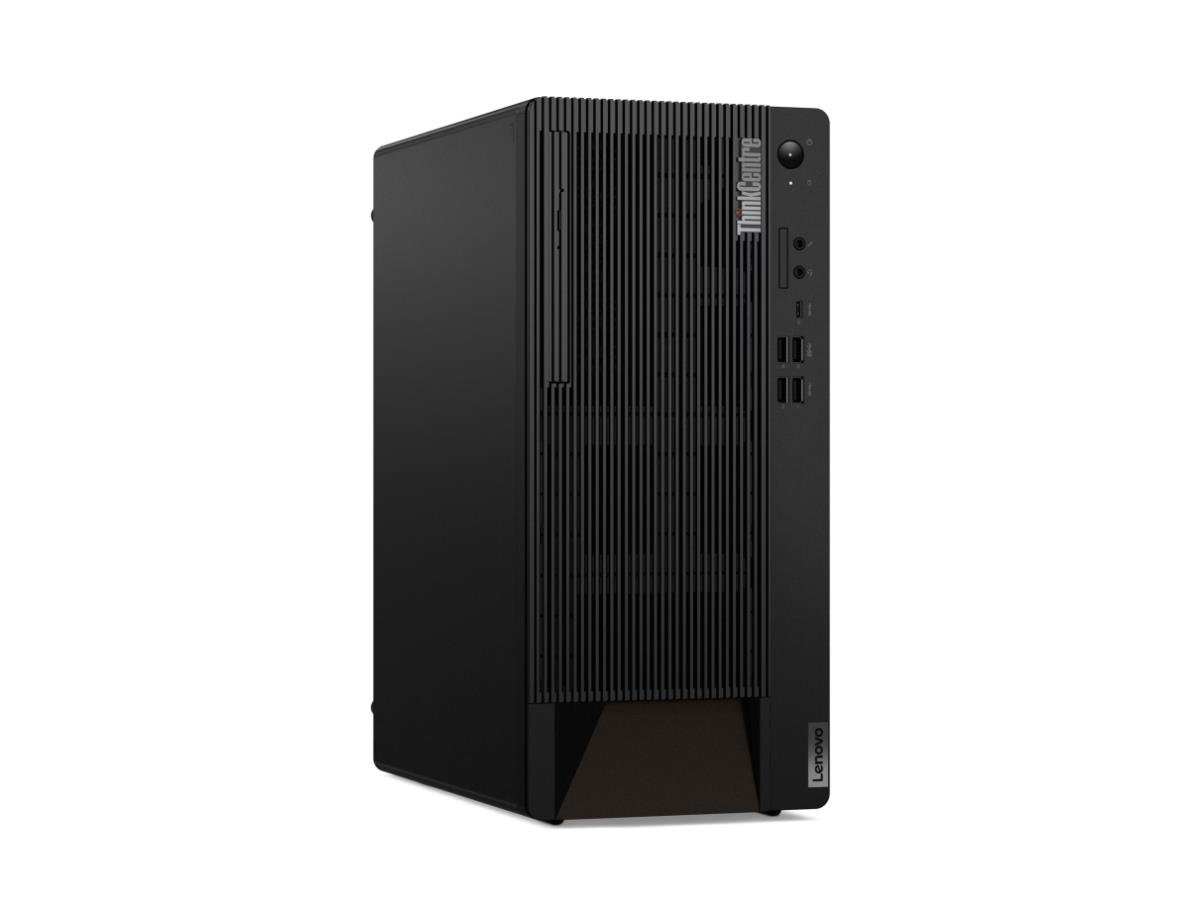

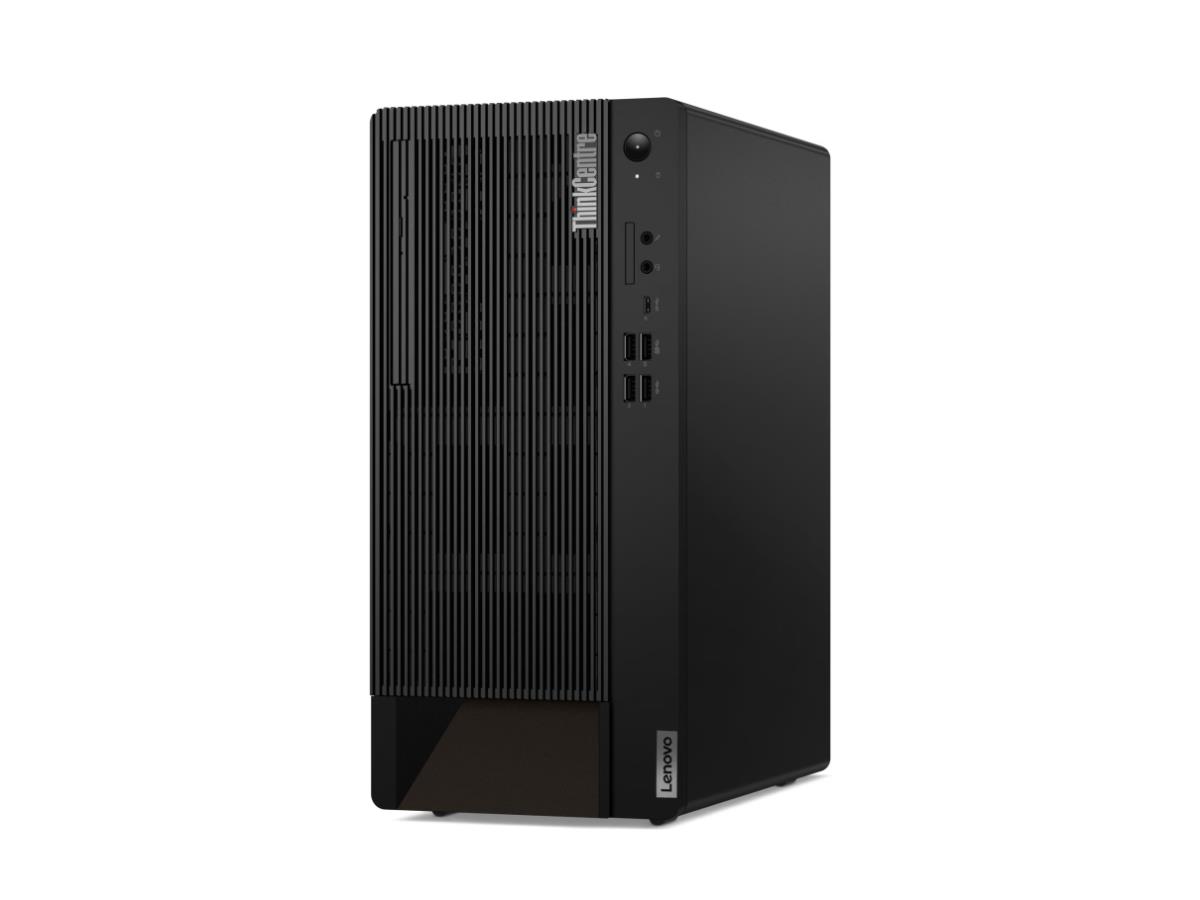

LENOVO DESKTOP TC M90T GEN 5 I514500 32G N W11P

$2,165.90 $1,969.00 Save 9% Sold out
Out of stock

ThinkCentre M90t Gen 5, Intel Core i5-14500 vPro (E-cores up to 3.70GHz, 24MB), W11P64 ENG, 32.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO,BT 5.1 or above,IntelAX211vPro, 300W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)
Product Specifications
General
Processor Intel,Intel Core i5,Core i5 2.6,2.6GHz Smart Cache,Smart Cache 14500,14500 Cache Memory 24,24MB Max Turbo 5,5GHz
RAM UDIMM,UDIMM DDR5,DDR5 Total Installed 32,32GB 4400,4400MHz Max Supported 128,128GB
Primary Information
System Type Personal Computer
Model ThinkCentre M90t Gen 5
Cabinet Form Factor Tower
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Cache Memory Installed Size 24 MB
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
RAM / Installed Qty 2
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 4
RAM / Total Installed Size 32 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type DVD+/-RW
Audio Output High Definition (HD) Audio, Realtek ALC897Q-CG codec
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.3
Video Output Type HDMI, Display Port
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 2W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 90%
Interfaces & Connections 1x DP 1.2 (Flex IO)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)

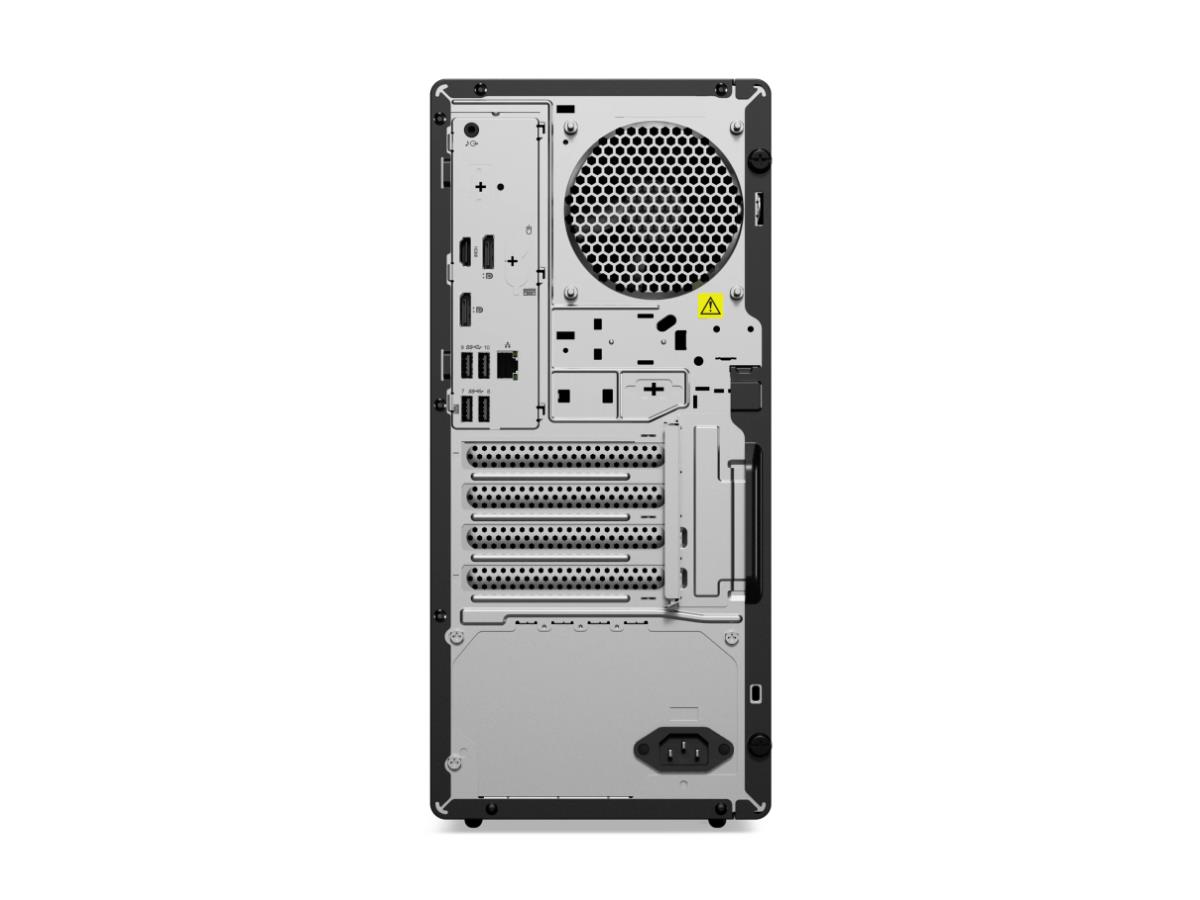

Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD)
Width 6.7 Inch
Depth 11.7 Inch
Height 14.8 Inch
Weight 6.5 Kg
Enclosure Color Black
Service & Support Type 3-year, Onsite
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified;Physical Locks
Features Environmental Sustainability
Stand None
Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 2
RAM / Total Slots Qty 4
RAM / Technology DDR5
RAM / Total Installed Size 32 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Special Feature
RoHS Y
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified;Physical Locks
COO MEXICO
Green Product Information
TCO Certified TCO Certified 9.0
EPEAT Level Gold
Energy Star Compliant Yes
Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 24 MB
Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 512 GB
SSD / Installed Qty 1
Optical Storage Type DVD+/-RW
Storage Controller Type PCIe 4.0x4 NVMe
Hard Drive / Capacity (2nd) None GB
Expansion
Interfaces & Connections 1x DP 1.2 (Flex IO)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), full-height, length 205mm, height 114.55mm One PCIe 4.0 x16, full-height, length 268.5mm, height 114.55mm One PCIe 3.0 x1, full-height, length 205mm, height 114.55mm Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging 2x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm)
I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black, English
Mouse USB Calliope Mouse, Black
Keyboard Language English
Networking
Data Link Protocol Gigabit Ethernet, IEEE 802.11 ax, Bluetooth 5.3
Power
Power / Device Type Power Supply
Power / Provided (W) 300 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 90%
Video
Video Output Type HDMI, Display Port
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Dimensions&Miscellaneous
Enclosure Color Black
Width 6.7 Inch
Depth 11.7 Inch
Height 14.8 Inch
Weight 6.5 Kg
