Warranty: 3-year, Onsite

Lenovo

UPC: 198153682003
UNSPSC: 43211508
MFG: 12V40001US

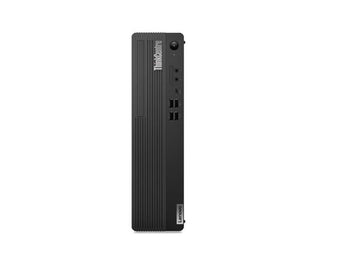

LENOVO DESKTOP TC M90S GEN 5 I914900 16G N W11P

$2,803.90 $2,549.00 Save 9% Sold out
Out of stock

ThinkCentre M90s Gen 5, Intel Core i9-14900 vPro (E-cores up to 4.30GHz, 36MB), Windows 11 Pro 64, 16.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO, BT 5.1 or above, Intel AX211vPro, 3 Year On-site, USB, Traditional, Black-English (US)
Product Specifications
Primary Information
System Type Personal Computer
Model ThinkCentre M90s Gen 5
Cabinet Form Factor Small Form Factor
Processor / Generation Intel 14th Generation
Processor / Type Core i9
Processor / Manufacturer Intel
Multi-Core Technology 24-Core
Max Turbo Frequency 5.8 GHz
Cache Memory Installed Size 36 MB
Processor / Number 14900
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 4
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Hard Drive / Type SSD
Hard Drive / Interface Type PCIe NVMe
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type Slim DVD RAMBO
Memory Card Reader None
Data Link Protocol Gigabit Ethernet; Wi-Fi, Bluetooth
Graphics Controller Intel UHD Graphics 770
Max Monitors Supported 4
Speakers Yes
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Operating System Microsoft Windows 11 Professional 64-bit
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 92%
Interfaces & Connections Integrated 100/1000M; Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1);4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD)
Width 92.5 Mm
Depth 297.7 Mm
Height 339.5 Mm
Weight 5.3 Kg
Enclosure Color Black
Service & Support Type 3-year, Onsite
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Memory
Cache Memory Type Smart Cache
RAM / Total Slots Qty 4
RAM / Technology DDR5
RAM / Total Installed Size 16 GB
RAM / Memory Speed 4400 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 128 GB
Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i9
Processor / Manufacturer Intel
Multi-Core Technology 24-Core
Max Turbo Frequency 5.8 GHz
Processor / Number 14900
Cache Memory Type Smart Cache
Cache Memory Installed Size 36 MB
Storage
Hard Drive / Type SSD
Hard Drive / Interface Type PCIe NVMe
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type Slim DVD RAMBO
Expansion
Interfaces & Connections Integrated 100/1000M; Front Ports: 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1);4x USB-A (USB 5Gbps / USB 3.2 Gen 1) 1x HDMI 2.1 TMDS 2x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (RJ-45) 1x line-out (3.5mm) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); Rear Ports: 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
Expansion Slots Total (Free) One PCIe 4.0 x16 (x4 signal), low-profile, length <=155mm, height <=70mm; One PCIe 4.0 x16, low-profile, length 155mm, height <=70mm; One PCIe 3.0 x1, low-profile, length 155mm, height <=70mm; Three M.2 slots (one for WLAN, two for SSD)
Front I/O Ports 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), with 15W charging; 2x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm)
I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard, Black
Mouse USB Calliope Mouse, Black
Keyboard Language English
Networking
Data Link Protocol Wi-Fi, Bluetooth; Gigabit Ethernet
Power
Power / Device Type Power Supply
Power / Provided (W) 310 Watt
Power / Voltage Required 100-240V, 50-60Hz
Efficiency 92%
Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
Video
Graphics Controller Intel UHD Graphics 770
Dimensions&Miscellaneous
Enclosure Color Black
Width 92.5 Mm
Depth 297.7 Mm
Height 339.5 Mm
Weight 5.3 Kg
UNSPSC Code
UNSPSC Code 43211508
