Lenovo
UPC:
198153869701
UNSPSC:
43211508
MFG:
12TH000QCA

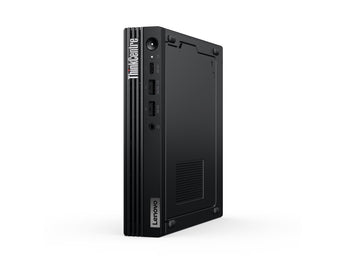

LENOVO DESKTOP TC M90Q GEN 5 I914900 16G 512G W
Out of stock
ThinkCentre M90q Gen 5 - Tiny - Intel - Core i9 - Processor / Number: 14900 - Processor / Clock Speed: 2 - 24-Core - Max Turbo Frequency: 5.8 - DDR5 - RAM / Total Installed Size: 16 RAM - RAM / Memory Speed: 5600 - 512GB SSD - Intel UHD Graphics 770 - Power Adapter - Power / Provided (W): 230 - Intel Wi-Fi 6E AX211 - IEEE 802.11 ax, Bluetooth 5.3 - Keyboard - Black - Microsoft Windows 11 Professional - 3-year, Onsite
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | ThinkCentre M90q Gen 5 |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i9 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 24-Core |
| Processor / Clock Speed | 2 GHz |
| Cache Memory Installed Size | 36 MB |
| Max Turbo Frequency | 5.8 GHz |
| Processor / Number | 14900 |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio, Realtek ALC233 codec |
| Storage Controller / Channel Qty | 2 |
| Memory Card Reader | No |
| Hard Drive / Capacity (2nd) | None GB |
| RAID Level | None |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Graphics Controller | Intel UHD Graphics 770 |
| Max Monitors Supported | 4 |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard |
| Keyboard Language | French |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Efficiency | 89% |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x HDMI 2.1 TMDS 1x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (GbE RJ-45) |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile Two M.2 PCIe Gen 4x4 slots (for SSD) One M.2 slot (for WLAN) |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 with rubber feet Inch |
| Weight | 2.76 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | No fingerprint reader |
| Stand | Yes |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| Green Product Information | |
| TCO Certified | TCO Certified 9.0 |
| EPEAT Level | Gold |
| Energy Star Compliant | Y |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i9 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 24-Core |
| Processor / Clock Speed | 2 GHz |
| Max Turbo Frequency | 5.8 GHz |
| Processor / Number | 14900 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 36 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Capacity (2nd) | None GB |
| RAID Level | None |
| Expansion | |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile Two M.2 PCIe Gen 4x4 slots (for SSD) One M.2 slot (for WLAN) |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging 1x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On 1x USB-A (USB 5Gbps / USB 3.2 Gen 1) 2x USB-A (USB 10Gbps / USB 3.2 Gen 2) 1x HDMI 2.1 TMDS 1x DisplayPort 1.4a (HBR2, DSC) 1x Ethernet (GbE RJ-45) |
| I/O | |
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | French |
| Networking | |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E AX211 |
| Power | |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Efficiency | 89% |
| Video | |
| Graphics Controller | Intel UHD Graphics 770 |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 with rubber feet Inch |
| Weight | 2.76 lbs. |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
