Lenovo
UPC:
198153870998
UNSPSC:
43211508
MFG:
12TH000FUS

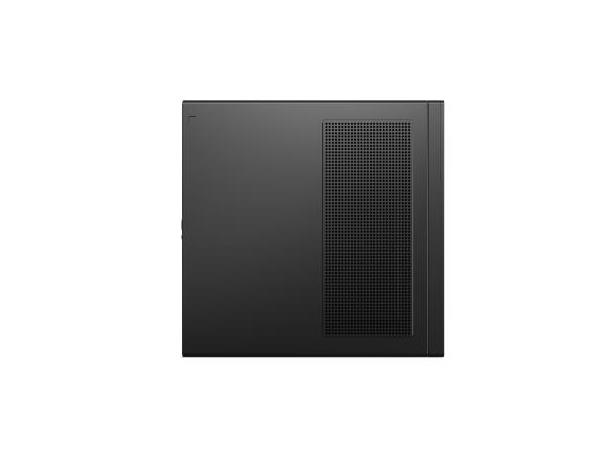

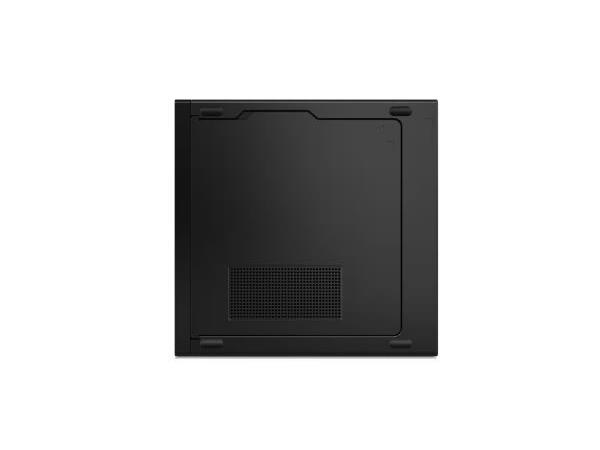

LENOVO DESKTOP TC M90Q GEN 5 I714700 16G 256G W
Out of stock
ThinkCentre M90q Gen 5, Intel Core i7-14700 vPro (E-cores up to 4.20GHz, 33MB), W11P64 ENG, 16.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770,BT 5.1 or above,IntelAX211vPro, 230W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)
Product Specifications
| General | |
|---|---|
| Processor | Intel,Intel Core i7,Core i7 2.1,2.1GHz Smart Cache,Smart Cache 14700,14700 Cache Memory 33,33MB Max Turbo 5.4,5.4GHz |
| RAM | SODIMM,SODIMM DDR5,DDR5 Total Installed 16,16GB 5600,5600MHz Max Supported 64,64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | ThinkCentre M90q Gen 5 |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio, Realtek ALC233 codec |
| Memory Card Reader | No card reader |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Efficiency | 89% |
| Interfaces & Connections | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |

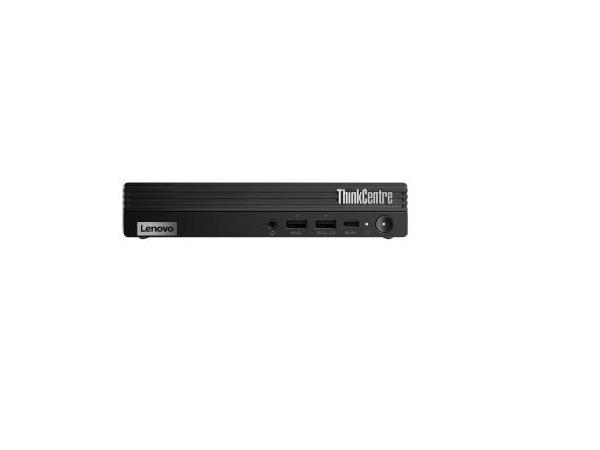

| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |

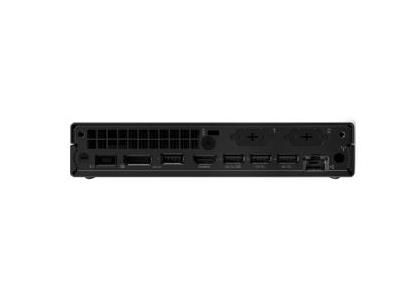

| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN) |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 1.25 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3 Year On-site |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Stand | Yes |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
| Expansion | |
| Interfaces & Connections | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile; Two M.2 PCIe Gen 4x4 slots (for SSD); One M.2 slot (for WLAN) |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On; 1x USB-A (USB 5Gbps / USB 3.2 Gen 1); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (GbE RJ-45) |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Power | |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Efficiency | 89% |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| Video | |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port, HDMI |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 1.25 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
