Lenovo
UPC:
198153873470
UNSPSC:
43211508
MFG:
12TH0011CA
LENOVO DESKTOP TC M90Q GEN 5 I514500 32G 256G W
Out of stock
ThinkCentre M90q Gen 5 - Tiny - Intel - Core i5 - Processor / Number: 14500 - 1.9GHz - 14-Core - 3.7GHz - DDR5 - 32GB RAM - 4800MHz - No Hard Drive Capacity / HDD HDD - No Hard Drive / Spindle Speed - 256GB SSD - Intel UHD Graphics 770 - Power Supply - 135Watt - Intel Wi-Fi 6E - IEEE 802.11 ax, Bluetooth 5.3 - Keyboard, Mouse - Black - Microsoft Windows 11 Professional - 3-year, Onsite
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | ThinkCentre M90q Gen 5 |
| Cabinet Form Factor | Tiny |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 1.9 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 3.7 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Audio Output | High Definition (HD) Audio, Realtek ALC233 codec |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E |
| Platform Technology | Intel vPro Enterprise |
| Graphics Controller | Intel UHD Graphics 770 |
| Speakers | 1 x 2W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | French |
| Keyboard | USB Traditional Keyboard |
| Mouse | USB Calliope Mouse |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 135 Watt |
| Efficiency | 90% |

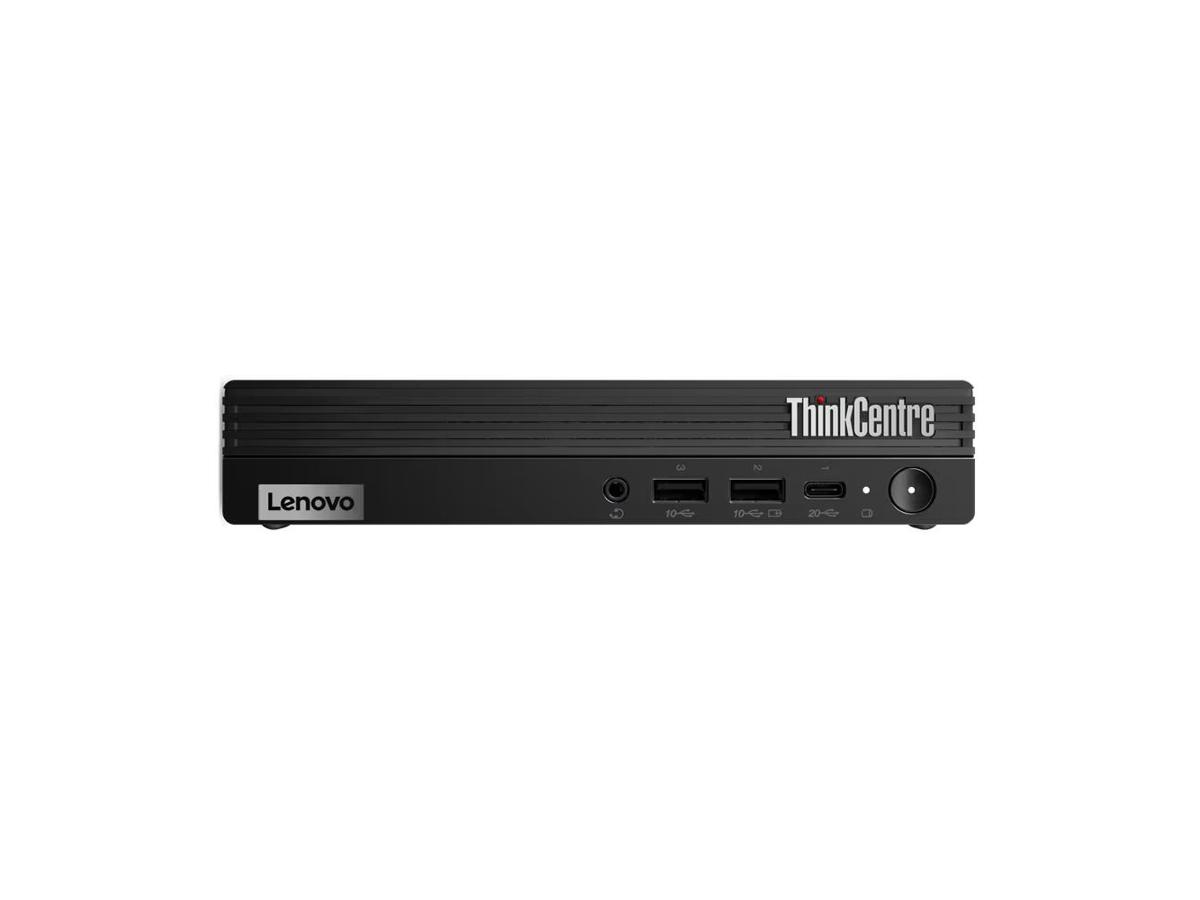

| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), |

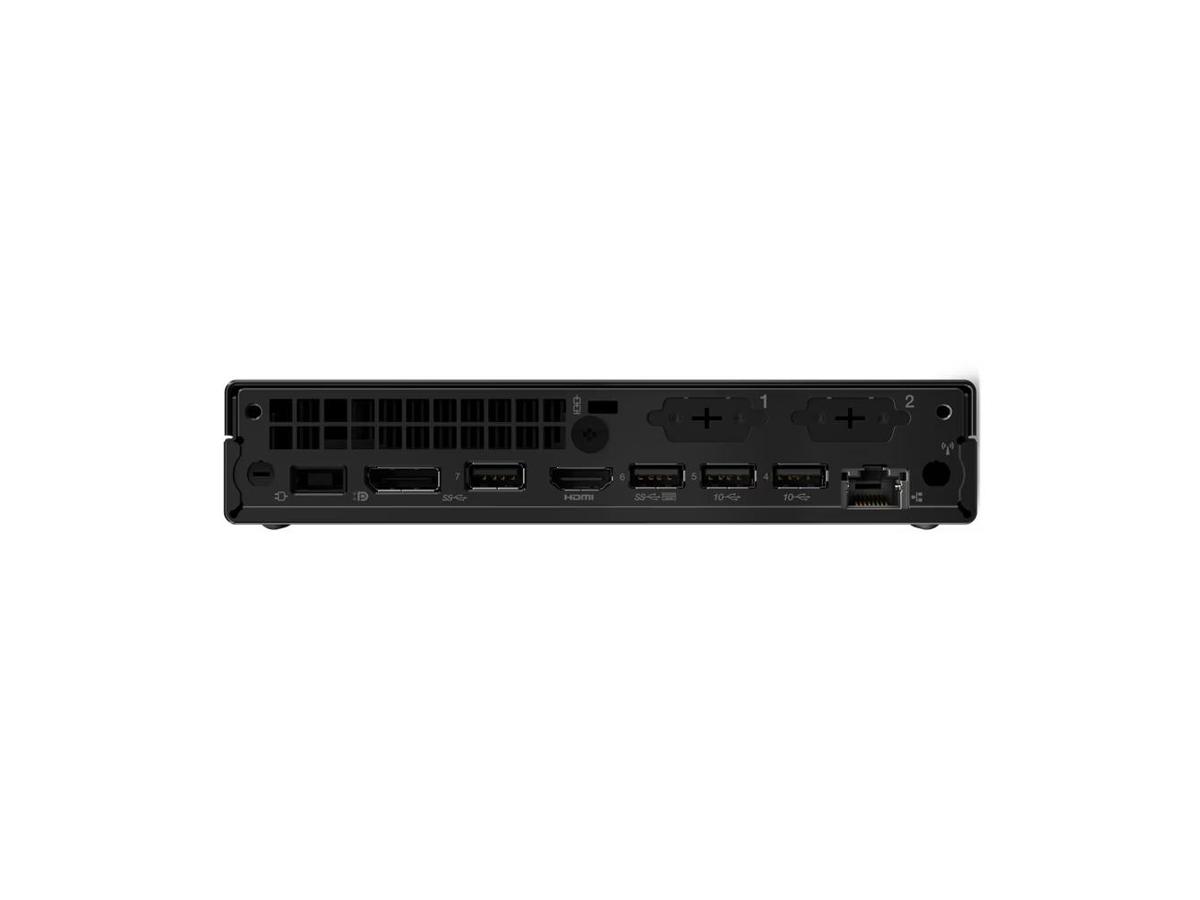

| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On, 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (GbE RJ-45), |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile, Two M.2 PCIe Gen 4x4 slots (for SSD), One M.2 slot (for WLAN), |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 1.25 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0 |
| Stand | Yes |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Memory Speed | 4800 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 1.9 GHz |
| Max Turbo Frequency | 3.7 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Storage Controller Type | PCIe 4.0x4 NVMe |
| Expansion | |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile, Two M.2 PCIe Gen 4x4 slots (for SSD), One M.2 slot (for WLAN), |
| Front I/O Ports | 1x USB-C (USB 20Gbps / USB 3.2 Gen 2x2), data transfer only, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), with Always On and 5V@2.1A charging, 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x headphone / microphone combo jack (3.5mm), |
| Rear I/O Ports | 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), with Smart Power On, 1x USB-A (USB 5Gbps / USB 3.2 Gen 1), 2x USB-A (USB 10Gbps / USB 3.2 Gen 2), 1x HDMI 2.1 TMDS, 1x DisplayPort 1.4a (HBR2, DSC), 1x Ethernet (GbE RJ-45), |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard |
| Mouse | USB Calliope Mouse |
| Keyboard Language | French |
| Networking | |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Network Controller | Intel Wi-Fi 6E |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 135 Watt |
| Efficiency | 90% |
| Special Feature | |
| Security Devices | Discrete TPM 2.0 |
| COO | MEXICO |
| Video | |
| Graphics Controller | Intel UHD Graphics 770 |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 7.2 Inch |
| Height | 1.44 Inch |
| Weight | 1.25 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
