Lenovo
UPC:
198155138836
UNSPSC:
43211508
MFG:
11AM001YUS
LENOVO DESKTOP TC M90N-1 I58365U 8G 256 W10IOT
Out of stock

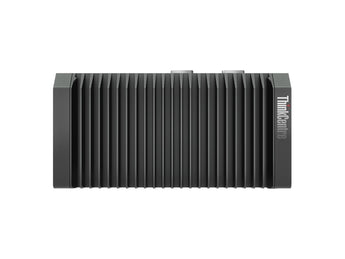

ThinkCentre M90n-1 Nano IoT - Intel - Core i5 - 8365U - 1.6GHz - Quad-Core - 4.1GHz - DDR4 - 8GB RAM - 2666MHz - 256GB SSD - Intel UHD Graphic - Power Supply - 65Watt - IEEE 802.11 ac, Bluetooth 5.0 - Keyboard - Black - Microsoft Windows 10 IoT Enterprise LTSC 2019 - 1-year
Product Specifications
| Primary Information | |
|---|---|
| System Type | Personal Computer |
| Model | ThinkCentre M90n-1 Nano IoT |
| Cabinet Form Factor | Nano |
| Processor / Generation | Intel 8th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.6 GHz |
| Cache Memory Installed Size | 6 MB |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 8365U |
| Processor / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel SoC Platform |
| RAM / Technology | DDR4 |
| RAM / Total Slots Qty | Not Included |
| RAM / Total Installed Size | 8 GB |
| RAM / Memory Speed | 2666 MHz |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Optical Storage Type | None |
| Audio Output | High Definition (HD) Audio, Realtek ALC233VB codec |
| Memory Card Reader | No card reader |
| Data Link Protocol | IEEE 802.11 ac, Bluetooth 5.0 |
| Graphics Controller | Intel UHD Graphic |
| Max Monitors Supported | 2 |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 10 IoT Enterprise LTSC 2019 |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240 VAC |
| Efficiency | 88% |
| Front I/O Ports | 1x USB-C 3.2 Gen 2 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS-232) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2 (support display function and power-in [20V and >45W]) 1x USB 3.2 Gen 2 (for i3 / i5 models only) 1x DisplayPort (for 4205U / 4305UE / 8145U / 8365U models) 2x Ethernet (RJ-45, for i3 / i5 models) |
| Expansion Slots Total (Free) | Three M.2 slots (one for WLAN, two for SSD) |
| Width | 7.05 Inch |
| Depth | 3.46 Inch |
| Height | 1.36 Inch |
| Weight | 1.58 lbs. |
| Enclosure Color | Black |
| Service & Support Type | 1-year |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Stand | None |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Total Slots Qty | Not Included |
| RAM / Technology | DDR4 |
| RAM / Total Installed Size | 8 GB |
| RAM / Memory Speed | 2666 MHz |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified |
| COO | MEXICO |
| Green Product Information | |
| TCO Certified | Yes |
| EPEAT Level | Silver |
| Energy Star Compliant | Y |
| Processor | |
| Processor / Generation | Intel 8th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 1.6 GHz |
| Max Turbo Frequency | 4.1 GHz |
| Processor / Number | 8365U |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 6 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Optical Storage Type | None |
| Expansion | |
| Expansion Slots Total (Free) | Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C 3.2 Gen 2 2x USB 3.2 Gen 2 1x headphone / microphone combo jack (3.5mm) 2x serial (RS-232) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2 (support display function and power-in [20V and >45W]) 1x USB 3.2 Gen 2 (for i3 / i5 models only) 1x DisplayPort (for 4205U / 4305UE / 8145U / 8365U models) 2x Ethernet (RJ-45, for i3 / i5 models) |
| I/O | |
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | IEEE 802.11 ac, Bluetooth 5.0 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 65 Watt |
| Power / Voltage Required | 100-240 VAC |
| Efficiency | 88% |
| Video | |
| Graphics Controller | Intel UHD Graphic |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 7.05 Inch |
| Depth | 3.46 Inch |
| Height | 1.36 Inch |
| Weight | 1.58 lbs. |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
