Lenovo
UPC:
198153584161
UNSPSC:
43211508
MFG:
12TA000LUS
LENOVO DESKTOP TC M75S GEN 5 A3P8300G 16G N W11
Out of stock
ThinkCentre M75s Gen 5, AMD Ryzen 3 PRO 8300G (3.45GHz, 8MB), W11P64 ENG, 16.0GB, 1x512GB SSD M.2 2280 PCIe Gen4 TLC Opal, AMD Radeon 740M, Slim DVD RAMBO,BT 5.1 or above,RTL8852BE , 260W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)
Product Specifications
| General | |
|---|---|
| Processor | AMD,AMD AMD Ryzen 3 PRO,AMD Ryzen 3 PRO 3.4,3.4GHz L3 Cache,L3 Cache 8300G,8300G Cache Memory 8,8MB Max Turbo 4.9,4.9GHz |
| RAM | UDIMM,UDIMM DDR5,DDR5 Total Installed 16,16GB 5200,5200MHz Max Supported 64,64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | ThinkCentre M75s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Type | AMD Ryzen 3 PRO |
| Processor / Manufacturer | AMD |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 3.4 GHz |
| Cache Memory Installed Size | 8 MB |
| Max Turbo Frequency | 4.9 GHz |
| Processor / Number | 8300G |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | AMD PRO 665 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5200 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Audio Output | High Definition (HD) Audio |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Realtek Wi-Fi 6 RTL8852BE |
| Graphics Controller | AMD Radeon 740M |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 260 Watt |
| Efficiency | 90% |
| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |

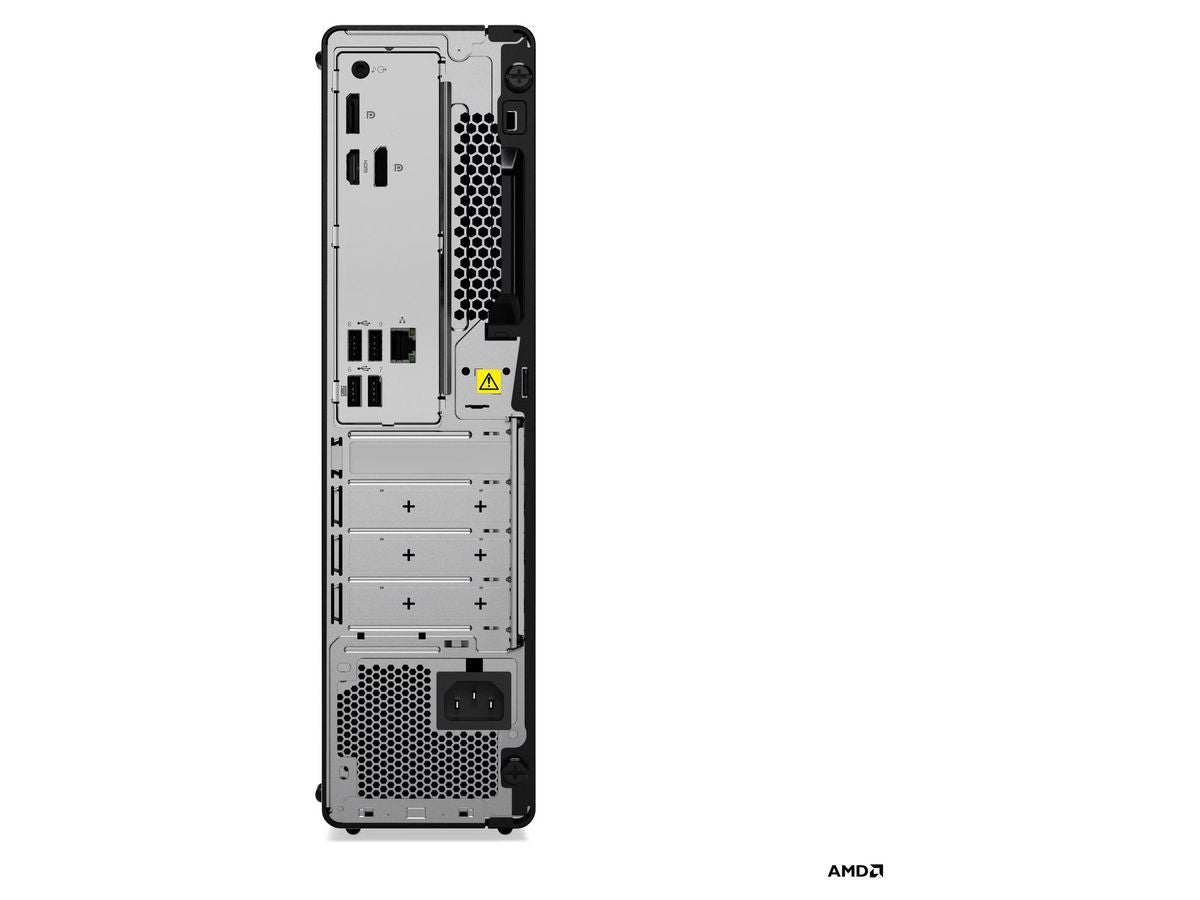

| Rear I/O Ports | 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 4.6 Kg |
| Enclosure Color | BLACK |
| Service & Support Type | 3 Year On-site |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Stand | None |
| Memory | |
| Cache Memory Type | L3 Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5200 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Type | AMD Ryzen 3 PRO |
| Processor / Manufacturer | AMD |
| Multi-Core Technology | Quad-Core |
| Processor / Clock Speed | 3.4 GHz |
| Max Turbo Frequency | 4.9 GHz |
| Processor / Number | 8300G |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | L3 Cache |
| Cache Memory Installed Size | 8 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
| Expansion | |
| Expansion Slots Total (Free) | One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Three M.2 slots (one for WLAN, two for SSD) |
| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 2x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45); 1x line-out (3.5mm) |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Network Controller | Realtek Wi-Fi 6 RTL8852BE |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 260 Watt |
| Efficiency | 90% |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| Video | |
| Graphics Controller | AMD Radeon 740M |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Dimensions&Miscellaneous | |
| Enclosure Color | BLACK |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 4.6 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
