Warranty: 3-year, Onsite

Lenovo

UPC: 198153877751
UNSPSC: 43211508
MFG: 12U3000XUS

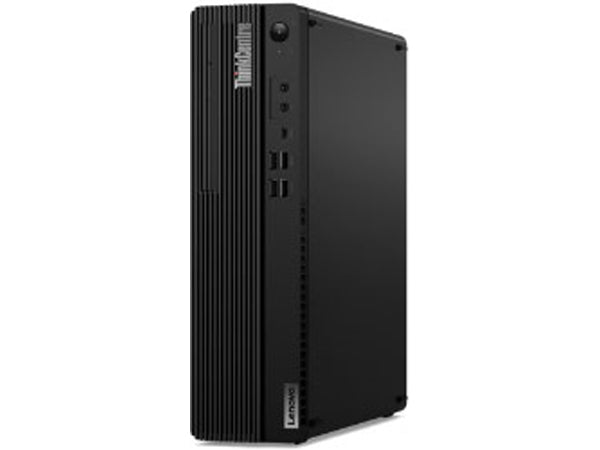

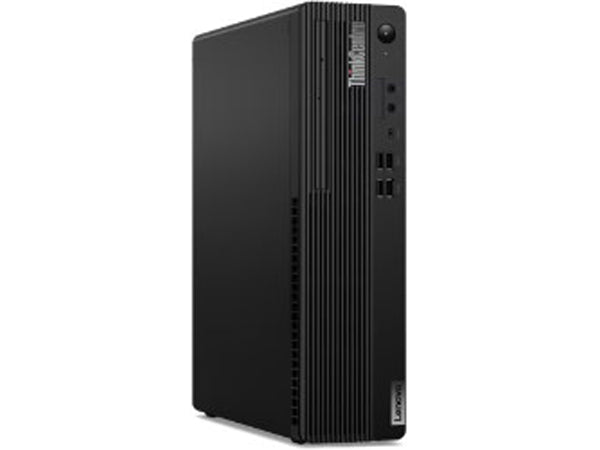

LENOVO DESKTOP TC M70S GEN 5 I514500 8G N W11P

$1,549.90 $1,409.00 Save 9% Sold out
Out of stock

ThinkCentre M70s Gen 5, Intel Core i5-14500 vPro (E-cores up to 3.70GHz, 24MB), W11P64 ENG, 8.0GB, 1x256GB SSD M.2 2280 PCIe Gen4 TLC Opal, Intel UHD Graphics 770, Slim DVD RAMBO,BT 5.1 or above,IntelAX211vPro, 260W, 3 Year On-site, USB, Traditional, Black-English (US), USB Calliope Mouse (Black)
Product Specifications
General
Processor Intel,Intel Core i5,Core i5 2.6,2.6GHz Smart Cache,Smart Cache 14500,14500 Cache Memory 24,24MB Max Turbo 5,5GHz
RAM UDIMM,UDIMM DDR5,DDR5 Total Installed 8,8GB 4800,4800MHz Max Supported 64,64GB
Primary Information
System Type Personal Computer
Model ThinkCentre M70s Gen 5
Cabinet Form Factor Small Form Factor
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Cache Memory Installed Size 24 MB
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
RAM / Installed Qty 1
Mainboard / Chipset Type Intel Q670
RAM / Technology DDR5
RAM / Total Slots Qty 2
RAM / Total Installed Size 8 GB
RAM / Memory Speed 4800 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 64 GB
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type DVD+/-RW
Audio Output High Definition (HD) Audio, Realtek ALC623-CG codec
Memory Card Reader None
Hard Drive / Capacity (2nd) None GB
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Speakers 1 x 1W
Input Device Support Type Keyboard, Mouse
Keyboard Language English
Keyboard USB Traditional Keyboard
Mouse USB Calliope Mouse
Operating System Microsoft Windows 11 Pro
Power / Device Type Power Supply
Power / Provided (W) 260 Watt
Efficiency 90%
Interfaces & Connections 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)

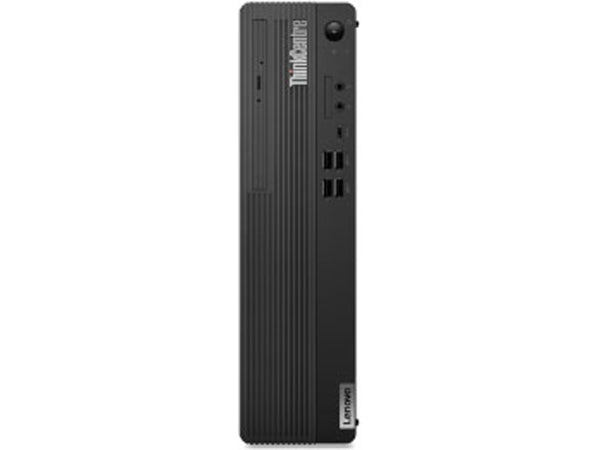

Front I/O Ports 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)

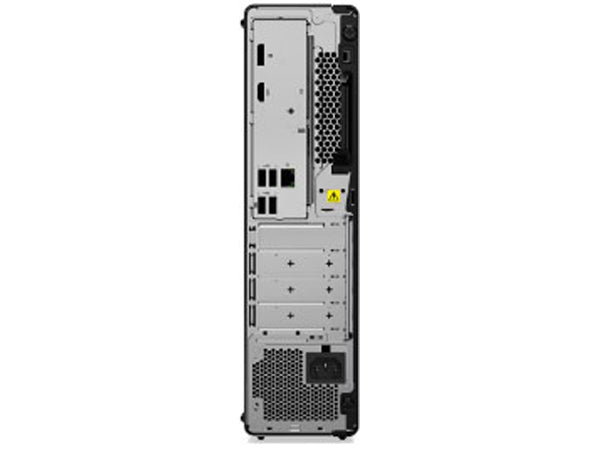

Rear I/O Ports 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Expansion Slots Total (Free) One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Two M.2 slots (one for WLAN, one for SSD)
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 5.3 Kg
Enclosure Color Black
Service & Support Type 3-year, Onsite
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
Stand None
Memory
Cache Memory Type Smart Cache
RAM / Installed Qty 1
RAM / Total Slots Qty 2
RAM / Technology DDR5
RAM / Total Installed Size 8 GB
RAM / Memory Speed 4800 MHz
RAM Form Factor UDIMM
RAM / Max Supported Size 64 GB
Processor
Processor / Generation Intel 14th Generation
Processor / Type Core i5
Processor / Manufacturer Intel
Multi-Core Technology 14-Core
Processor / Clock Speed 2.6 GHz
Max Turbo Frequency 5 GHz
Processor / Number 14500
Processor / Installed Qty 1
Cache Memory Type Smart Cache
Cache Memory Installed Size 24 MB
Storage
Hard Drive / Type SSD
Hard Drive Capacity / HDD None GB
Hard Drive / Installed Qty None
Hard Drive / Interface Type None
Hard Drive / Spindle Speed None RPM
SSD Capacity 256 GB
SSD / Installed Qty 1
Optical Storage Type DVD+/-RW
Hard Drive / Capacity (2nd) None GB
Expansion
Interfaces & Connections 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
Expansion Slots Total (Free) One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Two M.2 slots (one for WLAN, one for SSD)
Front I/O Ports 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm)
Rear I/O Ports 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45)
I/O
Input Device Support Type Keyboard, Mouse
Keyboard USB Traditional Keyboard
Mouse USB Calliope Mouse
Keyboard Language English
Networking
Data Link Protocol IEEE 802.11 ax, Bluetooth 5.3
Power
Power / Device Type Power Supply
Power / Provided (W) 260 Watt
Efficiency 90%
Special Feature
Security Devices Discrete TPM 2.0, TCG certified, FIPS 140-2 certified
COO MEXICO
Video
Graphics Controller Intel UHD Graphics 770
Video Memory / Technology None
Video Memory / Installed Size None GB
Video Output Interface Display Port, HDMI
Dimensions&Miscellaneous
Enclosure Color Black
Width 3.6 Inch
Depth 11.7 Inch
Height 13.4 Inch
Weight 5.3 Kg
UNSPSC Code
UNSPSC Code 43211508
