Lenovo
UPC:
198157007802
UNSPSC:
43211508
MFG:
13AY000DUS

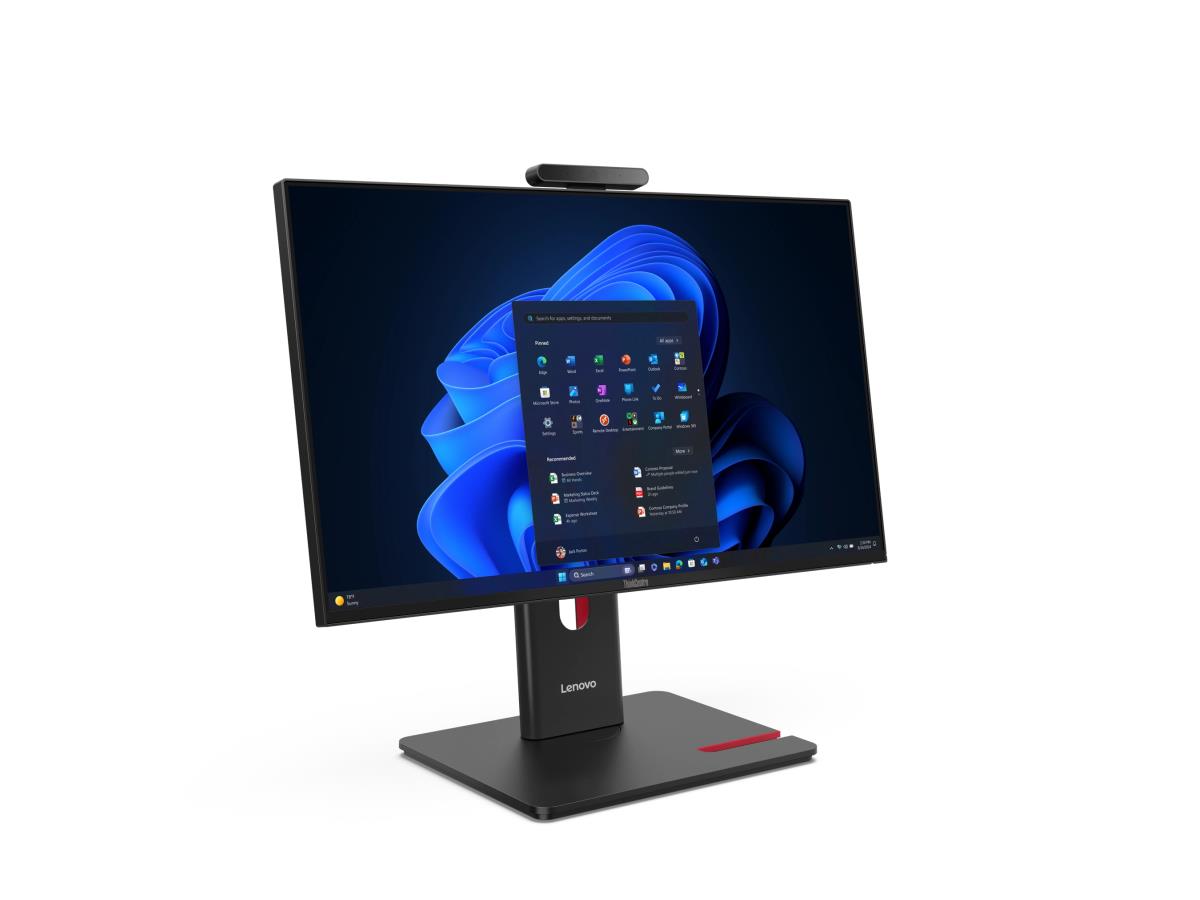

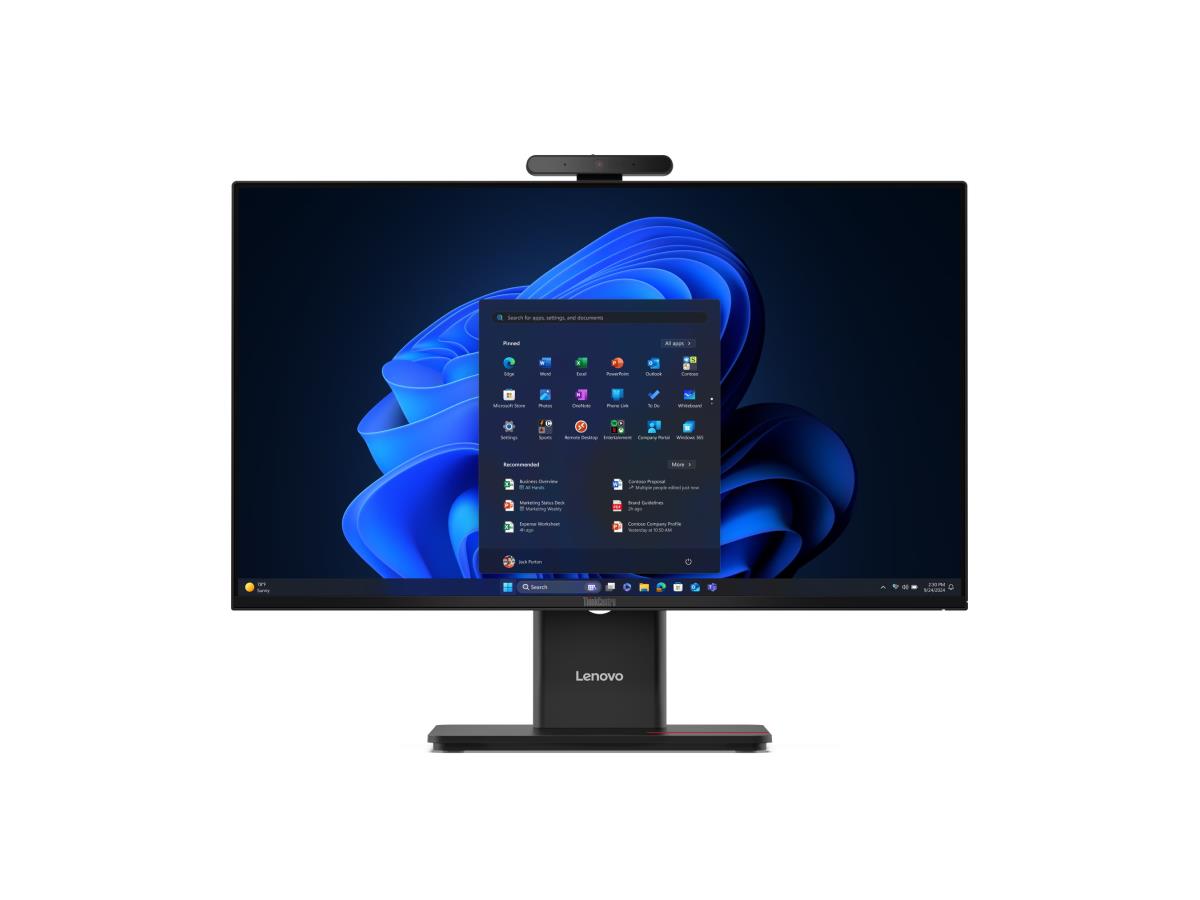

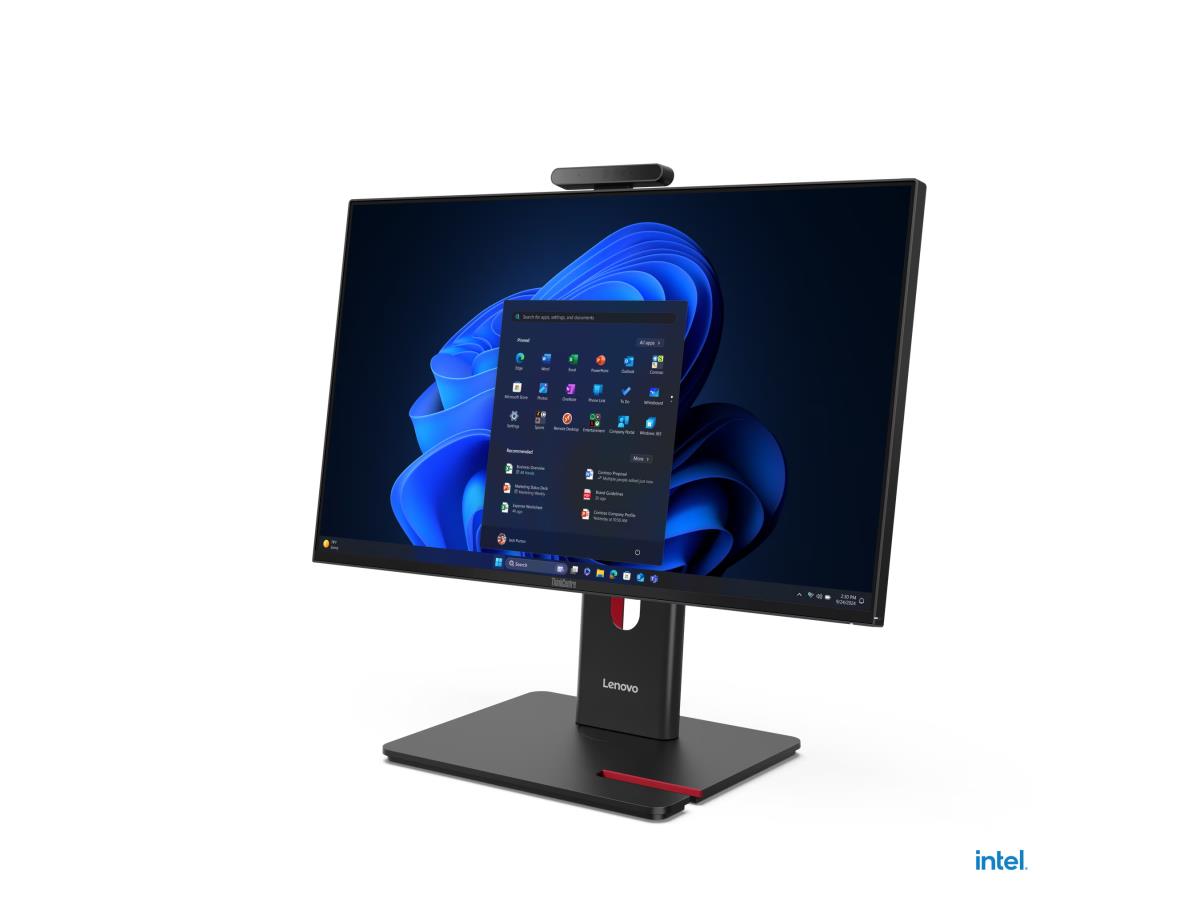

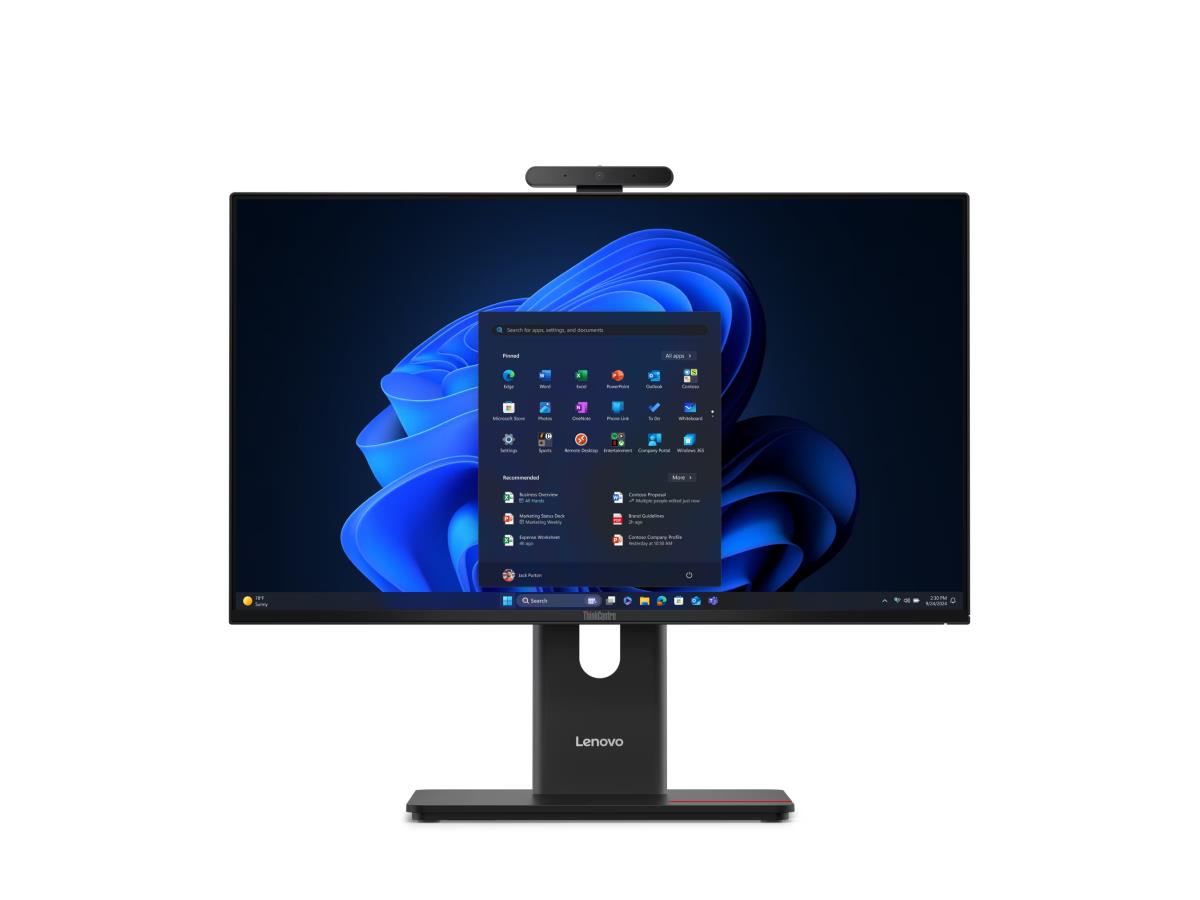

LENOVO DESKTOP TC M70A GEN 6 U7265T 32G 512G W1
Out of stock
LENOVO DESKTOP TC M70A GEN 6 U7265T 32G 512G W1
Product Specifications
| Primary Information | |
|---|---|
| System Type | AI PC |
| Model | ThinkCentre M70a Gen 6 |
| Processor / Manufacturer | Intel |
| Processor / Type | Core Ultra 7 |
| Processor / Clock Speed | 1.5 GHz |
| Max Turbo Frequency | 5.3 GHz |
| Processor / Number | 265T |
| Multi-Core Technology | 20-Core |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Mainboard / Chipset Type | Intel Q870 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 1 |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | SODIMM |
| RAM / Max Supported Size | 64 GB |
| RAM / Total Slots Qty | 2 |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| Hard Drive / Interface Type | None |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Optical Storage Type | External 9.0mm DVDRW |
| Display Diagonal Size | 23.8 Inch |
| Touch Screen | None |
| Max Resolution | 1920 x 1080 |
| Brightness | 250nits |
| Display / Refresh Rate | 120 Hz |
| Image Contrast Ratio | 1500:1 |
| Image Aspect Ratio | 16:9 |
| Color Gamut | sRGB 99% |
| Viewing Angle | 89/89 |
| VESA Mount Compatible | 100 mm |
| Stand | Yes |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Camera | 5.0MP + IR Hybrid |
| Speakers | 2 x 2W |
| Graphics Controller | Intel Graphics |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Keyboard | USB, Calliope, Black, English (US) |
| Keyboard Language | English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 90 Watt |
| Service & Support Type | 3-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Processor | |
| Cache Memory Installed Size | 30 MB |
| Processor / Type | Core Ultra 7 |
| Processor / Clock Speed | 1.5 GHz |
| Processor / Manufacturer | Intel |
| Processor / Number | 265T |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Neural Processor Unit (NPU) | Intel AI Boost |
| Storage | |
| Storage Controller Type | M.2 |
| Memory Card Reader | None |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Optical Storage Type | External 9.0mm DVDRW |
| Display | |
| Audio Output | High Definition (HD) Audio |
| Display Diagonal Size | 23.8 Inch |
| Touch Screen | None |
| Max Resolution | 1920 x 1080 |
| Brightness | 250nits |
| Display / Refresh Rate | 120 Hz |
| Image Contrast Ratio | 1500:1 |
| Image Aspect Ratio | 16:9 |
| Color Gamut | sRGB 99% |
| Expansion | |
| Interfaces & Connections | Rear Ports: 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI (HDMI in 1.4 / HDMI out 2.1 TMDS combo port); 1x DisplayPort 1.4a (HBR2); 1x Ethernet (RJ-45). Right Ports: 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), support data transfer and 5V@3A charging; 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI (HDMI in 1.4 / HDMI out 2.1 TMDS combo port); 1x DisplayPort 1.4a (HBR2); 1x Ethernet (RJ-45) |
| Expansion Slots Total (Free) | Three M.2 slots (one for WLAN, two for SSD / discrete NPU) |
| Dimensions&Miscellaneous | |
| Width | 21.24 Inch |
| Depth | 13.13 Inch |
| Height | 8.82 Inch |
| Weight | 7.16 Kg |
| Enclosure Color | Black |
| Special Feature | |
| Min Operating Temperature | 5C (41F) |
| Max Operating Temperature | 35C (95F) |
| Humidity Range Operating | 20% to 80% |
| COO | Inquire |
| TAA compliance | Inquire |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 32 GB |
| RAM / Installed Qty | 1 |
| RAM / Max Supported Size | 64 GB |
| RAM / Total Slots Qty | 2 |
| Video | |
| Camera | 5.0MP + IR Hybrid |
| Speakers | 2 x 2W |
| Graphics Controller | Intel Graphics |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Networking | |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth 5.3 |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 90 Watt |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
