Lenovo
UPC:
198153877577
UNSPSC:
43211508
MFG:
12U3000VCA
FR LENOVO DESKTOP TC M70S GEN 5 I714700 16G N W11P
6 in stock, ready to ship
FR LENOVO DESKTOP TC M70S GEN 5 I714700 16G N W11P
Product Specifications
| General | |
|---|---|
| Processor | Intel,Intel Core i7,Core i7 2.1,2.1GHz Smart Cache,Smart Cache 14700,14700 Cache Memory 33,33MB Max Turbo 5.4,5.4GHz |
| RAM | UDIMM,UDIMM DDR5,DDR5 Total Installed 16,16GB 5600,5600MHz Max Supported 64,64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | ThinkCentre M70s Gen 5 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Cache Memory Installed Size | 33 MB |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 2 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Storage Controller Type | M.2 |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Audio Output | High Definition (HD) Audio, Realtek ALC623-CG codec |
| Memory Card Reader | None |
| Hard Drive / Capacity (2nd) | None GB |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Speakers | 1 x 1W |
| Input Device Support Type | Keyboard |
| Keyboard Language | French |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 260 Watt |
| Efficiency | 90% |
| Interfaces & Connections | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |

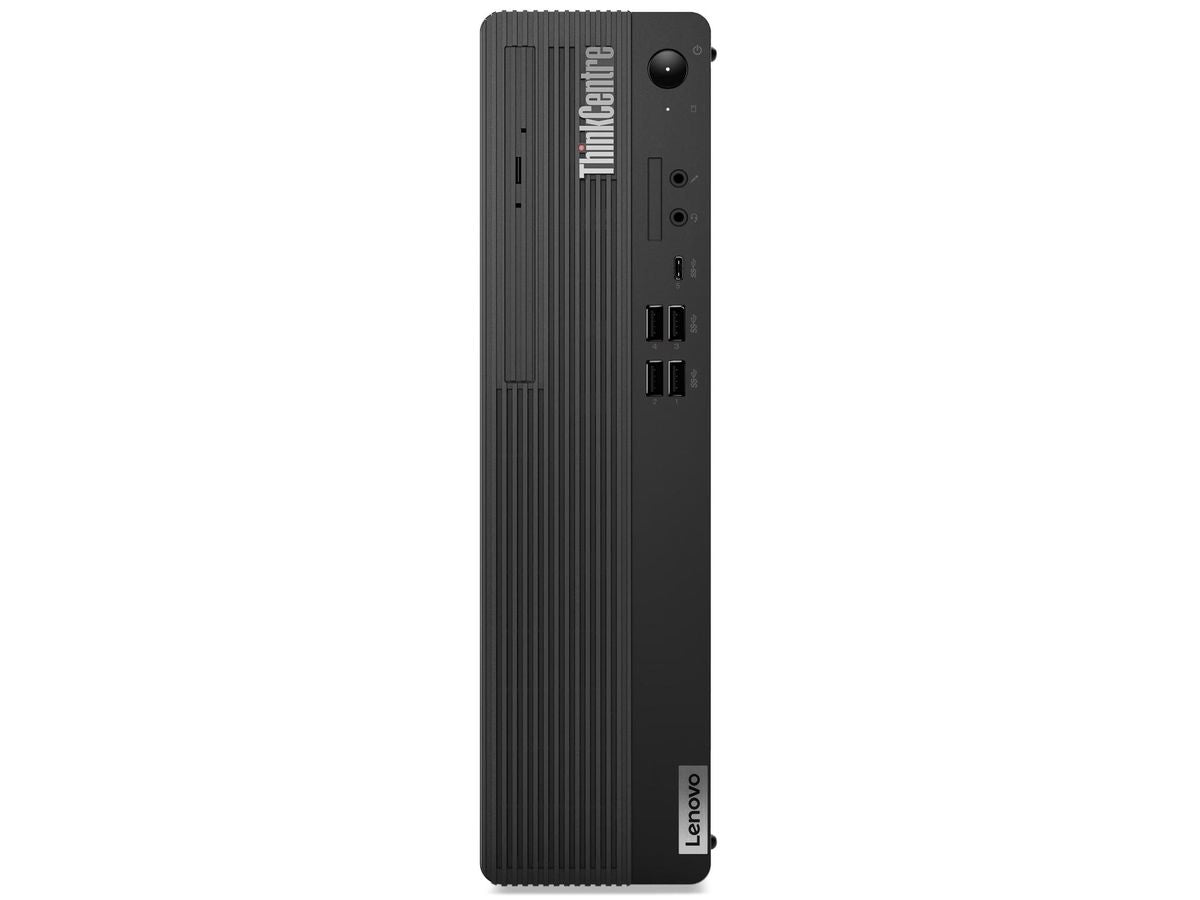

| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |

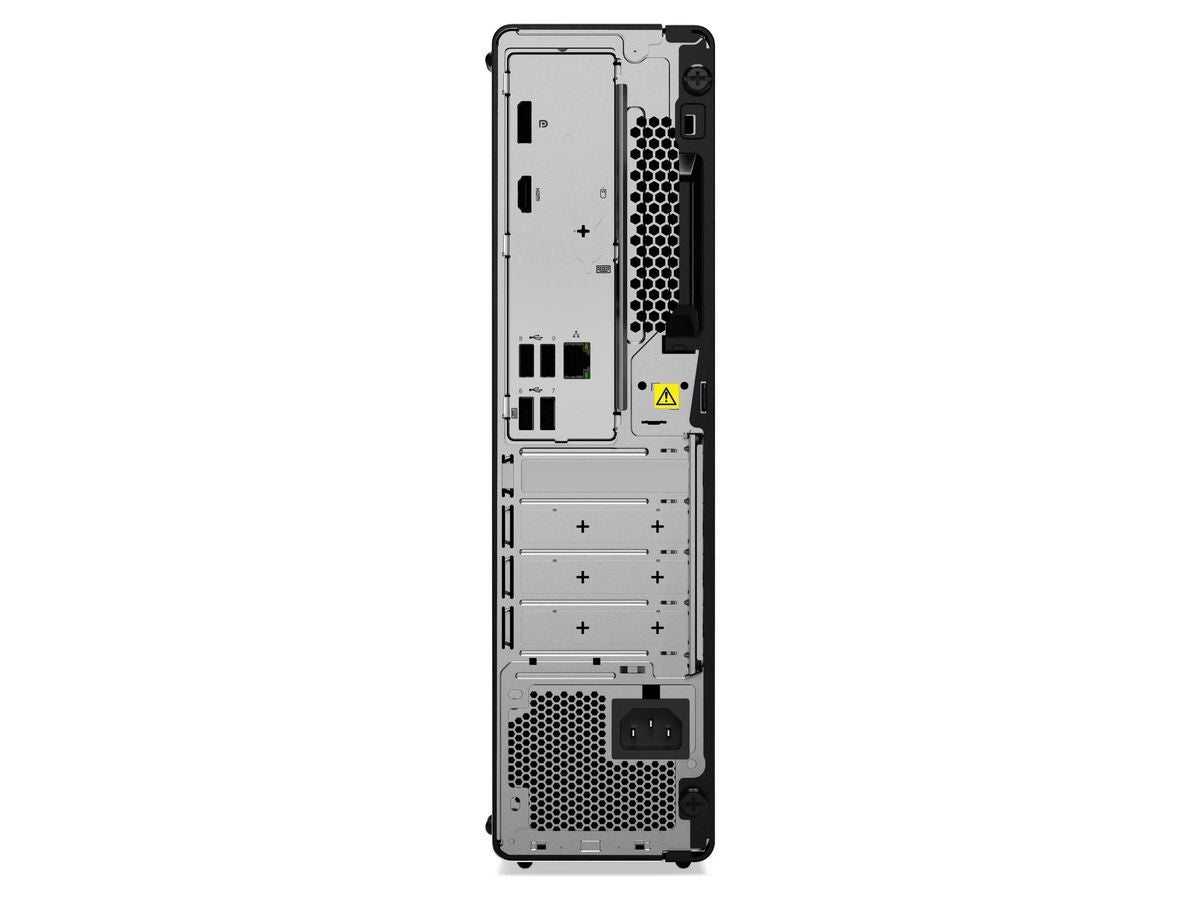

| Rear I/O Ports | 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
| Expansion Slots Total (Free) | One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Two M.2 slots (one for WLAN, one for SSD); |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 5.3 Kg |
| Enclosure Color | Black |
| Service & Support Type | 3-year, Onsite Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Features | Integrated 100/1000M |
| Stand | None |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Memory Speed | 5600 MHz |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 20-Core |
| Processor / Clock Speed | 2.1 GHz |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 33 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | DVD+-RW |
| Storage Controller Type | M.2 |
| Hard Drive / Capacity (2nd) | None GB |
| Expansion | |
| Interfaces & Connections | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm); 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
| Expansion Slots Total (Free) | One PCIe 3.0 x16, low-profile, length 155mm, height 70mm; One PCIe 3.0 x1, low-profile, length 155mm, height 70mm; Two M.2 slots (one for WLAN, one for SSD); |
| Front I/O Ports | 1x USB-C (USB 5Gbps / USB 3.2 Gen 1), with 15W charging; 4x USB-A (USB 5Gbps / USB 3.2 Gen 1); 1x headphone / microphone combo jack (3.5mm); 1x microphone (3.5mm) |
| Rear I/O Ports | 4x USB-A (Hi-Speed USB / USB 2.0); 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4a (HBR2, DSC); 1x Ethernet (RJ-45) |
| I/O | |
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black, French |
| Mouse | USB Calliope Mouse, Black |
| Keyboard Language | French |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 260 Watt |
| Efficiency | 90% |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| Video | |
| Graphics Controller | Intel UHD Graphics 770 |
| Video Memory / Technology | None |
| Video Memory / Installed Size | None GB |
| Video Output Interface | Display Port; HDMI |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 3.6 Inch |
| Depth | 11.7 Inch |
| Height | 13.4 Inch |
| Weight | 5.3 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 4 | In Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 2 | In Stock |
