DELL
UPC:
884116462132
UNSPSC:
43211508
MFG:
14GX4

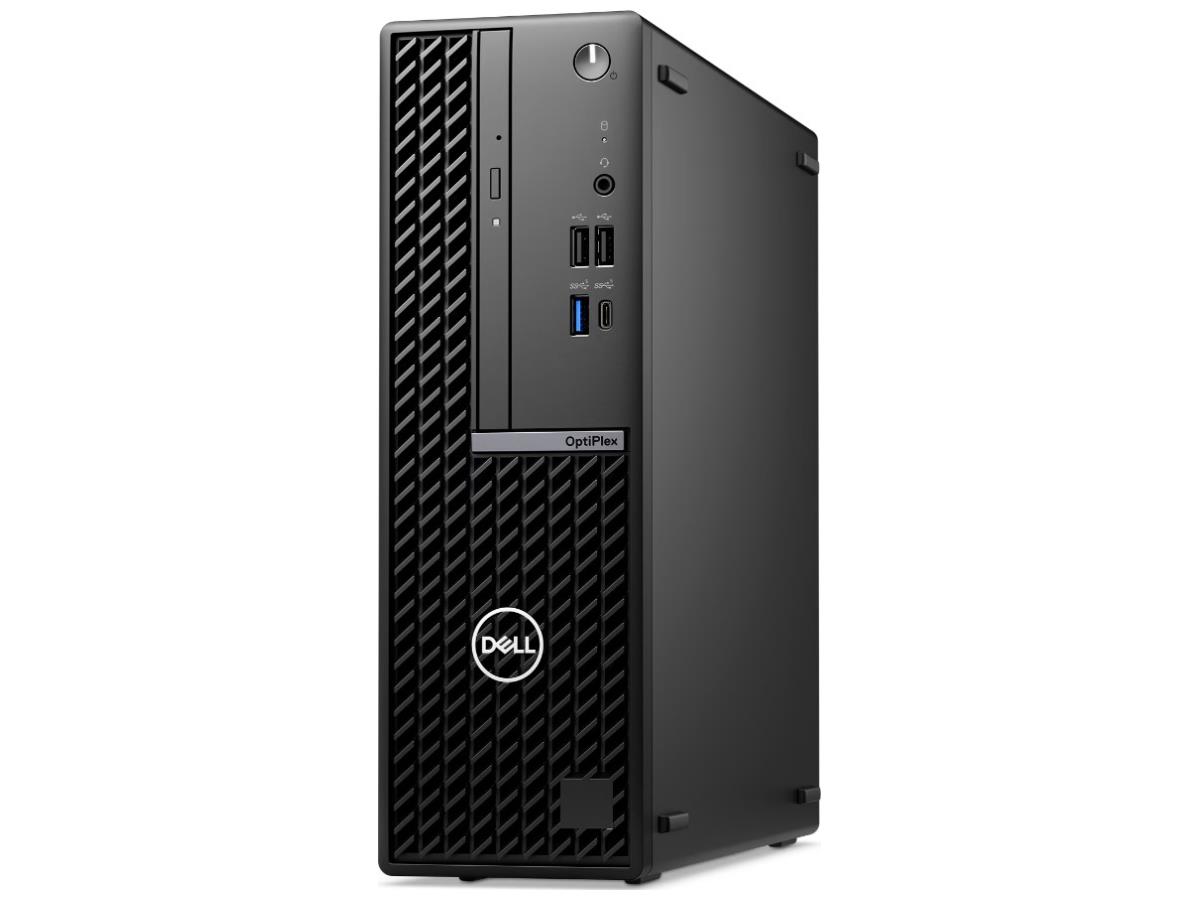

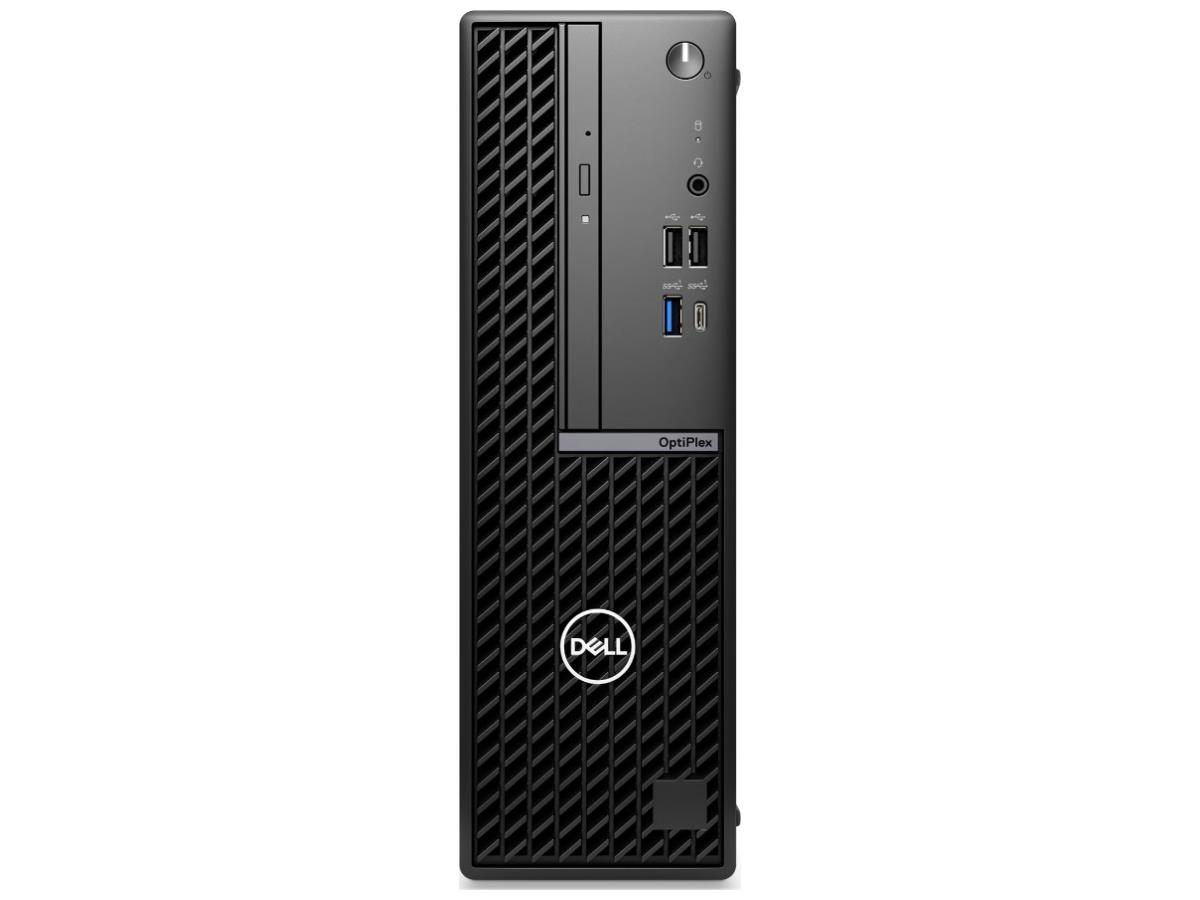

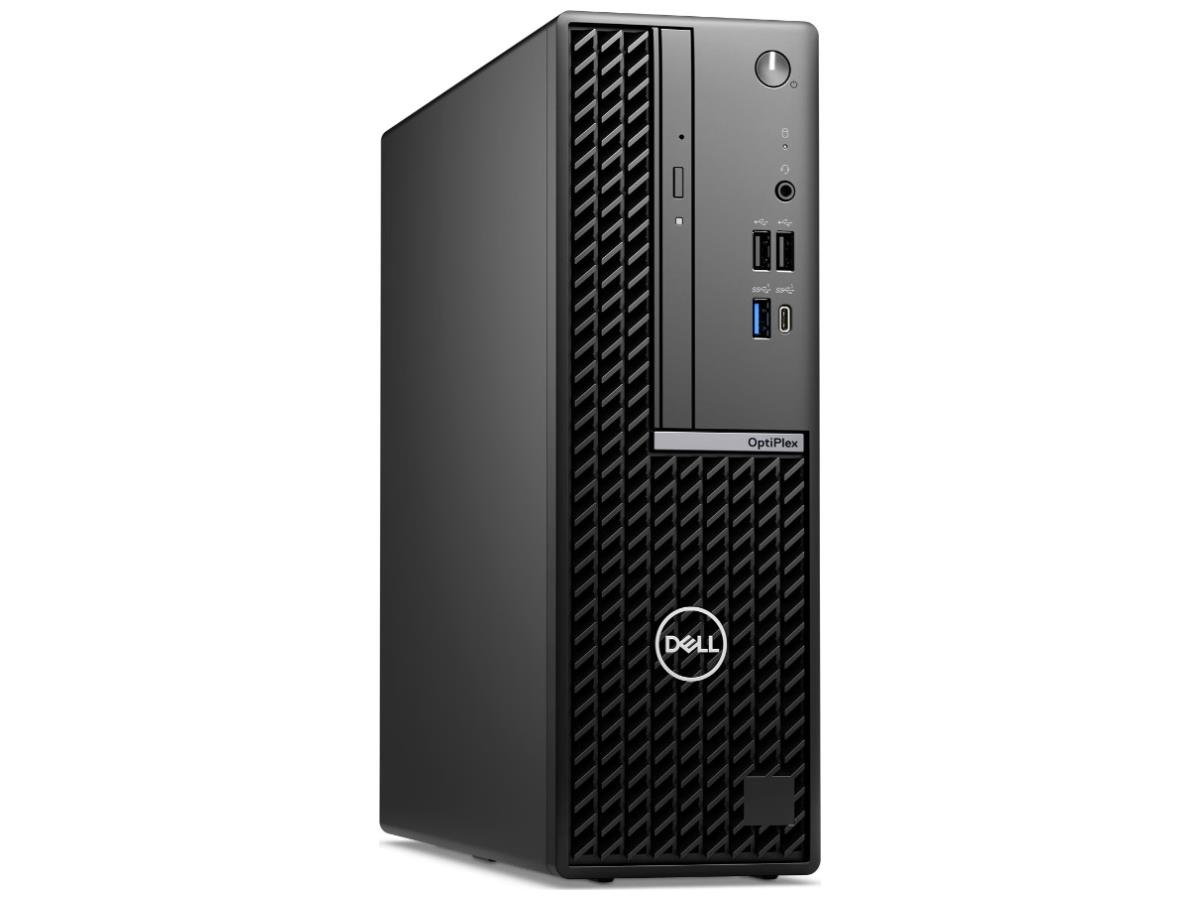

DELL OPTIPLEX SMALL FORM FACTOR 7020 CORE I5 14500 8GB 1DIMM 256GB SS INTEL HD WLS W11 1DP 1HDMI 7USB A 1USB C
1 in stock, ready to ship
DELL OPTIPLEX SMALL FORM FACTOR 7020 CORE I5 14500 8GB 1DIMM 256GB SS INTEL HD WLS W11 1DP 1HDMI 7USB A 1USB C
Product Specifications
| General | |
|---|---|
| Processor | Intel Core i5 2.6GHz 4 Smart Cache 14500 Cache Memory 24MB Max Turbo 5GHz |
| RAM | UDIMM DDR5 Total Installed 8GB Max Supported 64GB |
| Primary Information | |
| System Type | Personal Computer |
| Model | OPTIPLEX SMALL FORM FACTOR 7020 |
| Cabinet Form Factor | Small Form Factor |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Cache Memory Installed Size | 24 MB |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| RAM / Installed Qty | 1 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Slots Qty | 1 |
| RAM / Total Installed Size | 8 GB |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Optical Storage Type | No Optical Drive |
| Hard Drive / Capacity (2nd) | None GB |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth; Gigabit Ethernet |
| Video Output Type | DisplayPort,HDMI |
| Graphics Controller | Intel UHD Graphics 770 |
| Max Monitors Supported | 4 |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard Language | English |
| Keyboard | Dell Multimedia Wired Keyboard - KB216 Black |
| Mouse | Dell Optical Mouse - MS116 (Black) |
| Operating System | Microsoft Windows 11 Pro |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 180 Watt |
| Interfaces & Connections | 2 USB 2.0 (480 Mbps) ports; 1 USB 3.2 Gen 1 (5 Gbps) Type-C port ; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 Universal audio jack; 2 USB 2.0 (480 Mbps) ports with Smart Power On; 2 USB 3.2 Gen 1 (5 Gbps) ports; 2 DisplayPort 1.4a (HBR2) port; 1 HDMI 1.4b port; 1 RJ45 Ethernet Port 10/100/1000 Mbps |
| Front I/O Ports | 2 USB 2.0 (480 Mbps) ports; 1 USB 3.2 Gen 1 (5 Gbps) Type-C port ; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 Universal audio jack |

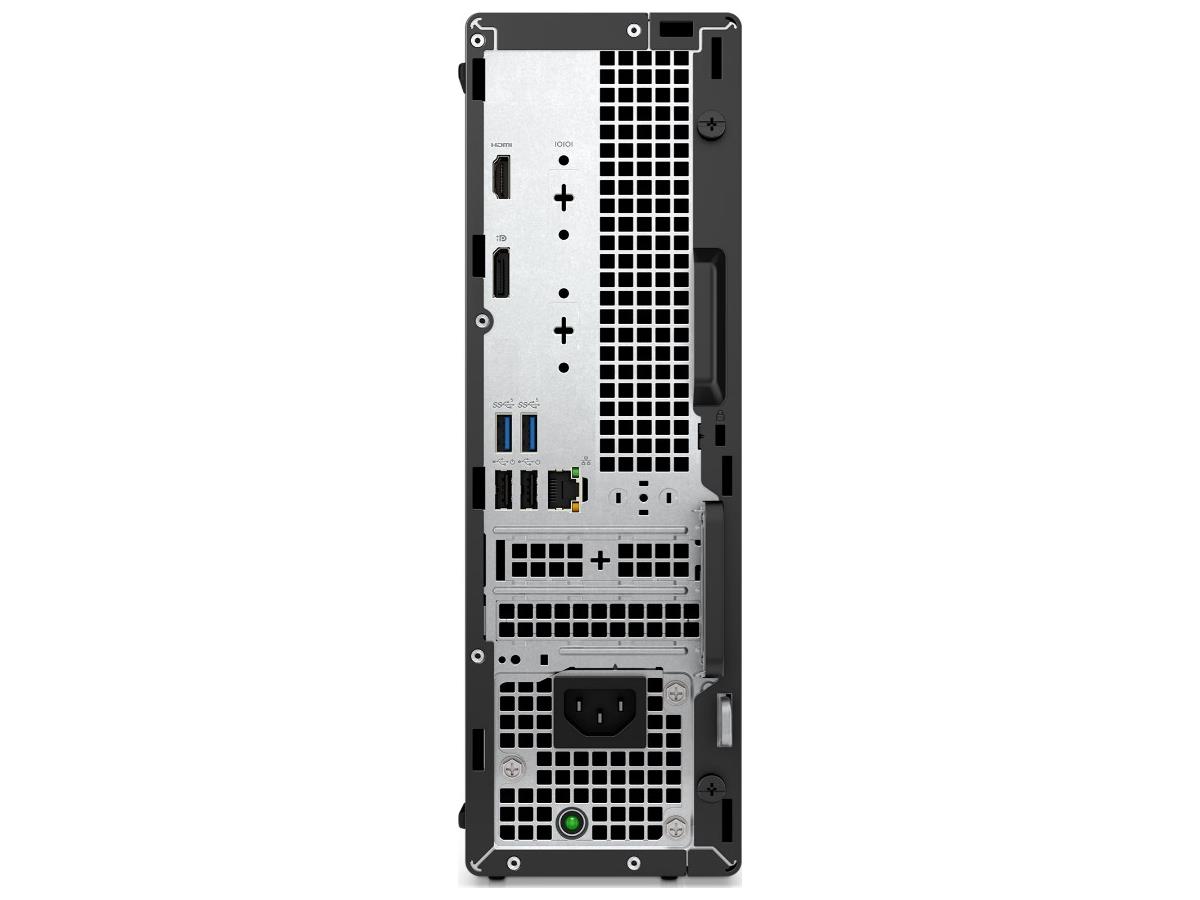

| Rear I/O Ports | 2 USB 2.0 (480 Mbps) ports with Smart Power On; 2 USB 3.2 Gen 1 (5 Gbps) ports; 2 DisplayPort 1.4a (HBR2) port; 1 HDMI 1.4b port; 1 RJ45 Ethernet Port 10/100/1000 Mbps |
| Width | 3.64 Inch |
| Depth | 11.52 Inch |
| Height | 11.41 Inch |
| Enclosure Color | Black |
| Service & Support Type | 3Y Basic Onsite Service after remote diagnosis with Hardware-Only Support-Disti SnS |
| Security Devices | TPM |
| Stand | None |
| Memory | |
| Cache Memory Type | Smart Cache |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 1 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 8 GB |
| RAM Form Factor | UDIMM |
| RAM / Max Supported Size | 64 GB |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Multi-Core Technology | 14-Core |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Storage | |
| Hard Drive / Type | SSD |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 256 GB |
| Optical Storage Type | No Optical Drive |
| Hard Drive / Capacity (2nd) | None GB |
| Expansion | |
| Interfaces & Connections | 2 USB 2.0 (480 Mbps) ports; 1 USB 3.2 Gen 1 (5 Gbps) Type-C port ; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 Universal audio jack; 2 USB 2.0 (480 Mbps) ports with Smart Power On; 2 USB 3.2 Gen 1 (5 Gbps) ports; 2 DisplayPort 1.4a (HBR2) port; 1 HDMI 1.4b port; 1 RJ45 Ethernet Port 10/100/1000 Mbps |
| Front I/O Ports | 2 USB 2.0 (480 Mbps) ports; 1 USB 3.2 Gen 1 (5 Gbps) Type-C port ; 1 USB 3.2 Gen 1 (5 Gbps) port; 1 Universal audio jack |
| Rear I/O Ports | 2 USB 2.0 (480 Mbps) ports with Smart Power On; 2 USB 3.2 Gen 1 (5 Gbps) ports; 2 DisplayPort 1.4a (HBR2) port; 1 HDMI 1.4b port; 1 RJ45 Ethernet Port 10/100/1000 Mbps |
| I/O | |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | Dell Multimedia Wired Keyboard - KB216 Black |
| Mouse | Dell Optical Mouse - MS116 (Black) |
| Keyboard Language | English |
| Networking | |
| Data Link Protocol | IEEE 802.11 ax, Bluetooth; Gigabit Ethernet |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 180 Watt |
| Special Feature | |
| Security Devices | TPM |
| COO | Inquire |
| TAA compliance | Inquire |
| Video | |
| Video Output Type | DisplayPort,HDMI |
| Graphics Controller | Intel UHD Graphics 770 |
| Dimensions&Miscellaneous | |
| Enclosure Color | Black |
| Width | 3.64 Inch |
| Depth | 11.52 Inch |
| Height | 11.41 Inch |
| UNSPSC Code | |
| UNSPSC Code | 43211508 |
