DELL
UPC:
UNSPSC:
43201803
MFG:
400-BLKU-AX

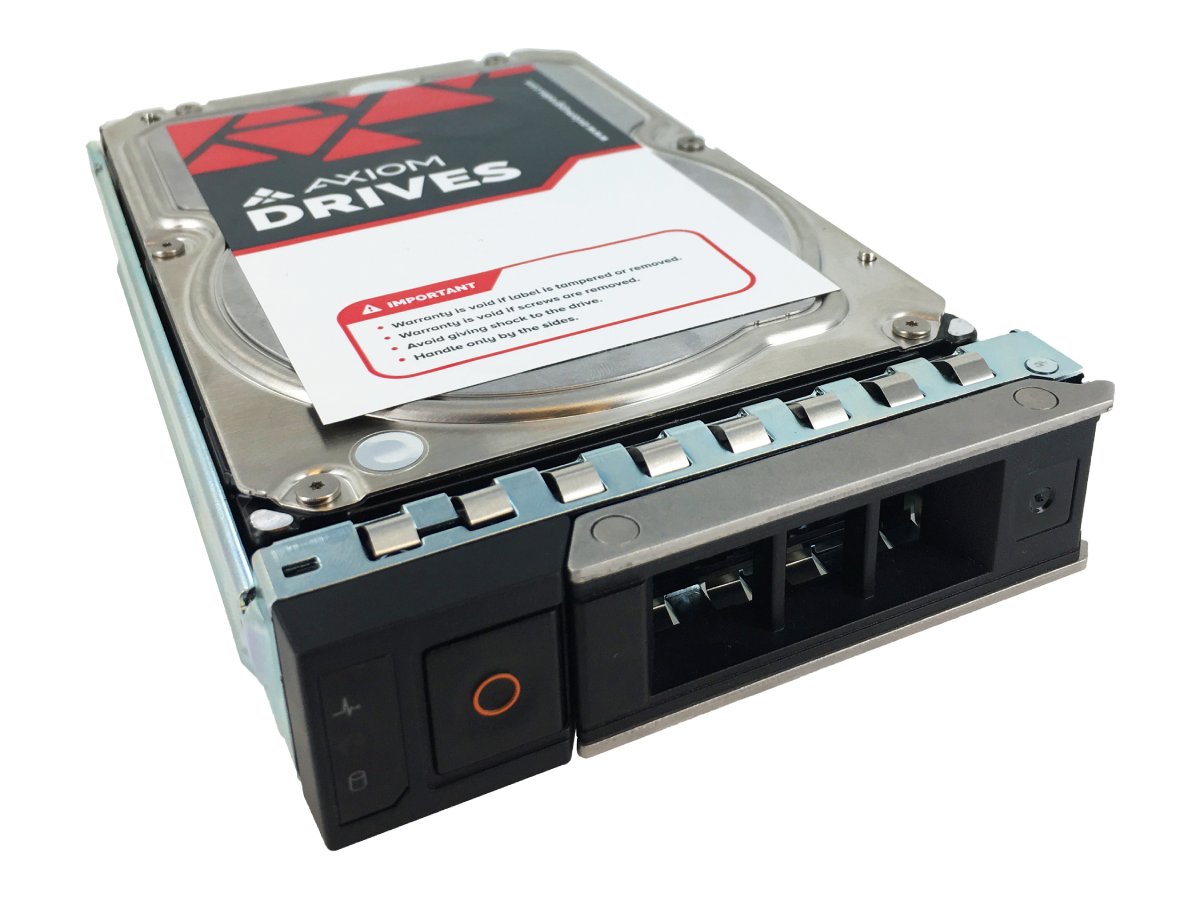

AXIOM 18TB 6GB/S SATA 7.2K RPM LFF 512E HOT-SWAP HDD FOR DELL - 400-BLKU
3 in stock, ready to ship
Axiom - Hard drive - Enterprise - 18 TB - hot-swap - 3.5" LFF - SAS 12Gb/s - 7200 rpm - buffer: 256 MB - for Dell PowerEdge R540, R550, R650, R6615, R6625, R7415, R750, R7525, R760, R7625, T550
Product Specifications
| Primary Information | |
|---|---|
| Product Description | Axiom - hard drive - Enterprise - 18 TB - SAS 12Gb/s |
| Type | Hard drive - hot-swap |
| Capacity | 18 TB |
| Form Factor | 3.5" LFF |
| Interface | SAS 12Gb/s |
| Data Transfer Rate | 6 GBps |
| Buffer Size | 256 MB |
| Spindle Speed | 7200 rpm |
| Drive Class | Enterprise |
| Manufacturer Warranty | 3-year warranty |
| Designed For | Dell PowerEdge R250 (3.5"), R340 (3.5"), R350 (3.5"), R440 (3.5"), R450 (3.5"), R540 (3.5"), R550 (3.5"), R640 (3.5"), R6415 (3.5"), R650 (3.5"), R650xs (3.5"), R6515 (3.5"), R6525 (3.5"), R6615 (3.5"), R6625 (3.5"), R740xd2 (3.5"), R7415 (3.5"), R7425 (3.5"), R750 (3.5"), R750xs (3.5"), R7515 (3.5"), R7525 (3.5"), R760 (3.5"), R7625 (3.5"), T350 (3.5"), T550 (3.5") |
| General | |
| Device Type | Hard drive - hot-swap |
| Capacity | 18 TB |
| Form Factor | 3.5" LFF |
| Interface | SAS 12Gb/s |
| Buffer Size | 256 MB |
| Bytes per Sector | 512 |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 6 GBps (external) |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SAS 12 Gb/s |
| Compatible Bay | 3.5" LFF |
| Power | |
| Power Consumption | 6.9 Watt (random read/write) ¦ 5 Watt (idle) ¦ 7 Watt (sequential read) ¦ 6.8 Watt (sequential write) |
| Miscellaneous | |
| Compliant Standards | Plug and Play |
| OEM Manufacturer Equivalent Part Number | Dell 400-BLKU |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Sound Emission | 36 dBA |
| Compatibility Information | |
| Designed For | Dell PowerEdge R250 (3.5"), R340 (3.5"), R350 (3.5"), R440 (3.5"), R450 (3.5"), R540 (3.5"), R550 (3.5"), R640 (3.5"), R6415 (3.5"), R650 (3.5"), R650xs (3.5"), R6515 (3.5"), R6525 (3.5"), R6615 (3.5"), R6625 (3.5"), R740xd2 (3.5"), R7415 (3.5"), R7425 (3.5"), R750 (3.5"), R750xs (3.5"), R7515 (3.5"), R7525 (3.5"), R760 (3.5"), R7625 (3.5"), T350 (3.5"), T550 (3.5") |
| Special Feature | |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 43201803 |
