DELL
UPC:
840177844393
UNSPSC:
43201803
MFG:
400-BHFM-AX

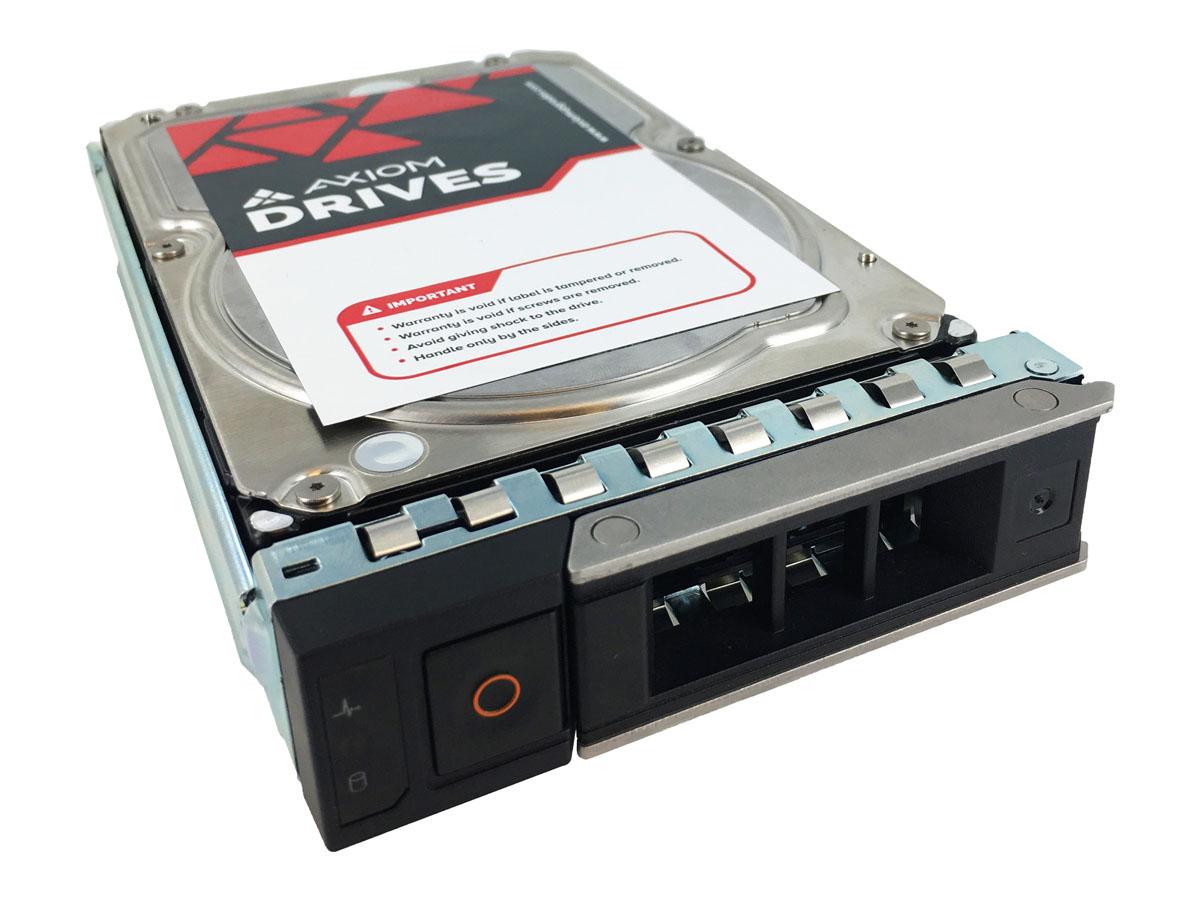

AXIOM 16TB 6GB/S SATA 7.2K RPM LFF 512E HOT-SWAP HDD FOR DELL - 400-BHFM
1 in stock, ready to ship
Axiom Enterprise - Hard drive - 16 TB - hot-swap - 3.5" LFF - SATA 6Gb/s - 7200 rpm - buffer: 256 MB - for Dell EMC PowerEdge R440 (3.5"), R740xd (3.5"), R7525 (3.5")
Product Specifications
| Primary Information | |
|---|---|
| Product Description | Axiom - hard drive - Enterprise - 16 TB - SATA 6Gb/s |
| Type | Hard drive - hot-swap |
| Capacity | 16 TB |
| Form Factor | 3.5" LFF |
| Interface | SATA 6Gb/s |
| Data Transfer Rate | 600 MBps |
| Buffer Size | 256 MB |
| Spindle Speed | 7200 rpm |
| Drive Class | Enterprise |
| Features | 512 emulation ( 512e ), 24x7 continuous operation |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Hard drive - hot-swap |
| Capacity | 16 TB |
| Form Factor | 3.5" LFF |
| Interface | SATA 6Gb/s |
| Buffer Size | 256 MB |
| Features | 512 emulation ( 512e ), 24x7 continuous operation |
| Performance | |
| Drive Class | Enterprise |
| Drive Transfer Rate | 600 MBps (external) |
| Spindle Speed | 7200 rpm |
| Reliability | |
| MTBF | 2,500,000 hours |
| 24x7 Operation | Yes |
| Non-Recoverable Errors | 1 per 10^15 |
| Expansion & Connectivity | |
| Interfaces | 1 x SATA 6 Gb/s |
| Compatible Bay | 3.5" LFF |
| Power | |
| Power Consumption | 7 Watt (read) ¦ 6.8 Watt (write) ¦ 6.9 Watt (random read/write) ¦ 5 Watt (idle power) |
| Miscellaneous | |
| OEM Manufacturer Equivalent Part Number | Dell 400-BHFM |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years |
| Environmental Parameters | |
| Min Operating Temperature | 41 °F |
| Max Operating Temperature | 140 °F |
| Min Storage Temperature | -40 °F |
| Max Storage Temperature | 158 °F |
| Shock Tolerance (operating) | 70 g @ 2 ms |
| Shock Tolerance (non-operating) | 300 g @ 2 ms |
| Special Feature | |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 43201803 |
