StarTech
UPC:
065030872201
UNSPSC:
43211604
MFG:
SV231DPUCA
4K USB C KVM SWITCH, 2 PORT DISPLAYPORT
338 in stock, ready to ship

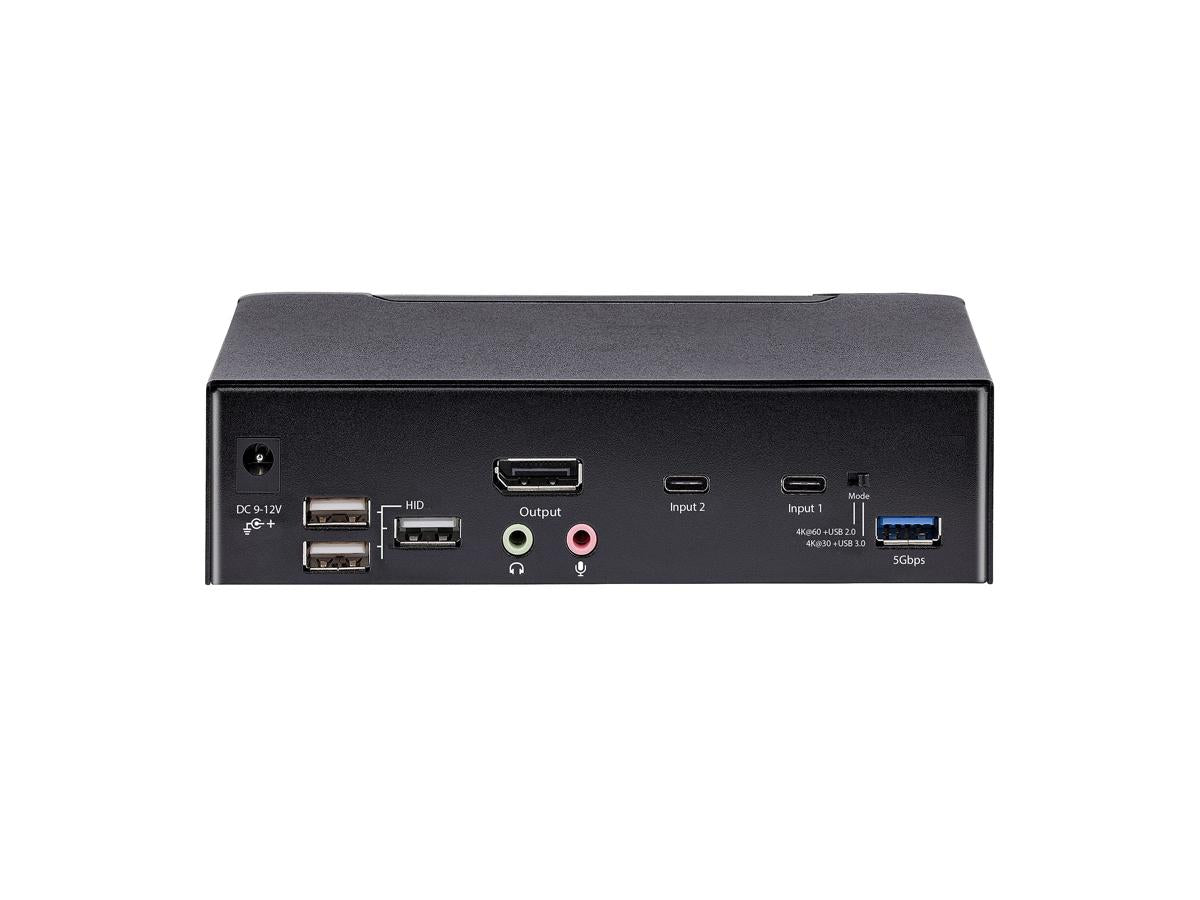

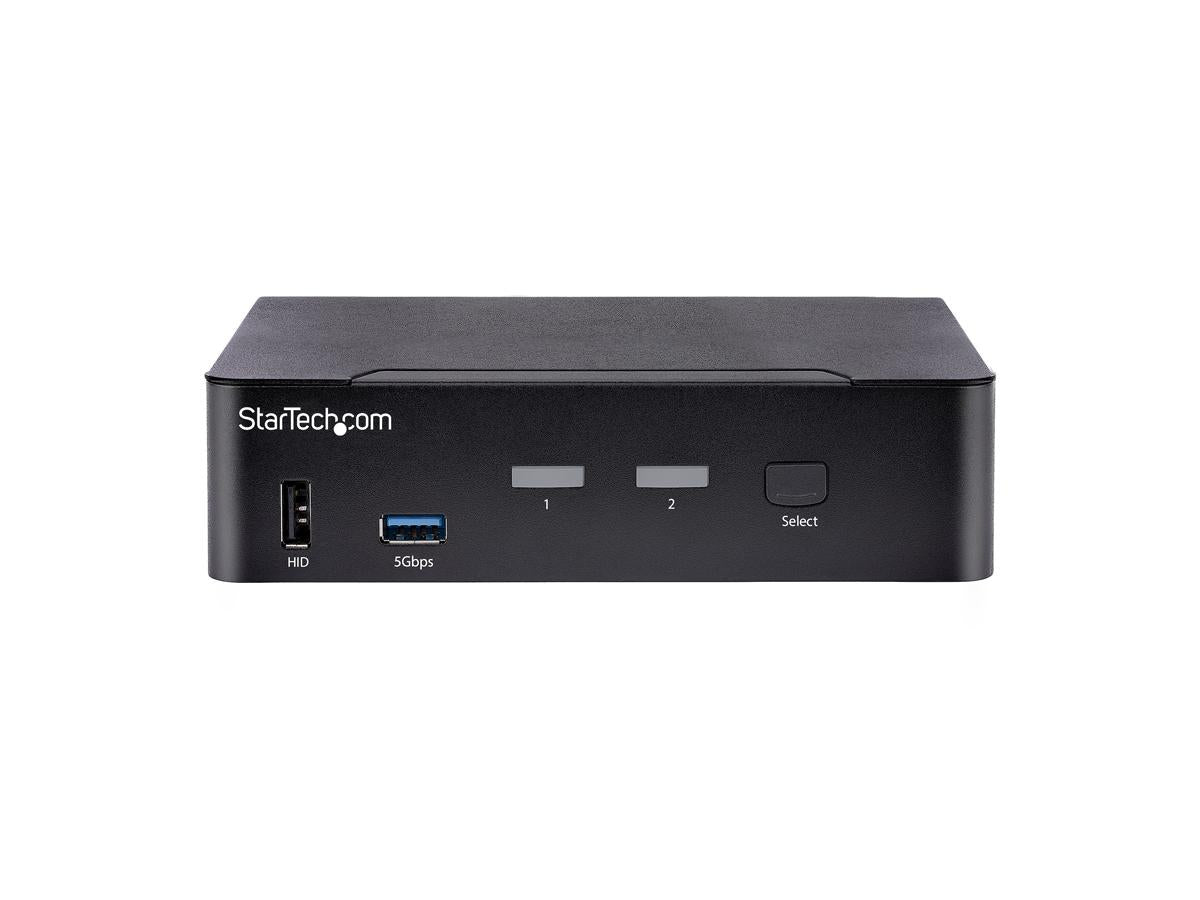

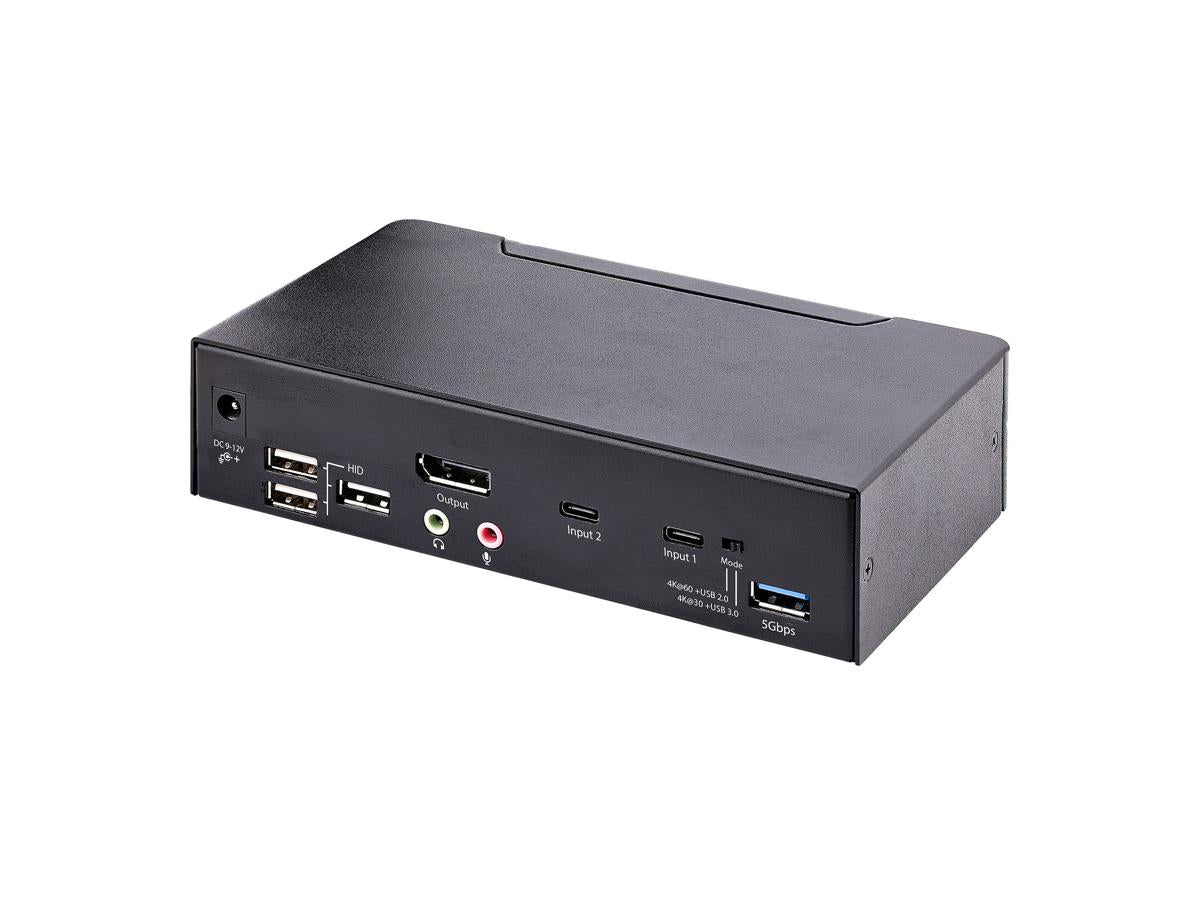

StarTech.com USB C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type C KVM Switch, 4x USB HID and 2x USB A 3.2 Gen 1 5Gbps Hub, Thunderbolt 3/4 Compatible - Hot Key Switching (SV231DPUCA) - KVM / audio / USB switch - 2 x KVM / audio / USB - desktop - TAA Compliant
Product Specifications
| Primary Information | |
|---|---|
| Product Description | StarTech.com USB C KVM Switch, 2 Port DisplayPort KVM w/ 4K 60Hz UHD HDR Video, 3.5mm Audio, USB Type C KVM Switch, 4x USB HID and 2x USB A 3.2 Gen 1 5Gbps Hub, Thunderbolt 3/4 Compatible - Hot Key Switching (SV231DPUCA) - KVM / audio / USB switch - 2 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| Features | Auto Scan Mode, metal housing, Pushbutton/Hotkey switching, HDR 4K60 4:4:4 compatible, 4K UHD video streaming, USB HID Transport, 2.1 channel audio support, video mode switch |
| Compliant Standards | USB 1.1, HDCP 2.2, USB 3.2 Gen 1 |
| Power | AC 100-240 V 1.2 A |
| Dimensions (WxDxH) | 5.5 in x 6.3 in x 1.6 in |
| Weight | 21.16 oz |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 4K @ 60 Hz |
| Features | Auto Scan Mode, metal housing, Pushbutton/Hotkey switching, HDR 4K60 4:4:4 compatible, 4K UHD video streaming, USB HID Transport, 2.1 channel audio support, video mode switch |
| Compliant Standards | USB 1.1, HDCP 2.2, USB 3.2 Gen 1 |
| Status Indicators | Select |
| Expansion / Connectivity | |
| Interfaces | 1 x DisplayPort output ¦ 2 x USB 3.2 Gen 1 Type A ¦ 4 x USB 1.1 Type A ¦ 2 x USB Type C host ¦ 1 x headphones mini-jack ¦ 1 x microphone mini-jack |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 3 A |
| Voltage Required | AC 100-240 V |
| Electric Current Required | 1.2 A |
| Miscellaneous | |
| Included Accessories | Rubber feet set |
| MTBF | 158,000 hours |
| Compliant Standards | FCC Part 15, RoHS, WEEE, RCM, Thunderbolt 3, Thunderbolt 4, DisplayPort 1.2 (Alt Mode) |
| TAA Compliant | Yes |
| Dimensions & Weight | |
| Width | 5.5 in |
| Depth | 6.3 in |
| Height | 1.6 in |
| Weight | 21.16 oz |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 7.2 in |
| Shipping Depth | 9.4 in |
| Shipping Height | 3.5 in |
| Shipping Weight | 2.2 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years ¦ Technical support - assistance - lifetime |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 80% RH |
| Min Storage Temperature | 14 °F |
| Max Storage Temperature | 140 °F |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 43211604 |
