Lenovo
UPC:
197530262807
UNSPSC:
43211515
MFG:
30GA0087US

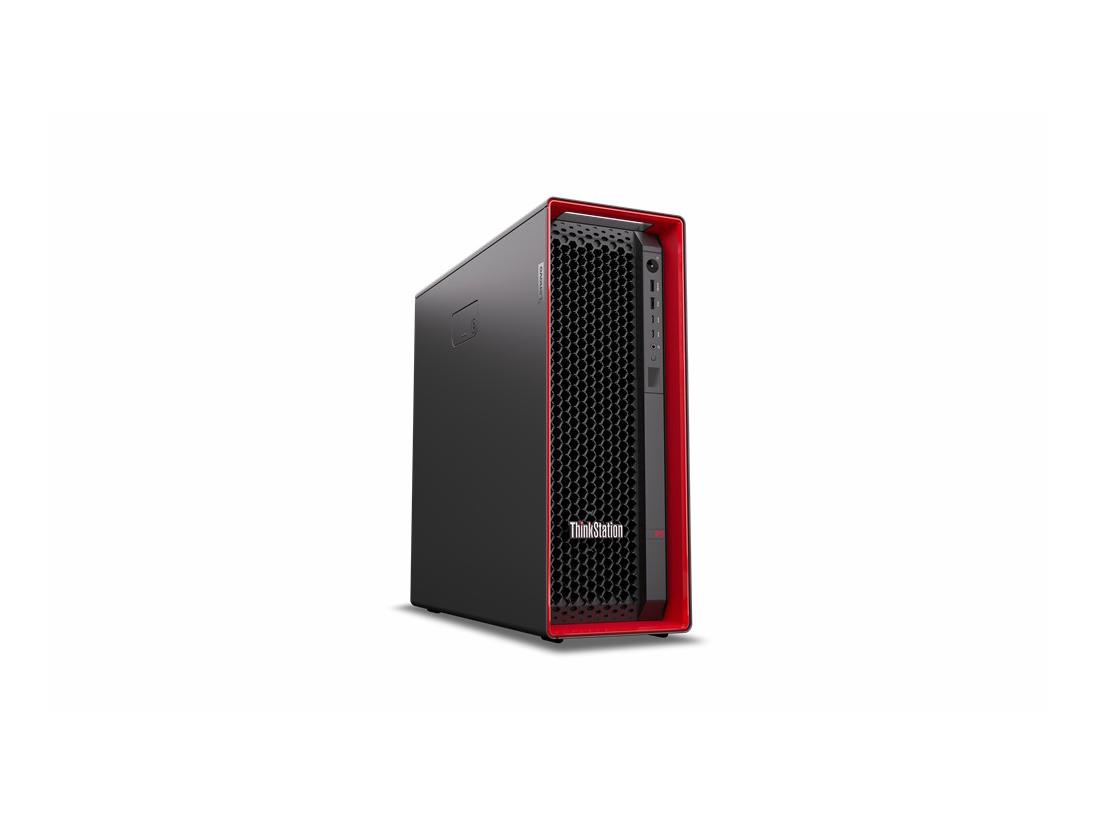

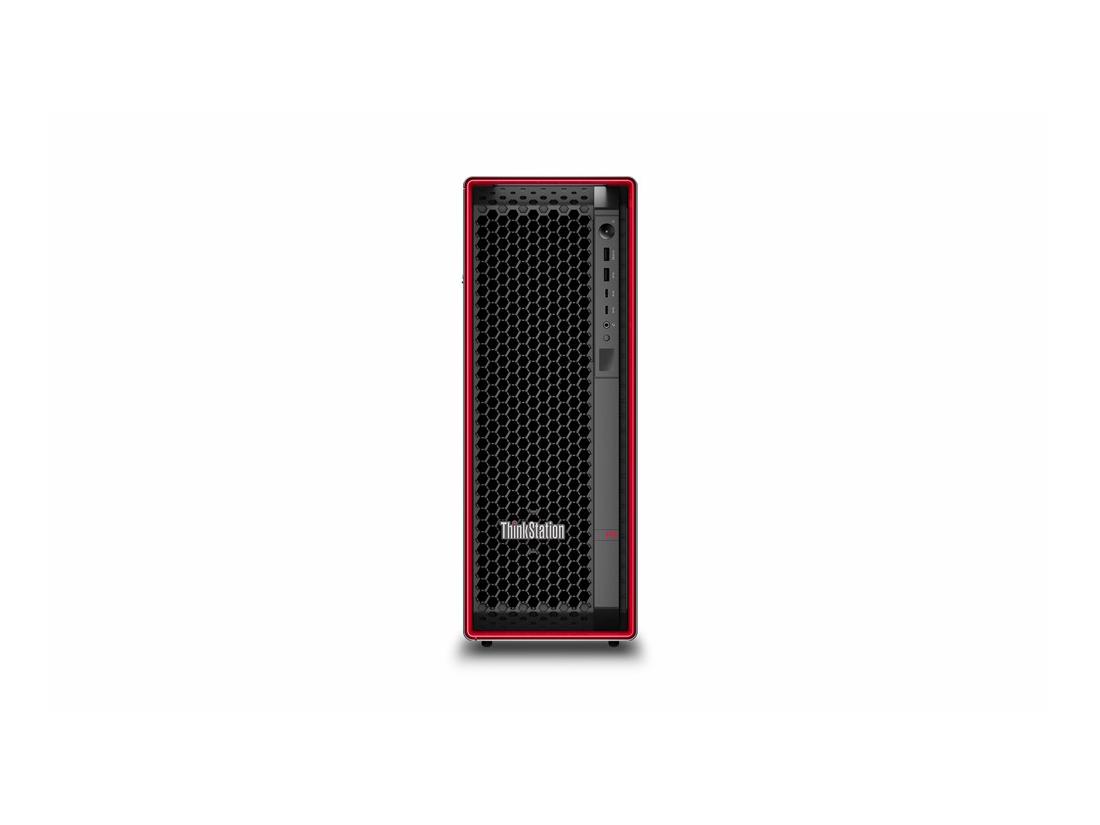

LENOVO THINKSTATION P5 W52455X 16G X4 W11PWS
Out of stock
THINKSTATION P5, INTEL XEON W5-2455X (3.20GHZ, 30MB), WINDOWS 11 PRO FOR WORKSTATIONS 64, 64.0GB, 1X2TB SSD M.2 2280 PCIE GEN4 PERFORMANCE TLC OPAL, NVIDIA RTX 4500 ADA 24GB, BT 5.1 OR ABOVE, INTEL AX211VPRO, 3YR PREMIER NBD, USB, TRADITIONAL, BLACK-ENGLISH (US)
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | ThinkStation P5 |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3.2 GHz |
| Max Turbo Frequency | 4.6 GHz |
| Processor / Number | W5-2455X |
| Multi-Core Technology | 12-Core |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Processor / Socket Type | FCLGA4677 |
| Mainboard / Chipset Type | Intel W790 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 64 GB |
| RAM / Installed Qty | 4 |
| RAM Form Factor | RDIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 2 TB |
| SSD / Installed Qty | 1 |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Graphics Controller | NVIDIA RTX 4500 ADA |
| Video Memory / Installed Size | 24 GB |
| GPU Installed Qty | 1 |
| Audio Output | High Definition (HD) Audio |
| Input Device Support Type | Keyboard |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Professional |
| Interfaces & Connections | 1x headphone / microphone combo jack (3.5mm); 1x USB-C 3.2 Gen 2x2 (support data transfer); 2x USB 2.0; 3x USB 3.2 Gen 2; 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |

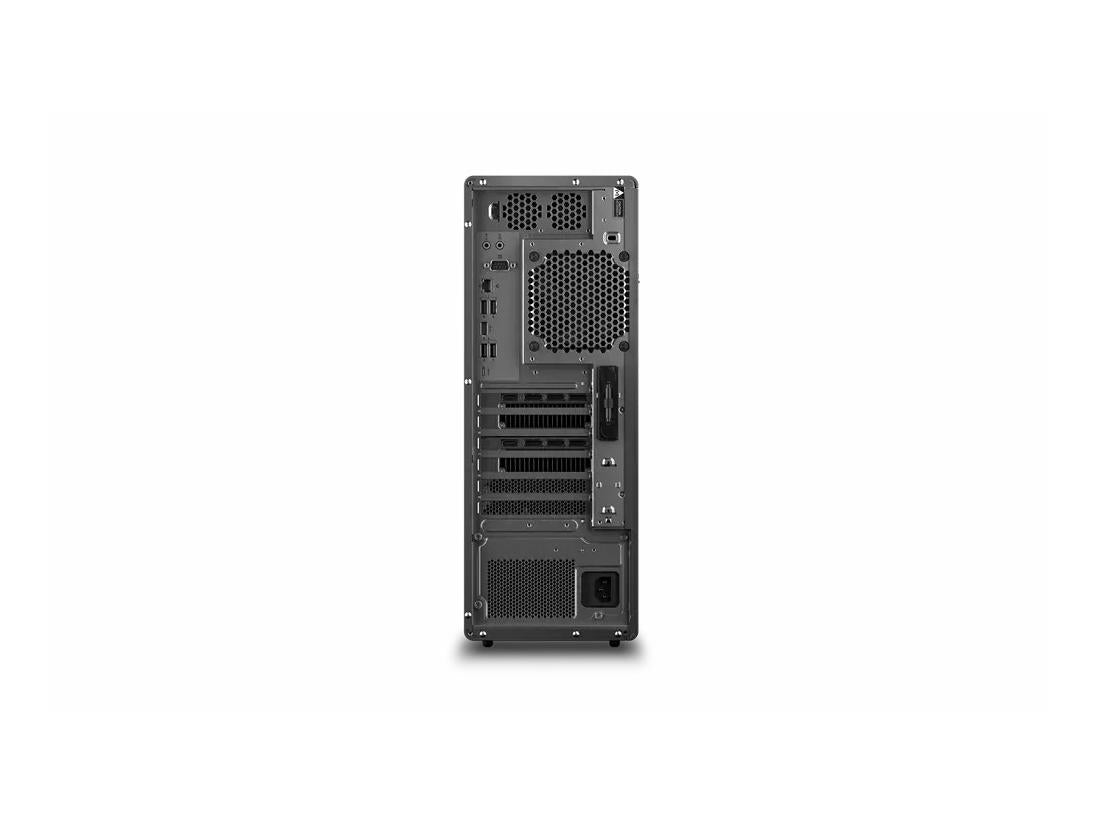

| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer); 2x USB 2.0; 3x USB 3.2 Gen 2; 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots. Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Weight | 19 Kg |
| Processor | |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3.2 GHz |
| Processor / Number | W5-2455X |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Multi-Core Technology | 12-Core |
| Processor / Socket Type | FCLGA4677 |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 64 GB |
| RAM / Installed Qty | 4 |
| RAM / Total Slots Qty | 8 |
| RAM / Max Supported Size | 512 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | None |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 2 TB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| Software | |
| Service & Support Type | 3-year, Onsite |
| Networking | |
| Data Link Protocol | Wi-Fi, Bluetooth |
| Expansion | |
| Interfaces & Connections | 1x headphone / microphone combo jack (3.5mm); 1x USB-C 3.2 Gen 2x2 (support data transfer); 2x USB 2.0; 3x USB 3.2 Gen 2; 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer); 2x USB 2.0; 3x USB 3.2 Gen 2; 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots. Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Weight | 19 Kg |
| Interfaces & Connections | 1x headphone / microphone combo jack (3.5mm); 1x USB-C 3.2 Gen 2x2 (support data transfer); 2x USB 2.0; 3x USB 3.2 Gen 2; 1x Ethernet (GbE RJ-45); 1x line-in (3.5mm); 1x line-out (3.5mm) |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
