Lenovo
UPC:
197531635563
UNSPSC:
43211515
MFG:
30GA006CUS
LENOVO THINKSTATION P5 W32425 16G X2 W11PWS
Out of stock

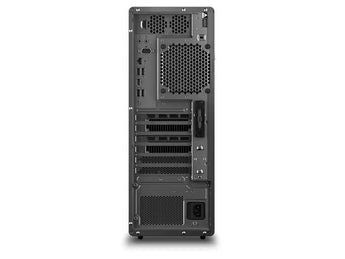

Thinkstation P5 - Tower - Intel - Xeon - W3-2425 - 3GHz - 6-Core - 4.4GHz - DDR5 RDIMM - 32GB RAM - 4800MHz - No Hard Drive Capacity / HDD HDD - No Hard Drive / Spindle Speed - 1TB SSD - NVIDIA RTX 5000 Ada - Power Supply - 1000Watt - Intel AX211 Wi-Fi 6E - USB,Gigabit Ethernet,Bluetooth 5.1 - Card Reader - Microsoft Windows 11 Pro - 3 Year Warranty
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | Thinkstation P5 |
| Cabinet Form Factor | Tower |
| Platform Technology | VPro |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3 GHz |
| Max Turbo Frequency | 4.4 GHz |
| Processor / Number | W3-2425 |
| Multi-Core Technology | 6-Core |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 15 MB |
| Processor / Socket Type | FCLGA4677 |
| Mainboard / Chipset Type | Intel W790 |
| RAM / Technology | DDR5 RDIMM |
| RAM / Total Installed Size | 32 GB |
| RAM Form Factor | RDIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Max Supported Size | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2; PCI Express |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| SSD / Installed Qty | 1 |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Data Link Protocol | USB; Gigabit Ethernet; Bluetooth 5.1 |
| Graphics Controller | NVIDIA RTX 5000 Ada |
| Video Memory / Installed Size | 32 GB |
| Input Device Support Type | Card Reader |
| Keyboard | USB Traditional Keyboard, Englishs |
| Mouse | USB Calliope Mouse |
| Operating System | Microsoft Windows 11 Pro |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer) 2x USB 2.0 3x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x line-in (3.5mm) 1x line-out (3.5mm) |
| Service & Support Type | 3 Year Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified, Kensington Security Slot, 3 x 7 mm |
| Expansion Bays Total (Free) | Bay 1 supports one 3.5" HDD, standard Bay 2 supports one 3.5" HDD, standard |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots, Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Efficiency | 92% |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Weight | 19 Kg |
| Enclosure Color | Black |
| Min Operating Temperature | 10 Degree Celsius |
| Max Operating Temperature | 35 Degree Celsius |
| Humidity Range Operating | 20% to 80% |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified, Kensington Security Slot, 3 x 7 mm |
| COO | MEXICO |
| Green Product Information | |
| TCO Certified | Yes |
| EPEAT Level | Gold |
| Energy Star Compliant | Y |
| Processor | |
| Processor / Type | Xeon |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 3 GHz |
| Processor / Number | W3-2425 |
| Processor / Installed Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 15 MB |
| Multi-Core Technology | 6-Core |
| Processor / Socket Type | FCLGA4677 |
| Memory | |
| RAM / Technology | DDR5 RDIMM |
| RAM / Total Installed Size | 32 GB |
| RAM / Max Supported Size | 512 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2; PCI Express |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 1 TB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| Software | |
| Service & Support Type | 3 Year Warranty |
| Networking | |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Data Link Protocol | USB; Gigabit Ethernet; Bluetooth 5.1 |
| Expansion | |
| Front I/O Ports | 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 1x USB-C 3.2 Gen 2x2 (support data transfer) 2x USB 2.0 3x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x line-in (3.5mm) 1x line-out (3.5mm) |
| Expansion Bays Total (Free) | Bay 1 supports one 3.5" HDD, standard Bay 2 supports one 3.5" HDD, standard |
| Expansion Slots Total (Free) | Supports 6 PCIe slots with 2x PCIe 5.0 slots and 4x PCIe 4.0 slots, Slot 1: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 2: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 3: PCIe 5.0 x16, full height, full length, 75W, double-width, by CPU Slot 4: PCIe 4.0 x4, full height, full length, 25W, by PCH Slot 5: PCIe 4.0 x8, full height, full length, 25W, by CPU Slot 6: PCIe 4.0 x4, full height, full length, 25W, by PCH |
| Power | |
| Power / Device Type | Power Supply |
| Power / Provided (W) | 1000 Watt |
| Dimensions&Miscellaneous | |
| Width | 6.5 Inch |
| Depth | 17.9 Inch |
| Height | 17.6 Inch |
| Enclosure Color | Black |
| Weight | 19 Kg |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
