Lenovo
UPC:
198153994656
UNSPSC:
43211515
MFG:
30H00072CA
LENOVO THINKSTATION P3 TINY I714700 16G 512GB W
1 in stock, ready to ship

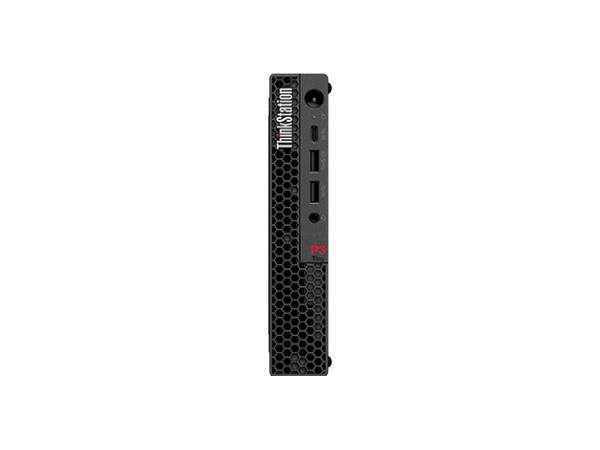

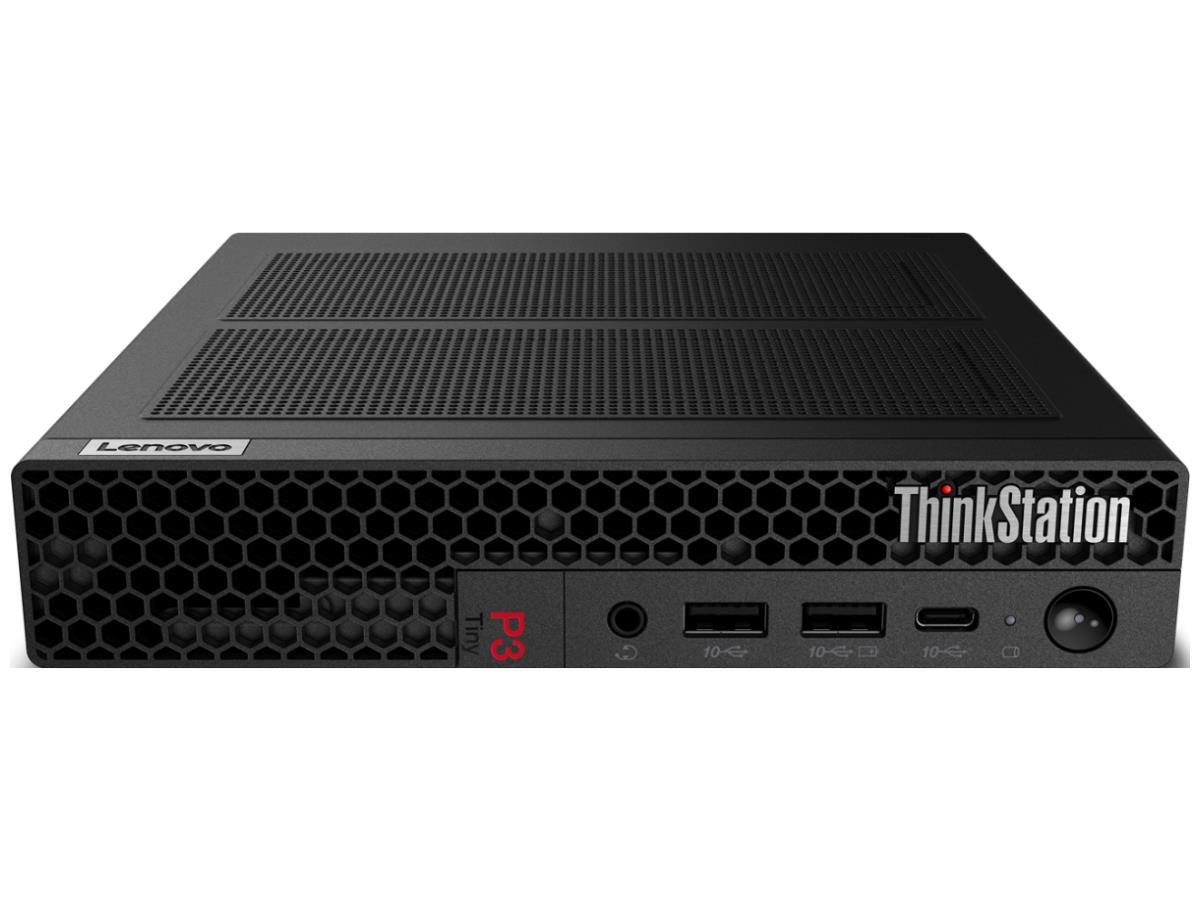

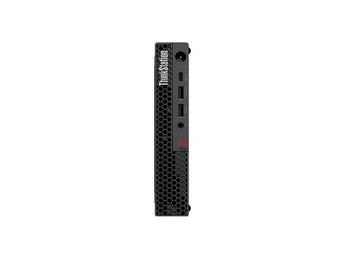

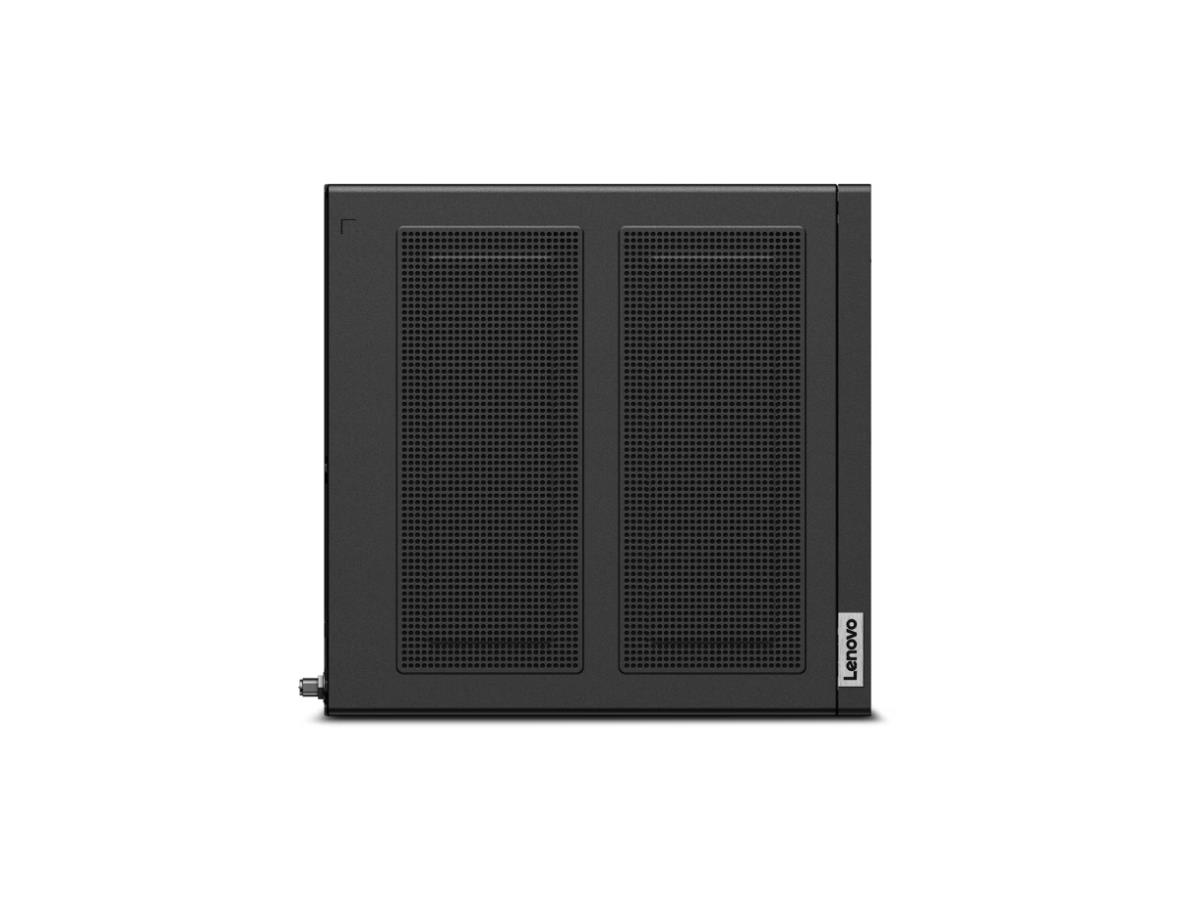

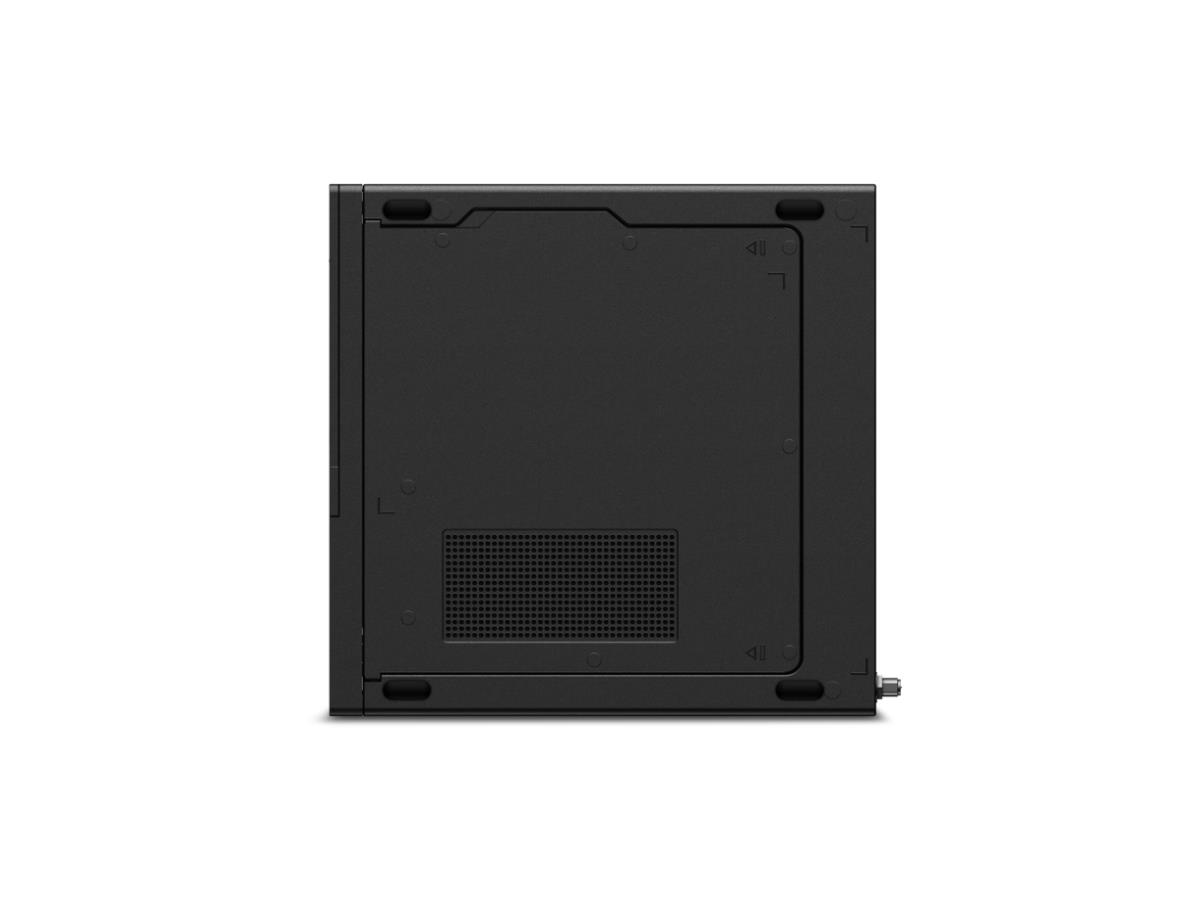

LENOVO THINKSTATION P3 TINY I714700 16G 512GB W
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | ThinkStation P3 Tiny |
| Processor / Generation | Intel 13th Generation |
| Cabinet Form Factor | Tiny |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.1 GHz |
| Max Turbo Frequency | 5.4 GHz |
| Processor / Number | 14700 |
| Multi-Core Technology | 20-Core |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Processor / Socket Type | FCLGA1700 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM Form Factor | SODIMM |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 96 GB |
| 2nd Hard Drive Capacity | None |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe 4.0 NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| Optical Storage Type | No optical support |
| Network Controller | Intel I219-LM, 1x GbE RJ-45 |
| Data Link Protocol | Gigabit Ethernet |
| Video Interfaces | DisplayPort; HDMI |
| Audio Output | High Definition (HD) Audio, Realtek ALC256VB codec |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45) |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Physical Locks; Chassis Intrusion Switch |
| Expansion Bays Total (Free) | No bays |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 100V - 240V |
| Efficiency | 90% |
| Width | 7 Inch |
| Depth | 7.2 Inch |
| Height | 1.5 Inch |
| Weight | 1.4 Kg |
| Min Operating Temperature | 5 Celsius |
| Max Operating Temperature | 35 Celsius |
| Humidity Range Operating | 20% to 80% |
| Processor | |
| Processor / Generation | Intel 13th Generation |
| Processor / Type | Core i7 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.1 GHz |
| Processor / Number | 14700 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 30 MB |
| Multi-Core Technology | 20-Core |
| Processor / Socket Type | FCLGA1700 |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 96 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCIe 4.0 NVMe |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None |
| Optical Storage Type | No optical support |
| Networking | |
| Network Controller | Intel I219-LM, 1x GbE RJ-45 |
| Data Link Protocol | Gigabit Ethernet |
| Expansion | |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45) |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45) |
| Expansion Bays Total (Free) | No bays |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile |
| Power | |
| Power / Device Type | Power Supply |
| Power / Voltage Required | 100V - 240V |
| Dimensions&Miscellaneous | |
| Width | 7 Inch |
| Depth | 7.2 Inch |
| Height | 1.5 Inch |
| Weight | 1.4 Kg |
| Interfaces & Connections | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45) |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified; Physical Locks; Chassis Intrusion Switch |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 1 | In Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
