Lenovo
UPC:
198153626441
UNSPSC:
43211515
MFG:
30H0006GUS
LENOVO THINKSTATION P3 TINY I514500 16G 512GB W
Out of stock
ThinkStation P3 Tiny - Tiny - Intel - Core i5 - Processor / Number: 14500 - 1.9GHz - 14-Core - 3.7GHz - DDR5 SODIMM - 16GB RAM - 5600MHz - 512GB SSD - Intel UHD Graphics 770 - Power Adapter - 230Watt - Intel AX211 Wi-Fi 6E - Gigabit Ethernet,Bluetooth 5.1,IEEE 802.11 ax - Mouse,Keyboard - Microsoft Windows 11 Professional 64-bit - 3 Years Warranty
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | ThinkStation P3 Tiny |
| Processor / Generation | Intel 14th Generation |
| Cabinet Form Factor | Tiny |
| Platform Technology | Intel vPro Enterprise with Intel AMT 16 |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.6 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 14500 |
| Multi-Core Technology | 14-Core |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Processor / Socket Type | FCLGA1700 |
| Mainboard / Chipset Type | Intel Q670 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM Form Factor | SODIMM |
| RAM / Memory Speed | 5600 MHz |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 96 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Data Link Protocol | Wi-Fi, Bluetooth; Ethernet |
| Graphics Controller | NVIDIA T400 |
| Video Memory / Installed Size | 4 GB |
| GPU Installed Qty | 1 |
| Video Interfaces | HDMI; DisplayPort |
| Audio Output | High Definition (HD) Audio, Realtek ALC256VB codec |
| Input Device Support Type | Mouse; Keyboard |
| Keyboard | USB Traditional Keyboard, Black |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); |

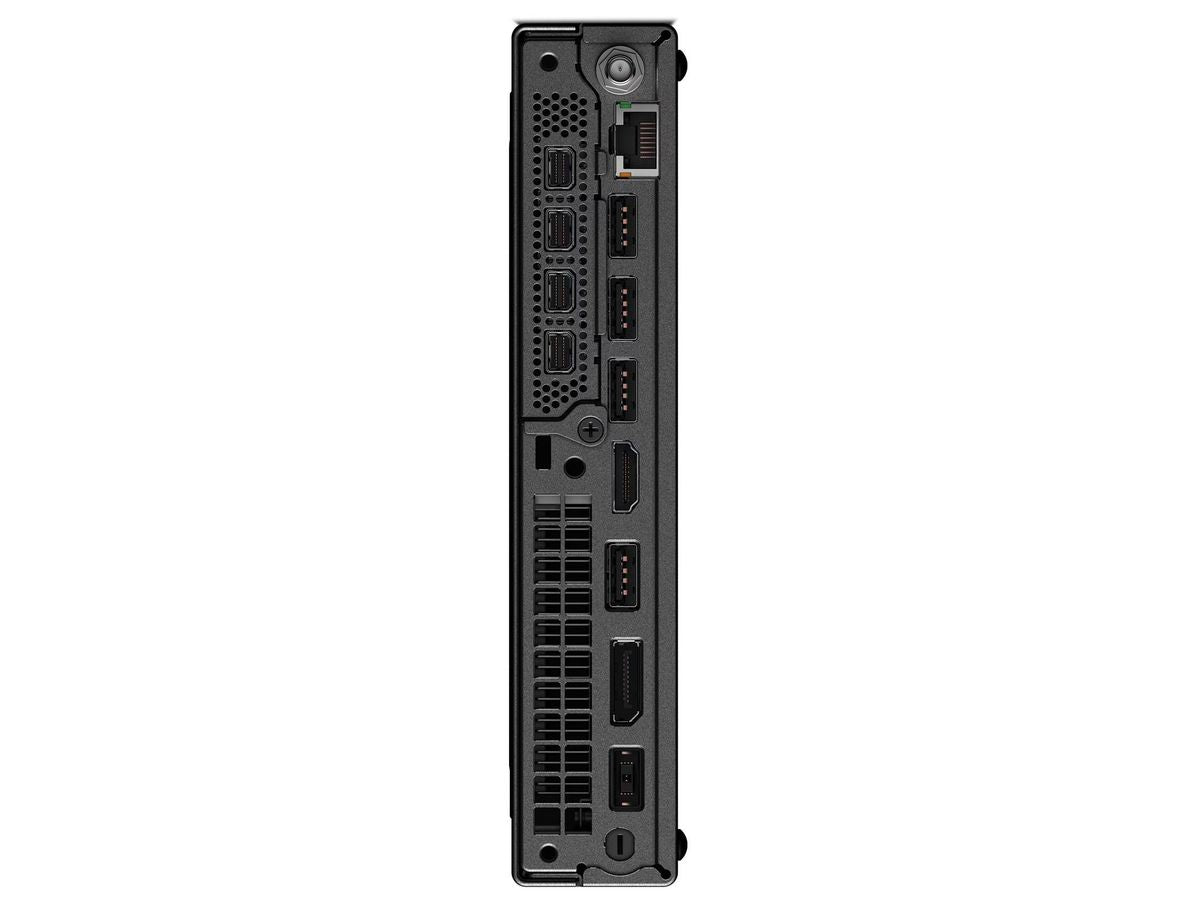

| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45); |
| Service & Support Type | 3 Year Warranty |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| Expansion Bays | No bays |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Efficiency | 90% |
| Width | 7.0 Inch |
| Depth | 7.2 Inch |
| Height | 1.5 Inch |
| Weight | 1.4 Kg |
| Enclosure Color | Black |
| Processor | |
| Processor / Generation | Intel 14th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.6 GHz |
| Processor / Number | 14500 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Multi-Core Technology | 14-Core |
| Processor / Socket Type | FCLGA1700 |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 2 |
| RAM / Max Supported Size | 96 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | M.2 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| Software | |
| Service & Support Type | 3 Year Warranty |
| Networking | |
| Network Controller | Intel AX211 Wi-Fi 6E |
| Data Link Protocol | Wi-Fi, Bluetooth; Ethernet |
| Expansion | |
| Front I/O Ports | 1x USB-C (USB 10Gbps / USB 3.2 Gen 2), data transfer only; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2), Always On; 1x USB-A (USB 10Gbps / USB 3.2 Gen 2); 1x headphone / microphone combo jack (3.5mm); |
| Rear I/O Ports | 2x USB-A (USB 10Gbps / USB 3.2 Gen 2); 2x USB-A (USB 5Gbps / USB 3.2 Gen 1), one supports Smart Power On; 1x HDMI 2.1 TMDS; 1x DisplayPort 1.4; 1x Ethernet (RJ-45); |
| Expansion Bays | No bays |
| Expansion Slots Total (Free) | One PCIe 4.0 x8, low-profile |
| Power | |
| Power / Device Type | Power Adapter |
| Power / Provided (W) | 230 Watt |
| Dimensions&Miscellaneous | |
| Width | 7.0 Inch |
| Depth | 7.2 Inch |
| Height | 1.5 Inch |
| Enclosure Color | Black |
| Weight | 1.4 Kg |
| Special Feature | |
| Security Devices | Discrete TPM 2.0, TCG certified, FIPS 140-2 certified |
| COO | MEXICO |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | MFG Drop Shipped | 0 | No Stock |
| 2 | Mississauga,ON | 0 | No Stock |
| 3 | Richmond,BC | 0 | No Stock |
| 4 | Dartmouth,NS | 0 | No Stock |
| 5 | Calgary,AB | 0 | No Stock |
