Lenovo
UPC:
197529247051
UNSPSC:
43211515
MFG:
30HA001GUS
LENOVO ENG THINKSTATION P3 ULTRA I513600 16G X1 N W
Out of stock

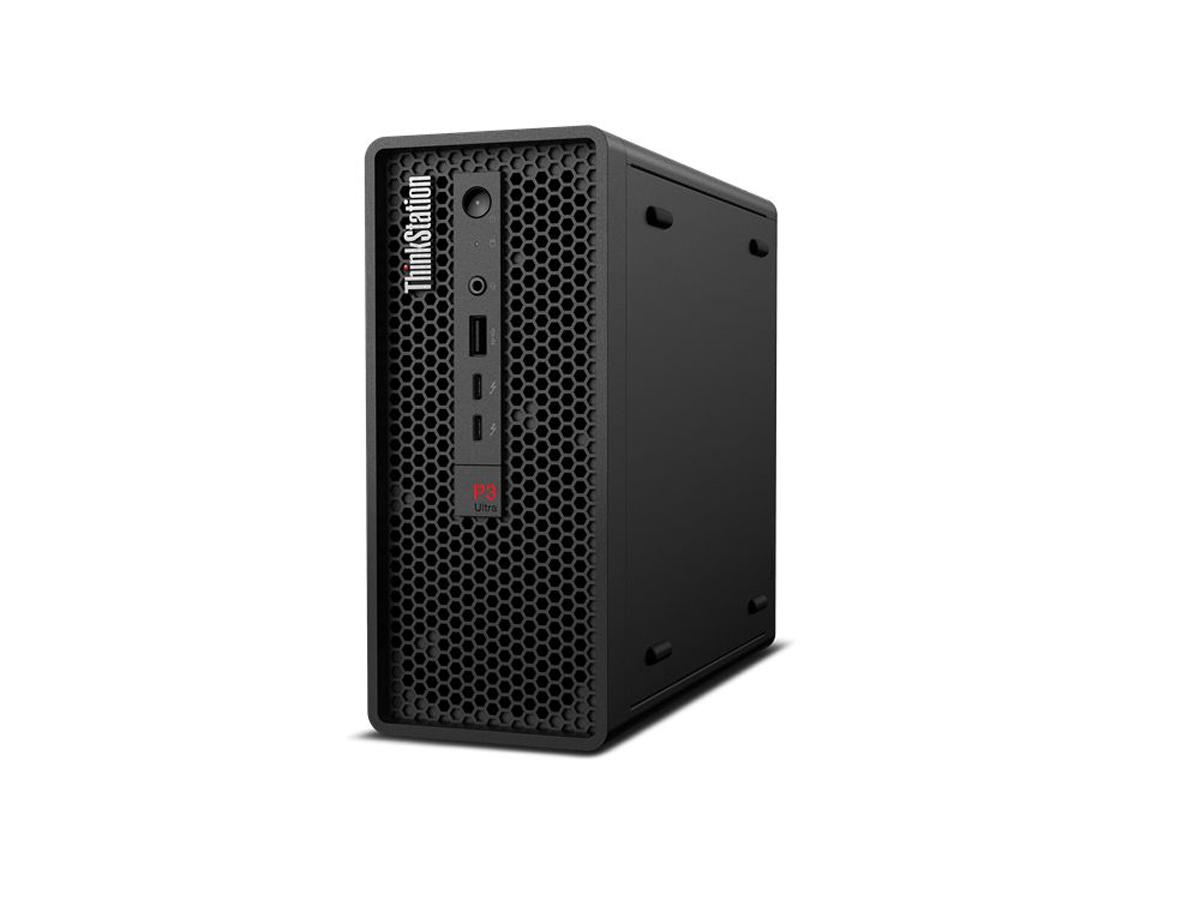

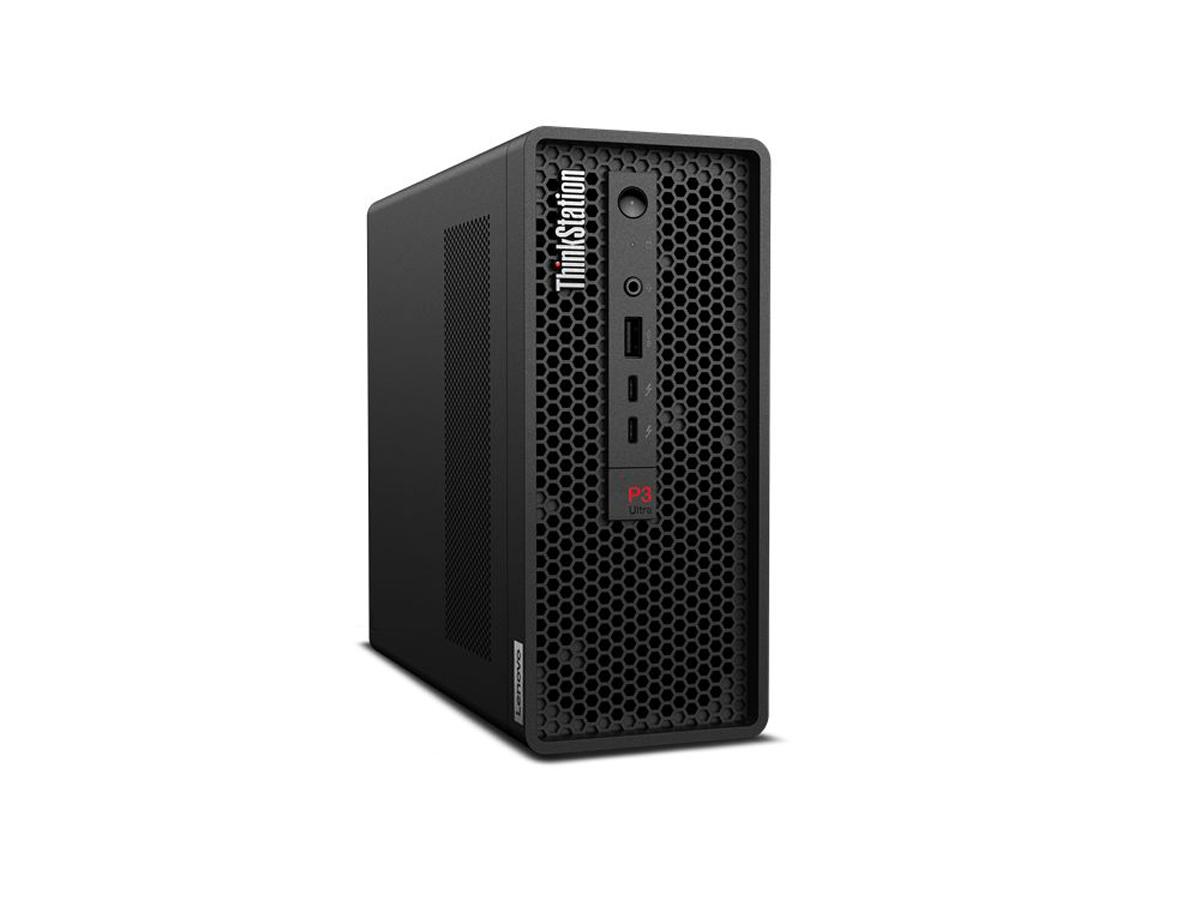

ThinkStation P3 Ultra - Intel - Core - i5-13600 vPro - (E-cores up to 3.70GHz - 24MB) - Windows 11 Pro 64 - 16.0GB - 1x512GB SSD M.2 2280 PCIe Gen4 Performance TLC Opal - Intel - UHD Graphics 770 - Intel - AX211vPro,BT 5.1 or above - 3 Year Premier NBD - USB - Traditional - Black-English (US)
Product Specifications
| Primary Information | |
|---|---|
| System Type | Workstation |
| Model | Lenovo ThinkStation P3 Ultra(Intel) |
| Processor / Generation | Intel 13th Generation |
| Cabinet Form Factor | Mini Tower |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.7 GHz |
| Max Turbo Frequency | 5 GHz |
| Processor / Number | 13600 |
| Multi-Core Technology | 14-Core |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Processor / Socket Type | FCLGA1700 |
| Mainboard / Chipset Type | Intel W680 |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM Form Factor | SODIMM |
| RAM / Memory Speed | 4800 MHz |
| RAM / Total Slots Qty | 4 |
| RAM / Max Supported Size | 128 GB |
| 2nd Hard Drive Capacity | None GB |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Network Controller | Intel I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE |
| Data Link Protocol | Wi-Fi, Bluetooth 5.1 |
| Graphics Controller | Intel UHD Graphics 770; NVIDIA T1000 |
| Video Memory / Technology | GDDR6 |
| Video Memory / Installed Size | 8 GB |
| GPU Installed Qty | 1 |
| Audio Output | High Definition (HD) Audio, Realtek ALC897-Q codec |
| Input Device Support Type | Keyboard, Mouse |
| Keyboard | USB Traditional Keyboard, Black, English |
| Mouse | USB Calliope Mouse, Black |
| Operating System | Microsoft Windows 11 Pro |
| Interfaces & Connections | 1x USB 3.2 Gen 2, 2x Thunderbolt 4, 1x headphone / microphone combo jack (3.5mm), 3x DisplayPort 1.2, 4x USB 3.2 Gen 2, 1x Ethernet (GbE RJ-45), 1x Ethernet (2.5GbE RJ-45), |

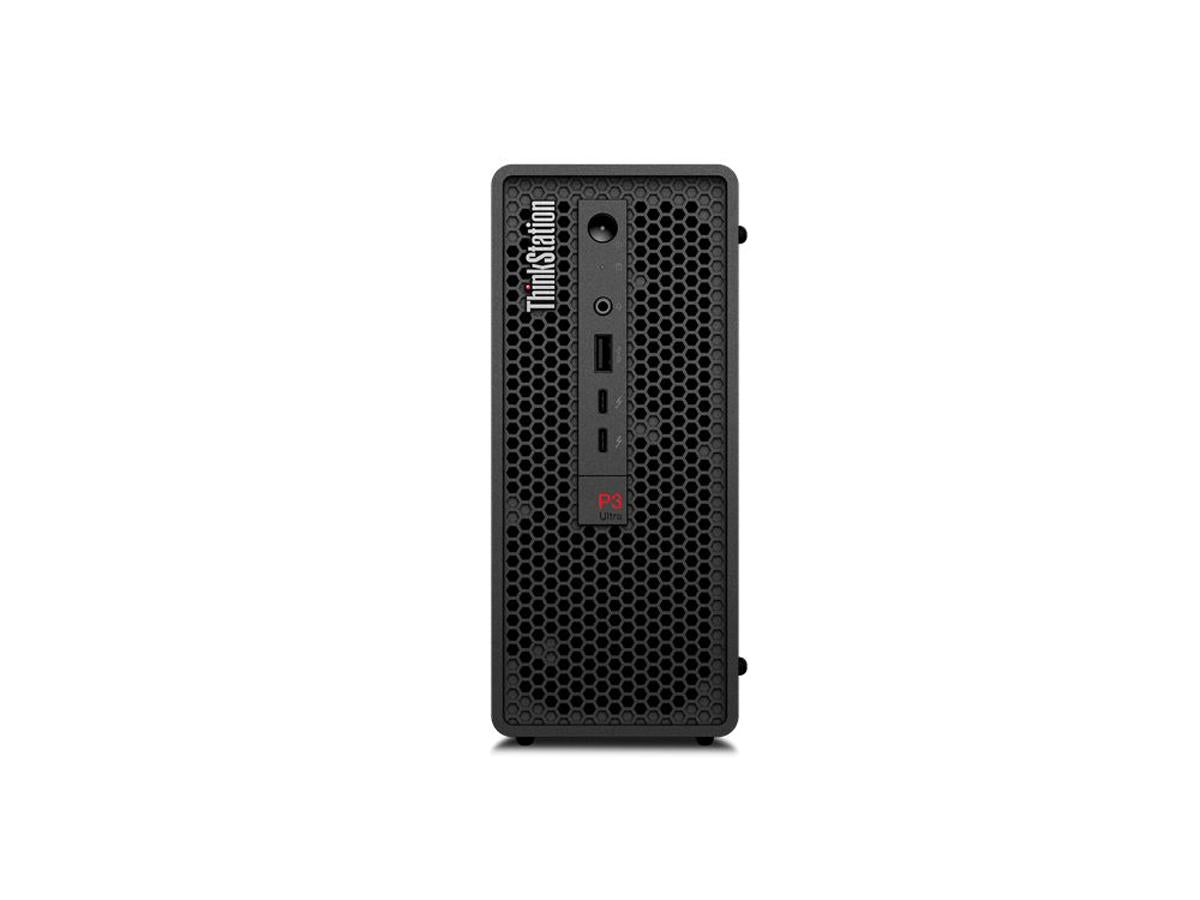

| Front I/O Ports | 1x USB 3.2 Gen 2 2x Thunderbolt 4 1x headphone / microphone combo jack (3.5mm) |

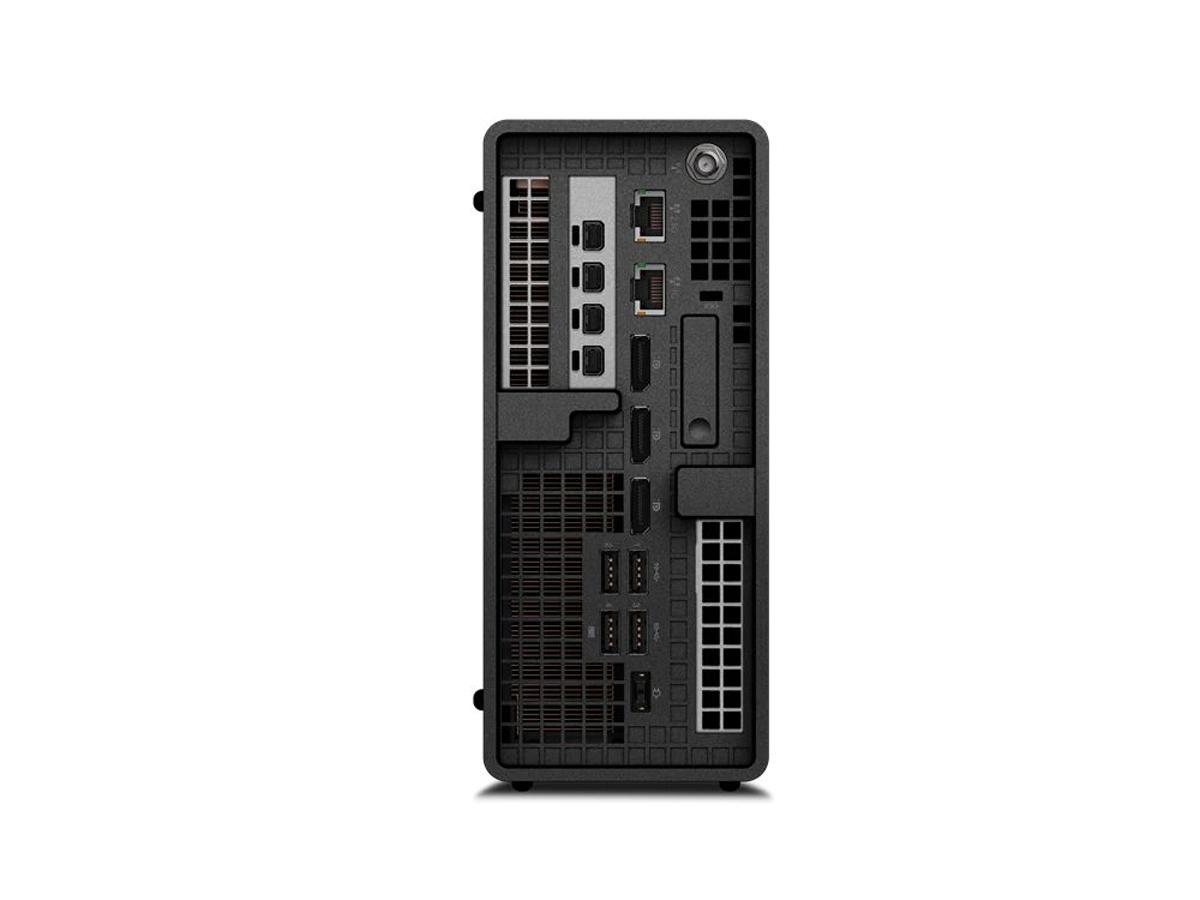

| Rear I/O Ports | 3x DisplayPort 1.2 4x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x Ethernet (2.5GbE RJ-45) |
| Service & Support Type | 3-year, Onsite |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Expansion Bays | 1x 2.5" disk bay (optional, comes with disk) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 One PCIe 3.0 x8 (x4 lanes) |
| Power / Device Type | AC Adapters |
| Power / Provided (W) | 300 Watt |
| Power / Voltage Required | 100V - 240V |
| Width | 3.43 Inch |
| Depth | 7.95 Inch |
| Height | 8.78 Inch |
| Weight | 7.94 lbs. |
| Enclosure Color | Black |
| Features | Designed for compact spaces, suitable for any industry |
| Min Operating Temperature | 10 Celsius |
| Max Operating Temperature | 35 Celsius |
| Humidity Range Operating | 20% to 80% |
| Processor | |
| Processor / Generation | Intel 13th Generation |
| Processor / Type | Core i5 |
| Processor / Manufacturer | Intel |
| Processor / Clock Speed | 2.7 GHz |
| Processor / Number | 13600 |
| Processor / Installed Qty | 1 |
| Processor / Max Supported Qty | 1 |
| Cache Memory Type | Smart Cache |
| Cache Memory Installed Size | 24 MB |
| Multi-Core Technology | 14-Core |
| Processor / Socket Type | FCLGA1700 |
| Special Feature | |
| RoHS | Y |
| Security Devices | Discrete TPM 2.0, TCG certified |
| Features | Designed for compact spaces, suitable for any industry |
| COO | MEXICO |
| Green Product Information | |
| TCO Certified | TCO Certified 9.0 |
| EPEAT Level | Gold |
| Energy Star Compliant | Yes |
| Memory | |
| RAM / Technology | DDR5 |
| RAM / Total Installed Size | 16 GB |
| RAM / Installed Qty | 1 |
| RAM / Total Slots Qty | 4 |
| RAM / Max Supported Size | 128 GB |
| Storage | |
| Hard Drive Capacity / HDD | None GB |
| Hard Drive / Installed Qty | None |
| Hard Drive / Interface Type | PCI Express 4.0 x4 |
| Hard Drive / Spindle Speed | None RPM |
| SSD Capacity | 512 GB |
| 2nd Hard Drive Capacity | None GB |
| SSD / Installed Qty | 1 |
| Optical Storage Type | None |
| Software | |
| Service & Support Type | 3-year, Onsite |
| Networking | |
| Network Controller | Intel I225-LM + I210-AT, 2x RJ-45, 2.5GbE + GbE |
| Data Link Protocol | Wi-Fi, Bluetooth 5.1 |
| Expansion | |
| Interfaces & Connections | 1x USB 3.2 Gen 2, 2x Thunderbolt 4, 1x headphone / microphone combo jack (3.5mm), 3x DisplayPort 1.2, 4x USB 3.2 Gen 2, 1x Ethernet (GbE RJ-45), 1x Ethernet (2.5GbE RJ-45), |
| Front I/O Ports | 1x USB 3.2 Gen 2 2x Thunderbolt 4 1x headphone / microphone combo jack (3.5mm) |
| Rear I/O Ports | 3x DisplayPort 1.2 4x USB 3.2 Gen 2 1x Ethernet (GbE RJ-45) 1x Ethernet (2.5GbE RJ-45) |
| Expansion Bays | 1x 2.5" disk bay (optional, comes with disk) |
| Expansion Slots Total (Free) | One PCIe 4.0 x16 One PCIe 3.0 x8 (x4 lanes) |
| Power | |
| Power / Device Type | AC Adapters |
| Power / Provided (W) | 300 Watt |
| Power / Voltage Required | 100V - 240V |
| Dimensions&Miscellaneous | |
| Width | 3.43 Inch |
| Depth | 7.95 Inch |
| Height | 8.78 Inch |
| Enclosure Color | Black |
| Weight | 7.94 lbs. |
| Interfaces & Connections | 1x USB 3.2 Gen 2, 2x Thunderbolt 4, 1x headphone / microphone combo jack (3.5mm), 3x DisplayPort 1.2, 4x USB 3.2 Gen 2, 1x Ethernet (GbE RJ-45), 1x Ethernet (2.5GbE RJ-45), |
| UNSPSC Code | |
| UNSPSC Code | 43211515 |
