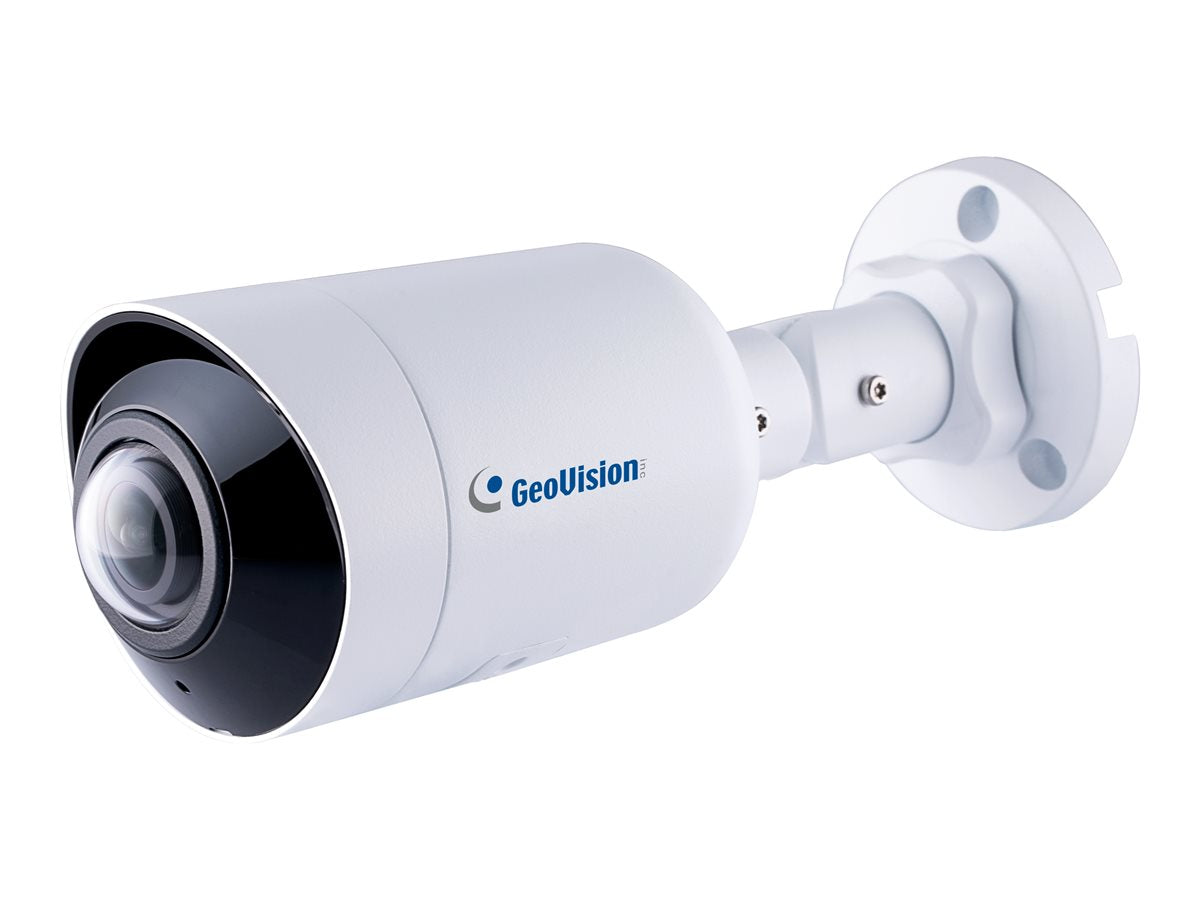

GEOVISION GV-TBLP5800AI 180 PANORAMIC 5MP H.265 SUPER LOW LUX WDR PRO IR FIXED BULLET IP CAMERA
8 in stock, ready to ship
GeoVision GV-TBLP5800 - Network panoramic camera - bullet - outdoor - ingress protection - color (Day&Night) - 5 MP - 2880 x 1620 - M12 mount - fixed iris - fixed focal - audio - LAN 10/100 - MJPEG, H.264, H.265 - DC 12 V / PoE
Product Specifications
| Primary Information | |
|---|---|
| Product Description | GeoVision GV-TBLP5800 - network panoramic camera - bullet |
| Device Type | Network panoramic camera - fixed - bullet - outdoor - ingress protection |
| Audio | Yes: one-way audio capability, built-in microphone |
| Dimensions (WxDxH) | 2.8 in x 7.8 in x 2.8 in |
| Weight | 14.81 oz |
| Connectivity Technology | Wired |
| Camera | Color - Day&Night |
| Max Resolution | 2880 x 1620 |
| Frame Rate (max) | 30 frames per second |
| Motion Detection | Yes |
| Optical Sensor Type | PS CMOS - 1/2.7" - 5 MP |
| Minimum Illumination | 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Focal Length Control | Fixed focal |
| Focal Length | 1.68 mm |
| Lens Mounting | M12 mount |
| Focus Adjustment | Fixed focus |
| Lens Iris | F/2.0 - fixed iris |
| Panning Range (degree) | 0 to 360 |
| Tilting Range (degree) | 0 to 90 |
| Interfaces | Ethernet 10Base-T/100Base-TX |
| Voltage | DC 12 V / PoE |
| Features | Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function |
| Manufacturer Warranty | 2-year warranty |
| Environmental Parameters (operating) | -22 °F - 140 °F; 0 - 95% (non-condensing) relative humidity |
| General | |
| Device Type | Network panoramic camera |
| Audio Support | Yes: one-way audio capability, built-in microphone |
| Audio Formats | G.711 |
| Form Factor | Bullet |
| Connectivity Technology | Wired |
| Width | 2.8 in |
| Depth | 7.8 in |
| Height | 2.8 in |
| Weight | 14.81 oz |
| Camera | |
| Type | Color - Day&Night - fixed - outdoor - ingress protection |
| Digital Video Format | H.264, H.265, MJPEG |
| Max Digital Video Resolution | 2880 x 1620 |
| Motion Detection | Yes |
| Exposure Range | 1 sec - 1/100000 sec |
| Minimum Illumination | 0.01 lux - color - F2.0 - AGC on ¦ 0 lux - IR |
| Infrared LEDs | 2 |
| Infrared Distance | 66 ft |
| Digital Video Capture Resolution | 2880 x 1620, 2560 x 1440, 2304 x 1296, 1920 x 1080, 1280 x 720, 720 x 576, 640 x 480, 640 x 360, 704 x 288, 352 x 288 |
| Frame Rate (max) | 30 frames per second |
| Features | Auto white balance, manual white balance, auto gain control, manual gain control, Wide Dynamic Range (WDR) Pro, infrared-cut filter, 37.8m detect distance, 15.1m observe distance, 7.6m recognize distance, 3.8m identify distance, 3 video streams, audio alarm, tamper-detection, flickerless, 3D Noise Reduction Technology, image flip, image mirror, 180° image rotation, intrusion detection, cross line detection, object enter area detection, object leave area detection, ONVIF (Profile G) support, ONVIF (Profile S) support, ONVIF (Profile T) support, ONVIF (Profile M) support, Super Low Lux, Intelligent IR Technology, Defog, text overlay, Privacy Mask Function |
| Image Sensor | |
| Type | 5 MP PS CMOS 1/2.7" |
| Lens Construction | |
| Type | M12 mount - fixed focal |
| Focal Length | 1.68 mm |
| Lens Iris | F/2.0 fixed iris |
| Focus Adjustment | Fixed focus |
| Horizontal Field of View (degree) | 180 |
| Panning | |
| Range (degree) | 0 to 360 |
| Tilting | |
| Range (degree) | 0 to 90 |
| Interfaces | |
| Network Interface | Ethernet 10Base-T/100Base-TX |
| Network Protocols | ARP, DDNS, DHCP, DNS, FTP, HTTP, HTTPS, IGMP, IPv4, IPv6, NTP, PPPoE, RTCP, RTP, RTSP, SMTP, SNMP, TCP, UDP |
| Expansion / Connectivity | |
| Ports | LAN - RJ-45 |
| Supported Memory Cards | microSD Card, microSDHC Card, microSDXC UHS-I Card |
| Miscellaneous | |
| Included Accessories | Waterproof rubber set, screw kit, drill hole template, torx wrench |
| Compliant Standards | IEEE 802.1x, IEEE 802.3af, IP67, FCC, LVD, RoHS |
| Power | |
| Power Requirements | DC 12 V / PoE - 1.25 A |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | -22 °F |
| Max Operating Temperature | 140 °F |
| Relative Humidity (operating) | 0 - 95% (non-condensing) |
| Special Feature | |
| COO | Inquire |
| TAA compliance | Inquire |
| UNSPSC Code | |
| UNSPSC Code | 46171610 |
