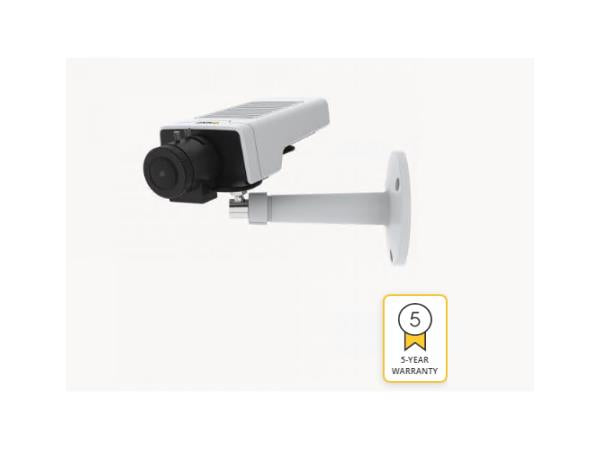

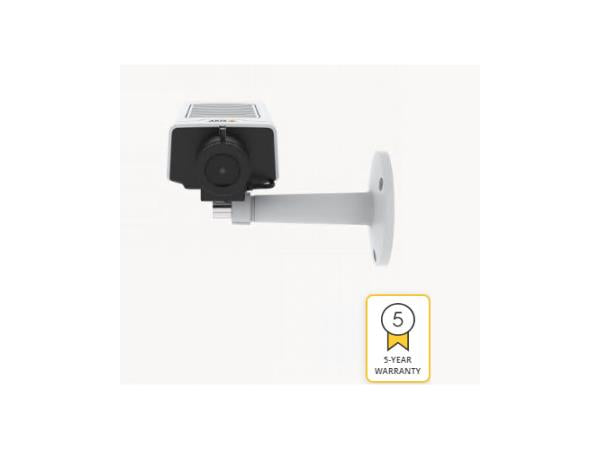

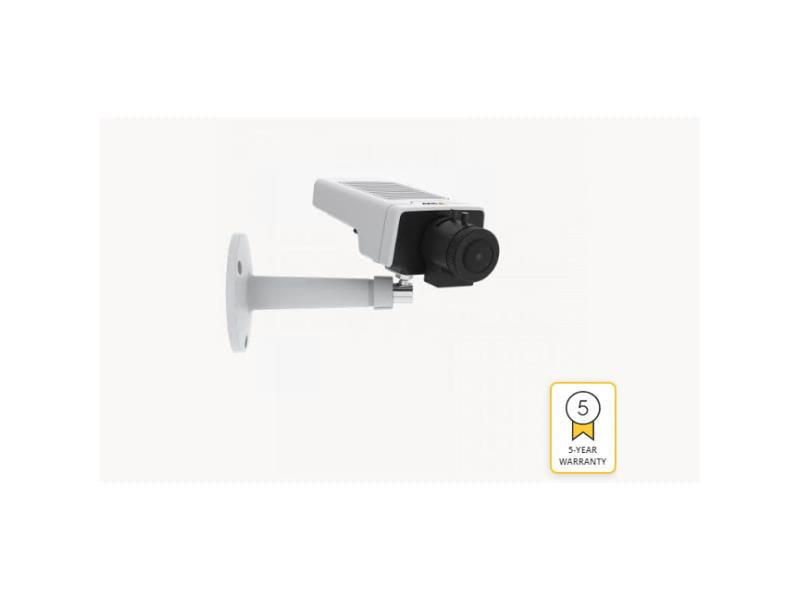

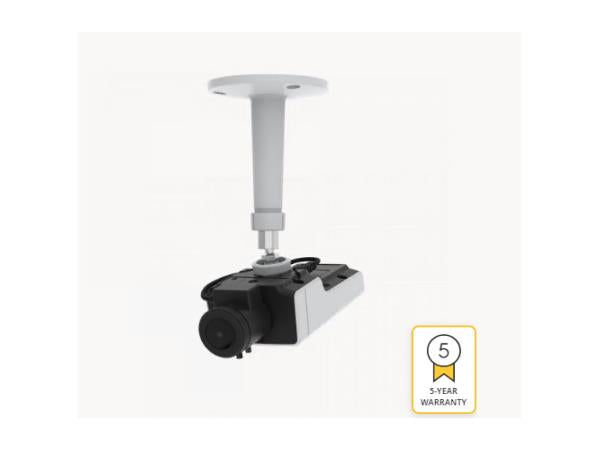

AXIS FIXED BOX CAMERA M1135 MK II
HDTV 1080p resolution, day/night, compact fixed box camera with CS-mount providing Forensic WDR and Lightfinder technology. Includes an IR corrected varifocal 3-10.5 mm F1.4 DC-iris lens. Camera also supports i-CS lenses for remote installation zoom and focus. Multiple, individually configurable H.264, H.265 and Motion JPEG streams; full HDTV 1080p at 25/30 fps. Axis Zipstream technology for reduced bandwidth and storage needs. AXIS Object Analytics and active tampering alarm. Audio in and audio detection with either built-in microphone or optional microphone. I/O for alarm/event handling. MQTT support. Axis Edge Vault for added cyber security. MicroSD card slot for local storage. Powered by IEEE 802.3af/802.3at Type 1 Class 3 or 8-28VDC input. Includes stand for wall and ceiling mount. Midspan or power supply not included.
Product Specifications
| Primary Information | |
|---|---|
| Camera Type | Box Camera |
| Connectivity Technology | Wired |
| Interface Type | RJ-45; Ethernet 10Base-T/100Base-TX |
| Camera Sensor Type | RGB; CMOS |
| Camera Sensor Size | 1/2.9" |
| Effective Sensor Resolution | 2 MP |
| Focal Length | 3-10.5 mm |
| Interfaces & Connections | RJ45 10BASE-T/100BASE-TX PoE; Terminal block for one input and one output (12 V DC output, max load 25 mA); DC input, terminal block; 3.5 mm mic/line in |
| RAM / Total Installed Size | 1 GB |
| Flash Memory / Installed Size | 512 MB |
| Capture | |
| Digital Video Capture Speed | 25/30 Frames per second |
| Digital Video Capture Resolution | 1920 x 1080 |
| Digital Video Format | H.265; Motion JPEG; H.264 |
| Dimensions&Miscellaneous | |
| Width | 63 Mm |
| Depth | 70 Mm |
| Height | 149 Mm |
| General | |
| Model | AXIS M1135 Mk II |
| Service&Support | |
| Service & Support Type | 5-year warranty |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 46171610 |
