STARTECH 2-PORT DUAL-MONITOR DISPLAYPORT KVM SWITCH, RS232 SERIAL CONTROL, 4K 60HZ, 2X USB 5GBPS HUB PORTS, 2X USB 2.0 HID PORTS, TAA COMPLIANT
111 in stock, ready to ship

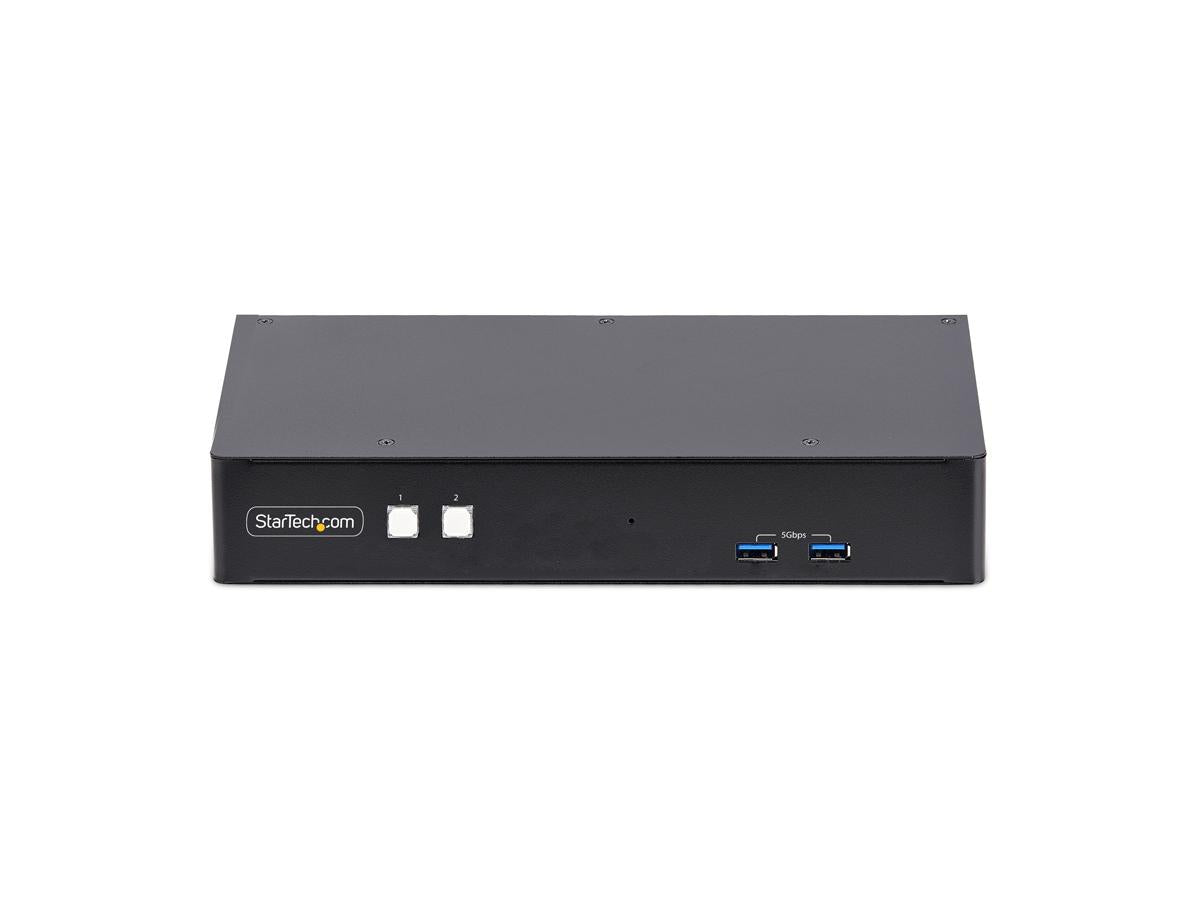

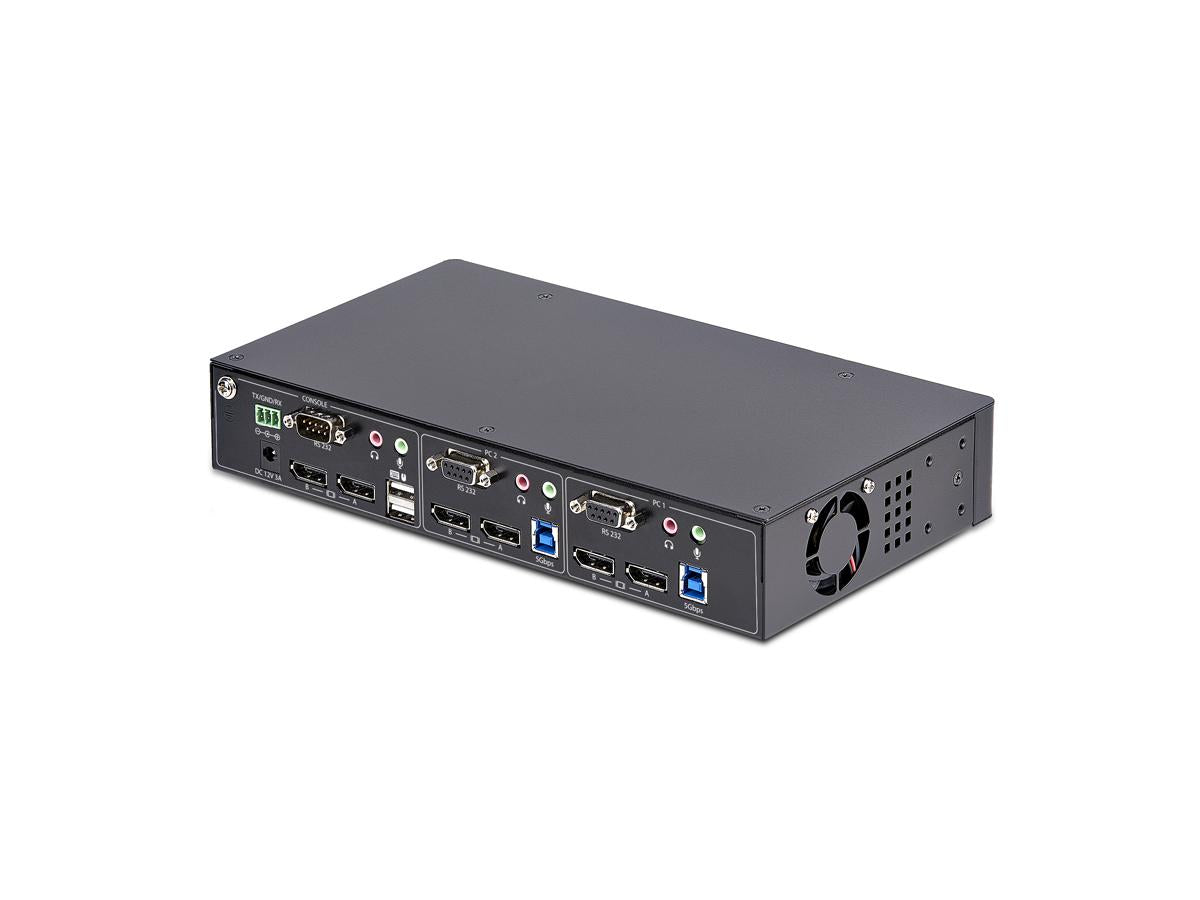

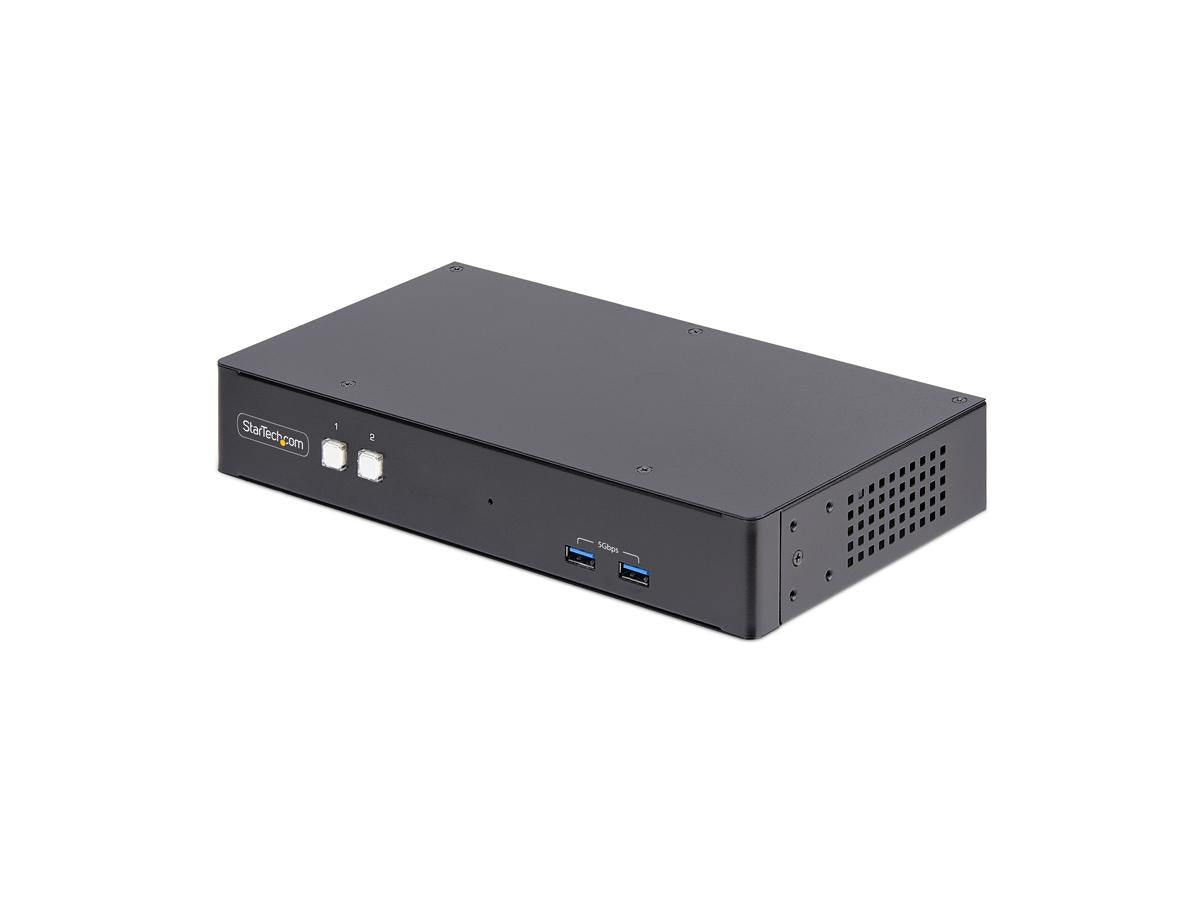

StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switching, TAA Compliant - Includes 2x DP and USB Host Cables (P2DD46A22-KVM-SWITCH) - KVM / audio / USB switch - 2 x KVM / audio / USB - 1 local user - desktop - TAA Compliant
Product Specifications
| Primary Information | |
|---|---|
| Product Description | StarTech.com 2-Port Dual-Monitor DisplayPort KVM Switch, RS232 Serial Control, 4K 60Hz, 2x USB 5Gbps Hub Ports, 2x USB 2.0 HID Ports, Hotkey/Pushbutton Switching, TAA Compliant - Includes 2x DP and USB Host Cables (P2DD46A22-KVM-SWITCH) - KVM / audio / USB switch - 2 ports - TAA Compliant |
| Device Type | KVM / audio / USB switch - 2 ports |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Users Qty | 1 local user |
| Features | On-Screen Display, reset button, MST support, steel housing, 2.1 channel audio support, hotkeys |
| Compliant Standards | USB 2.0, USB 3.2 Gen 1 |
| Power | AC 100-240 V 1 A |
| Dimensions (WxDxH) | 10 in x 5.1 in x 1.6 in |
| Weight | 2.43 lbs |
| Color | Black |
| TAA Compliant | Yes |
| Manufacturer Warranty | 2-year warranty |
| General | |
| Device Type | KVM / audio / USB switch - 2 ports |
| Enclosure Type | Desktop |
| Subtype | KVM |
| Ports | 2 x KVM / audio / USB |
| KVM Local Users Qty | 1 local user |
| Keyboard / Mouse Interface | USB |
| Max Resolution | 3840 x 2160 @ 60 Hz |
| Features | On-Screen Display, reset button, MST support, steel housing, 2.1 channel audio support, hotkeys, Auto Scan mode |
| Compliant Standards | USB 2.0, USB 3.2 Gen 1 |
| Status Indicators | Port status |
| Expansion / Connectivity | |

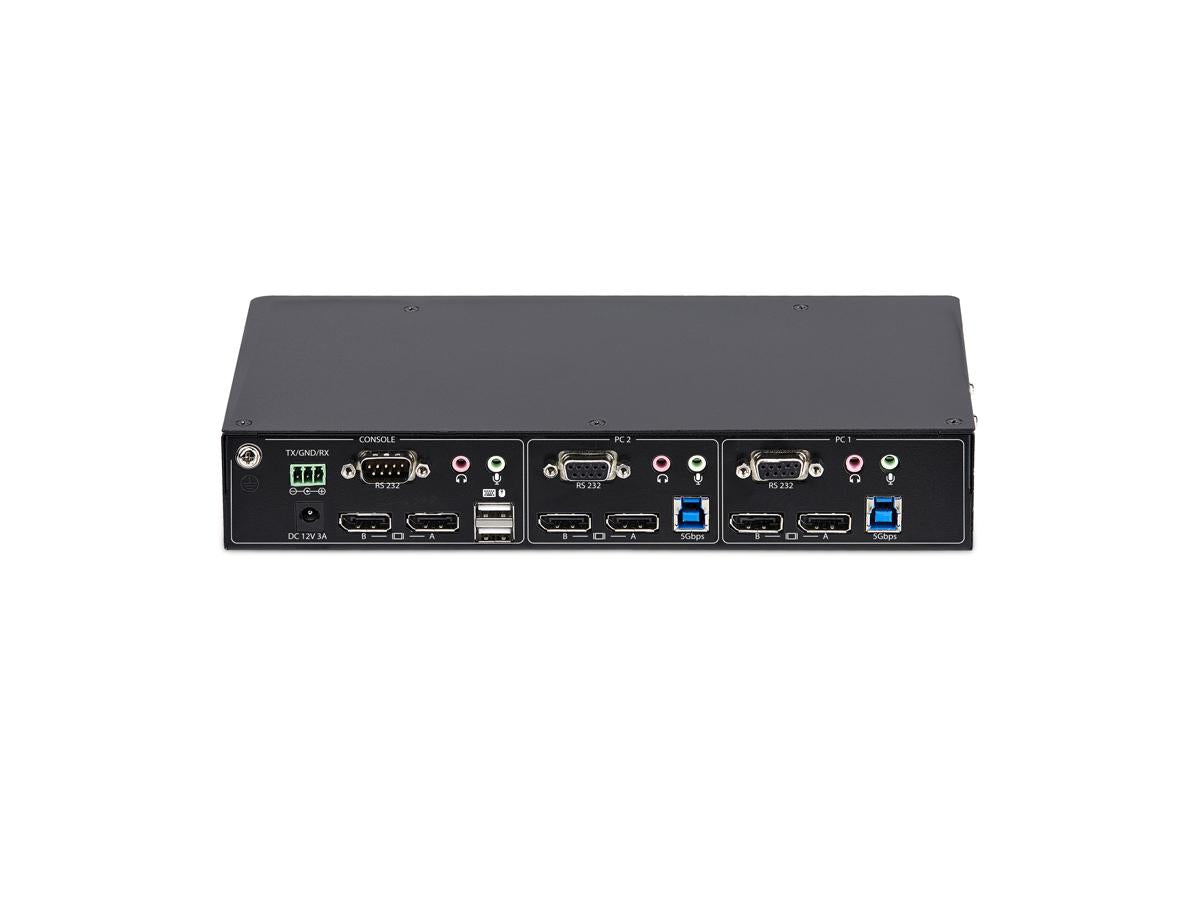

| Interfaces | 2 x DisplayPort output console ¦ 2 x USB 2.0 Type A ¦ 2 x USB 3.2 Gen 1 Type A ¦ 1 x headphones mini-jack console ¦ 1 x microphone mini-jack console ¦ 1 x serial (RS-232) DB-9 male ¦ 1 x serial 3 pin terminal block ¦ 4 x DisplayPort input ¦ 2 x USB 3.2 Gen 1 Type B ¦ 2 x headphones mini-jack ¦ 2 x microphone mini-jack ¦ 2 x serial (RS-232) DB-9 female |
| Power | |
| Power Device | External power adapter |
| Power Provided | DC 12 V - 3 A |
| Voltage Required | AC 100-240 V |
| Electric Current Required | 1 A |
| Miscellaneous | |
| Color | Black |
| Cables Included | 2 x DisplayPort cable ¦ 2 x USB-A to USB-B cable |
| MTBF | 80,907 hours |
| Compliant Standards | FCC Part 15, RoHS, WEEE, DisplayPort 1.2 |
| TAA Compliant | Yes |
| Dimensions & Weight | |
| Width | 10 in |
| Depth | 5.1 in |
| Height | 1.6 in |
| Weight | 2.43 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13 in |
| Shipping Depth | 9.7 in |
| Shipping Height | 6.9 in |
| Shipping Weight | 4.63 lbs |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 2 years |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 90% RH (non-condensing) |
| Min Storage Temperature | -4 °F |
| Max Storage Temperature | 140 °F |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 43211604 |
