Warranty: 4-year warranty

OPENGEAR

UPC:
UNSPSC: 43222500
MFG: OM2224-24E-10G-L-C14

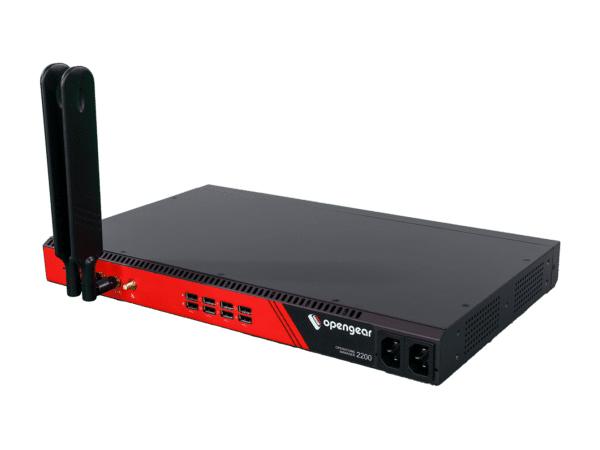

OPENGEAR MODEL OM2224-24-10G, 24 SELECTABLE SERIAL PORTS + 24X 1GBE SWITCH, X86 4-CORE CPU, 8G RAM, 64G SSD

$11,314.30 $10,285.73 Save 9% Sold out
Out of stock

Opengear OM2224-24E-10G-L - Console server - 24 ports - RS-232, 10GbE - 3G, 4G - HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9 - 1U - rack-mountable
Product Specifications
Primary Information
Product Description Opengear OM2224-24E-10G-L - console server
Device Type Console server
Form Factor Rack-mountable - 1U
Processor 1 x AMD GX-412TC 1.4 GHz
RAM 8 GB
Flash Memory 16 MB
Hard Drive 64 GB x 1 - SATA 6Gb/s
Ports Qty 24
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet
Mobile Broadband Access Yes
Generation 3G, 4G
Cellular Protocol LTE Advanced Pro
Cellular Band HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Included Accessories Rack mount kit, 2 power cords (C13 to C14), 2 x cellular antennas
Dimensions (WxDxH) 17.3 in x 10.2 in x 1.8 in
Weight 7.72 lbs
Manufacturer Warranty 4-year warranty
General
Device Type Console server
Height (Rack Units) 1U
Built-in Devices 24-port switch
Width 17.3 in
Depth 10.2 in
Height 1.8 in
Weight 7.72 lbs
Processor / Memory / Storage
Processors Installed 1 x AMD GX-412TC 1.4 GHz
Max Supported Qty 1
RAM 8 GB DDR3 SDRAM
Flash Memory 16 MB
Hard Drive SSD 64 GB x 1 - SATA 6Gb/s - M.2
Networking
Form Factor Rack-mountable
Ports Qty 24
Connectivity Technology Wired
Data Transfer Rate 230.4 Kbps
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet, RS-232, 10 Gigabit Ethernet
Network / Transport Protocol IPSec, OpenVPN
Remote Management Protocol SNMP
Features Firewall protection, Management Information Base (MIB), Authentication, Authorization and Accounting (AAA), Python runtime, secure boot, Trusted Platform Module 2.0 (TPM 2.0), Smart Out-of-Band, Quad-core CPU, Docker Support, passive cooling
Authentication Method Kerberos, Secure Shell (SSH), RADIUS, TACACS+, LDAP, Active Directory
Communications
Mobile Broadband Access Yes
Generation 3G, 4G
Cellular Protocol LTE Advanced Pro
Cellular Band HSPA+ B1/B19/B2/B3/B4/B5/B6/B8/B9 / LTE B1/B12/B13/B18/B19/B2/B20/B26/B28/B29/B3/B30/B32/B4/B41/B42/B43/B46/B48/B5/B66/B7/B8/B9
Expansion / Connectivity
Interfaces 2 x 1000Base-T - RJ-45/SFP ¦ 1 x console - RJ-45 ¦ 24 x RS-232 - RJ-45 ¦ 24 x 1000Base-T - RJ-45 ¦ 3 x antenna - SMA ¦ 2 x 10 Gigabit Ethernet - SFP+
Miscellaneous
Included Accessories Rack mount kit, 2 power cords (C13 to C14), 2 x cellular antennas
Cables Included 1 x network cable - 6 ft ¦ 1 x crossover cable
MTBF 100,000 hour(s)
Compliant Standards EN 61000-4-2, IC, FCC, PTCRB, GCF, NCC, EN 61000-3-3:2013, EN 61000-3-2:2014, EN 61000-4-5:2014, JRF, IEC/EN60950-1:2006 +A11:2009 +A1:2010 +A12:2011 +A2:2013, JPA, EN 55032:2015 Class A, IEC 60950-1:2005 (ed.2)+A1:2009+A2:2013, EN 61000-4-6:2008, EN 61000-4-3:2006+A1:2006+A2:2010, EN 61000-4-4:2007, EN 61000-4-8:2009, EN 61000-4-11:2010, EN 61000-4-28:2010
Power
Power Device Internal power supply
Installed Qty 2
Max Supported Qty 2
Manufacturer Warranty
Service & Support Limited warranty - 4 years ¦ Technical support - 4 years
Environmental Parameters
Min Operating Temperature 41 °F
Max Operating Temperature 122 °F
Humidity Range Operating 5 - 90%
Special Feature
COO UNITED STATES
UNSPSC Code
UNSPSC Code 43222500
Warehouse Availability
# Warehouse Location Available Quantity Status
1 Dartmouth,NS 0 No Stock
2 Guelph,ON 0 No Stock
3 Calgary,AB 0 No Stock
4 MFG Drop Shipped 0 No Stock
5 Mississauga,ON 0 No Stock
6 Richmond,BC 0 No Stock
