ATEN
UPC:
672792013157
UNSPSC:
43211604
MFG:
CM1942

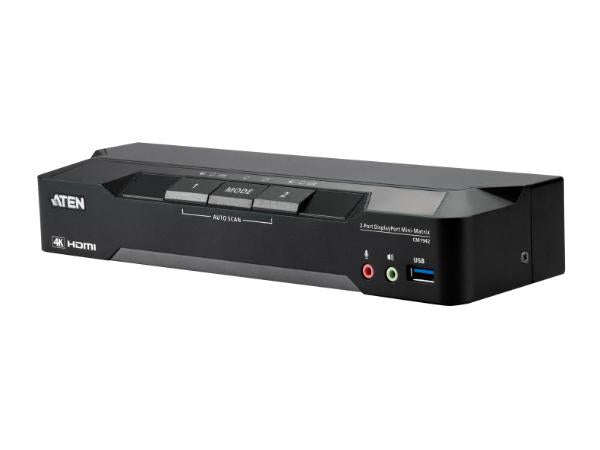

ATEN 2-PORT 4K DISPLAYPORT DUAL DISPLAY MINI-MATRIX BOUNDLESS KVM SWITCH
Out of stock
ATEN 2-PORT 4K DISPLAYPORT DUAL DISPLAY MINI-MATRIX BOUNDLESS KVM SWITCH
Product Specifications
| Primary Information | |
|---|---|
| Device Type | KVM Switch |
| Networking / Ports Qty | 2 |
| Interfaces | 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front; 1 x rear); 1 x 2.5mm Audio Jack Female; 1 x DC Jack; HDMI; DisplayPort |
| Connections | Console Ports: 2 x USB Type A Female; 2 x HDMI Female (Black); 2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear); 2 x 3.5mm Audio Jack Female (Pink; 1 x front, 1 x rear); KVM (Computer) Ports: 2 x USB3.1 Gen1 Type B Female (Blue); 4 x DisplayPort Female (Black); 2 x 3.5mm Audio Jack Female (Green); 2 x 3.5mm Audio Jack Female (Pink); |
| Max Resolution (external) | 4096 x 2160 @ 60Hz |
| Max Monitors Supported | Single PC Mode allows content of the PC with current KVM focus to be displayed over both monitors; Dual PC Mode allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus |
| Data Link Protocol | Fast Ethernet |
| Width | 2.83 Inch |
| Depth | 1.67 Inch |
| Height | 10.24 Inch |
| Features | One dual-view USB / HDMI console controls two DisplayPort computers and two USB 3.1 Gen 1 peripherals; Two PC Operation Modes: - Single PC Mode allows content of the PC with current KVM focus to be displayed over both monitors; - Dual PC Mode allows content of two PCs to be displayed separately on two monitors regardless of the KVM focus; Supports superior video quality resolutions up to 4K DCI (4096 x 2160 @ 60 Hz); Boundless Switching allows the mouse cursor to move across screen borders for quick switching between video sources |
| Special Feature | |
| COO | TAIWAN |
| UNSPSC Code | |
| UNSPSC Code | 43211604 |
Warehouse Availability
| # | Warehouse Location | Available Quantity | Status |
|---|---|---|---|
| 1 | Guelph,ON | 0 | No Stock |
| 2 | MFG Drop Shipped | 0 | No Stock |
