Warranty: 3-year warranty

Tripp

UPC: 037332266705
UNSPSC: 43211503
MFG: U442AB-DOCK9

TRIPPLITE USB-C DOCK 3 DISPLAYS 4K ANTIBACTERIAL

$961.98 $874.53 Save 9% Sold out
Out of stock

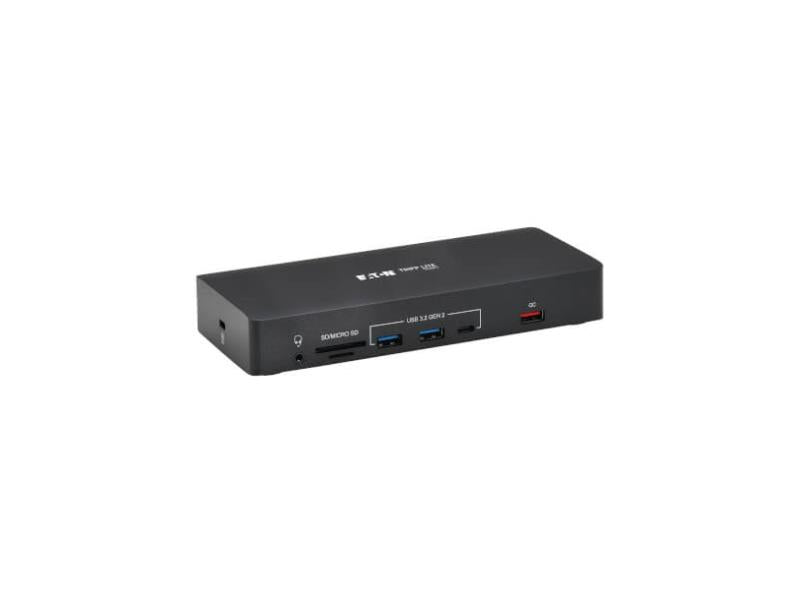

Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K 60 Hz HDMI/DisplayPort, VGA, USB 3.2 Gen 2, USB Hub, Gigabit Ethernet, 100W PD Charging, Antibacterial - Docking station - USB-C 3.2 Gen 2 / Thunderbolt 3 - 2 x HDMI, DP, VGA - 1GbE - 120 Watt - North America
Product Specifications
Primary Information
Product Description Eaton Tripp Lite Series Safe-IT USB-C Dock, Triple Display - 4K 60 Hz HDMI/DisplayPort, VGA, USB 3.2 Gen 2, USB Hub, Gigabit Ethernet, 100W PD Charging, Antibacterial - docking station - USB-C 3.2 Gen 2 / Thunderbolt 3 - 2 x HDMI, DP, VGA - 1GbE
Product Type Docking station
Docking Interface USB-C 3.2 Gen 2 / Thunderbolt 3
Video Interfaces 2 x HDMI, DP, VGA
Dimensions (WxDxH) 7.3 in x 3.1 in x 1.2 in
Weight 11.99 oz
Color Black
Localization North America
Networking Gigabit Ethernet
Power Power adapter AC 100-240 V (50/60 Hz) 120 Watt Power Provided (DC 20.5 V)
Manufacturer Warranty 3-year warranty
Designed For P/N: M101AB-004-LMCW, U420-05M-G2, U521-1P0M-WH, U521-1P0M-WH20G, U521-1P2M-BK
General
Product Type Docking station
Width 7.3 in
Depth 3.1 in
Height 1.2 in
Weight 11.99 oz
Enclosure Color Black
Localization North America
Video
Max Resolution Details 4096 x 2160 - 60 Hz (HDMI only) ¦ 3840 x 2160 - 60 Hz (DisplayPort only) ¦ 1920 x 1080 - 60 Hz (VGA only) ¦ 4K (Dual Display (DisplayPort + HDMI / 2 x HDMI))
Networking
Data Link Protocol Ethernet, Fast Ethernet, Gigabit Ethernet
Expansion / Connectivity
Expansion Slots 1 (total) / 1 (free) x SD Memory Card ¦ 1 (total) / 1 (free) x microSD
Interfaces 1 x USB-C with Power Delivery 3.0 (100 W) - 24 pin USB-C ¦ 1 x USB-C (host) - 24 pin USB-C ¦ 2 x display / video - HDMI - 19 pin HDMI Type A ¦ 1 x display / video - DisplayPort - 20 pin DisplayPort ¦ 1 x display / video - VGA - 15 pin HD D-Sub (HD-15) ¦ 1 x network - 10Base-T/100Base-TX/1000Base-T - RJ-45 ¦ 2 x USB 2.0 - 4 pin USB Type A ¦ 1 x headphone/microphone combo jack - mini-phone stereo 3.5 mm ¦ 2 x USB 3.2 Gen 2 - 9 pin USB Type A ¦ 1 x USB-C 3.2 Gen 2 - 24 pin USB-C ¦ 1 x USB - 4 pin USB Type A (QC 3.0) ¦ 1 - RCA ¦ 1 - TOSLINK
Miscellaneous
Cables Included 1 x USB-C cable - 3.3 ft
Features Triple display support, antibacterial, Extended Mode, Mirror Mode, suspend mode support, 30-bit Deep Color, HDR support, 3D video support, 4:4:4 chroma subsampling, up to 16.2 GB/s bandwidth, DisplayPort Alt Mode, Display Stream Compression (DSC), 2 LED indicators, up to 100W power delivery, security lock slot (cable lock sold separately), ABS housing, SST (single-stream transport), MST (multi-stream transport), High Bit Rate 2 (HBR2), High Bit Rate 3 (HBR3)
Security Slot Type Kensington security slot
Compliant Standards DisplayPort 1.4, HDCP 1.4, HDCP 2.2, EDID compatible, USB Power Delivery 3.0, EN 55032, EN 55035, FCC Part 15 Class B, ICES, RoHS, FCC, WEEE, NOM
Power
Power Device Power adapter
Voltage Required AC 100-240 V (50/60 Hz)
Power Provided 120 Watt
Voltage Provided DC 20.5 V
Manufacturer Warranty
Service & Support Limited warranty - 3 years
Dimensions & Weight (Shipping)
Shipping Width 8.7 in
Shipping Depth 5.9 in
Shipping Height 2.8 in
Shipping Weight 2.69 lbs
Environmental Parameters
Min Operating Temperature 32 °F
Max Operating Temperature 113 °F
Compatibility Information
Designed For P/N: M101AB-004-LMCW, U420-05M-G2, U521-1P0M-WH, U521-1P0M-WH20G, U521-1P2M-BK
Special Feature
COO VIET NAM
UNSPSC Code
UNSPSC Code 43211503
